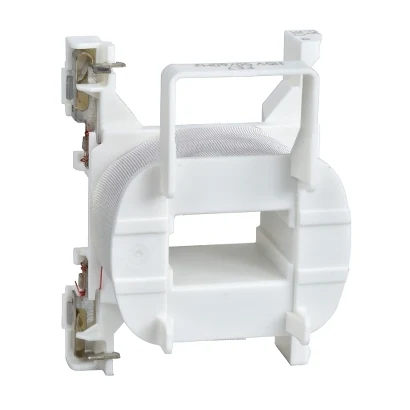

Schneider Electric LXD1V7 TeSys Deca Contactor Coil 9-38A 400VAC
- Brand: Schneider Electric
- SKU: LXD1V7
- MPN: LXD1V7
- Price: 1000.80 TRY + VAT · incl. VAT 1200.96 TRY
- Availability: Made to order
- Contactor Accessories
- Schneider Electric Contactor Accessories
- Selection guide: Contactor Accessories Selection Guide
- Schneider Electric LXD1V7 Teknik Veri Föyü (PDF)
Schneider Electric LXD1V7 TeSys Deca Contactor Coil 9-38A 400VAC. Technical specifications of this model: Coil Voltage: 400VAC Series: TeSys Deca
| Coil Voltage | 400 V AC |
|---|---|
| Series | TeSys Deca |
| Product Type | Kontaktör bobini |
| Control Circuit Type | AC @ 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 400 V AC 50/60 Hz |
| Average Resistance | 1633 Ohm @ 20 °C |
| Closed-Circuit Inductance | 60 H |
| Compatible Products | CAD; LC1DT20...DT40; LC1D09...D38 |
| Mechanical Endurance | 15 Mcycles |
| Maximum Operating Rate (cycles/h) | 3600 cyc/h @ <60 °C |
| Coil Technology | Yerleşik süpresör modülü olmadan |
| Control Circuit Voltage Limits | Düşme: 0,3…0,6 Uc at 50/60 Hz (at <60 °C); Çalışma: 0,8…1,1 Uc at 50 Hz (at <60 °C); Çalışma: 0,85…1,1 Uc at 60 Hz (at <60 °C) |
| Inrush Power (VA) | 70 VA 60 Hz cos phi 0,75 (at 20 °C); 70 VA 50 Hz cos phi 0,75 (at 20 °C) |
| Hold-in Power Consumption (VA) | 7,5 VA 60 Hz cos phi 0,3 (at 20 °C); 7 VA 50 Hz cos phi 0,3 (at 20 °C) |
| Heat Dissipation | 2…3 W @ 50/60 Hz |
| Operating Ambient Temperature | -5…60 °C |
| Product Weight | 0.07 kg |
