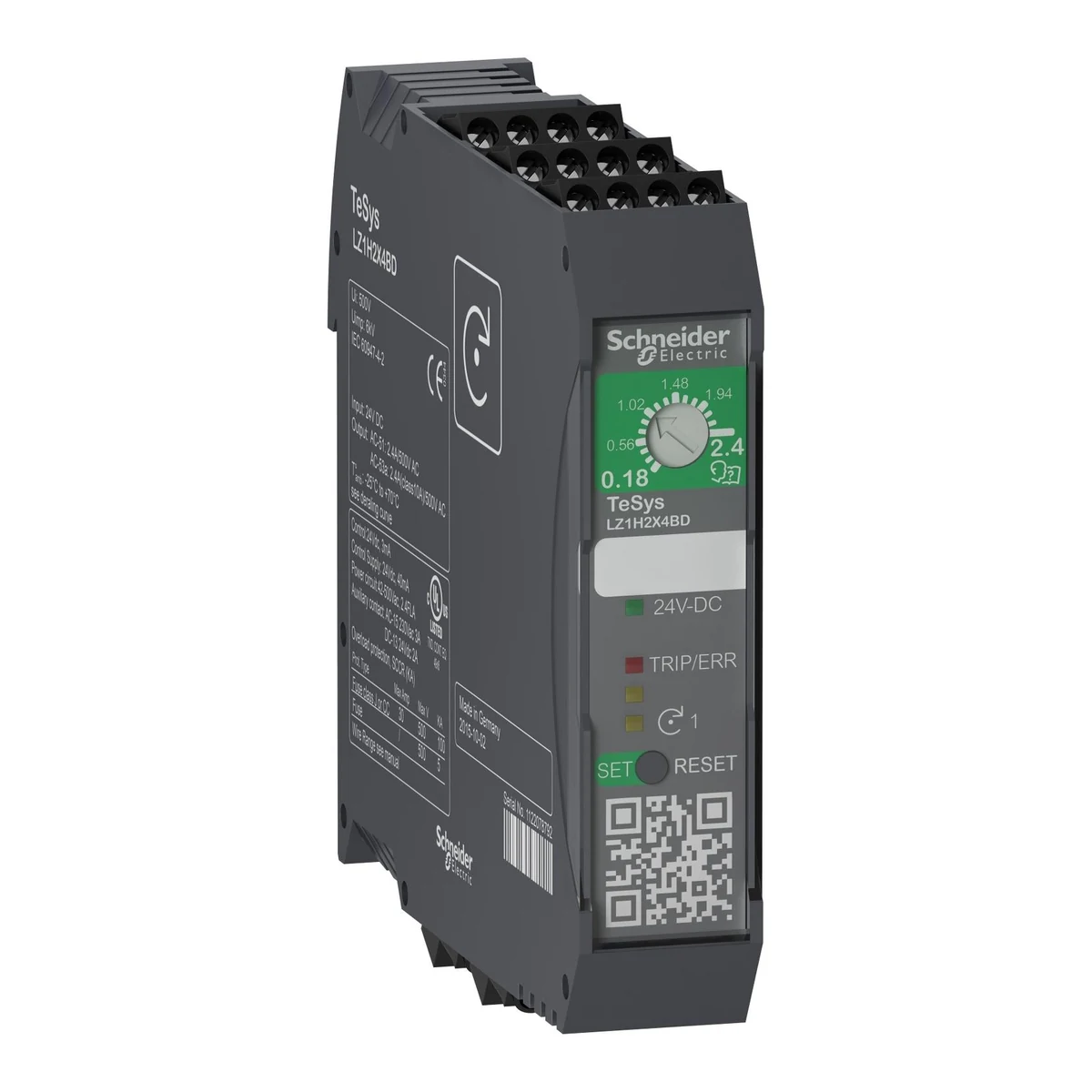

Schneider Electric LZ1H2X4BD TeSys H Direct-On-Line Starter 0.75kW 24VDC
- Brand: Schneider Electric
- SKU: LZ1H2X4BD
- MPN: LZ1H2X4BD
- Price: 21892.38 TRY + VAT · incl. VAT 26270.86 TRY
- Availability: Made to order
- Motor Starters
- Schneider Electric Motor Starters
- Selection guide: Motor Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LZ1H2X4BD Teknik Veri Föyü (PDF)
Schneider Electric LZ1H2X4BD TeSys H Direct-On-Line Starter 0.75kW 24VDC.
| Series | TeSys |
|---|---|
| Product Type | Ultra kompakt yolverici |
| Pole Arrangement | 3P |
| Rated Operational Voltage (Ue) | 500 V AC |
| Rated Operational Current (Ie) | 2,4 A @ 500 V AC-51; 2,4 A @ 500 V AC-53A; 2,4 A @ 500 V AC-51 yan yana montaj; 2,4 A @ 500 V AC-53A yan yana montaj |
| Thermal current setting range | 0.18–2.4 A |
| Motor Power (HP) | 0,5 hp @ 200 V AC; 0,5 hp @ 230 V AC; 1 hp @ 460 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Trip Class | Sınıf 10A (IEC 60947-4-2) |
| Auxiliary contact configuration | 1 K/A hata sinyalleme |
| Control Circuit Voltage Limits | 19.2…30 V DC |
| Current Consumption | <= 40 mA @ 24 V DC |
| Reset Type | Manuel; Otomatik sıfırlama; Elektrikli sıfırlama |
| Maximum Operating Rate (cycles/h) | 120 cyc/mn AC-51 50 %; 6 cyc/mn AC-53A 50 % |
| Mounting Type | Klipsle |
| Mounting Support | DIN rayı |
| Tightening Torque | 0,5…0,6 N.m düz Ø 2,5 mm screwdriver 3 mm |
| Standards | IEC 60947-4-2; UL 60947-4-1 |
| Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Pollution Degree | 2 |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Product Weight | 212 g |
| IP Rating | IP20 |
| Operating Ambient Temperature | -25…70 °C değer kaybı olmadan |
| Storage Temperature | -40…80 °C |
