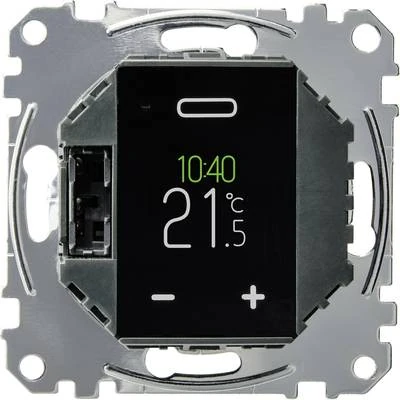

Schneider Electric MEG5776-0000 Merten, Programmable Touchscreen Thermostat Mechanism
- Brand: Schneider Electric
- SKU: MEG5776-0000
- MPN: MEG5776-0000
- Price: 12231.93 TRY + VAT · incl. VAT 14678.32 TRY
- Availability: Made to order
- Room and Floor Thermostats
- Schneider Electric Room and Floor Thermostats
- Selection guide: Room and Floor Thermostats Selection Guide: Technical Criteria & Application Standards
- Schneider Electric MEG5776-0000 Teknik Veri Föyü (PDF)
Schneider Electric MEG5776-0000 Merten, Programmable Touchscreen Thermostat Mechanism. Technical specifications of this model: Series: Merten System-D Mechanisms
| Series | Merten System-D Mekanizmalar |
|---|---|
| Product Type | Termostat |
| Device Presentation | Sabitleme çerçeveli mekanizma |
| Device Mounting | Flush-mounted |
| Fixing Method | Vidalarla |
| Device Application | Haftalık programlanabilir |
| Technology Type | Elektronik |
| Application | Isıtma |
| Measurement Accuracy | +/- 0,5 °C |
| Contact Arrangement | 1NO |
| Switch Function | 2 kutuplu |
| Rated Current (In) | 16 A (direnç loadü üzerinde load); 1 A (endüktif load üzerinde load) cos phi = 0,6 |
| Rated Operational Voltage (Ue) | 230 V |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Protection Type | Elektronik aşırı gerilim koruması; Aşırı ısınmaya karşı koruma |
| Associated Fuse Rating | 16 A |
| Operating Ambient Temperature | -10…35 °C |
| Electrical Endurance | 100000 cycles |
| Screw Head Shape | Eksi baş |
| Clamping Connection Capacity | 2 x 1.5…1 x 4 mm² |
| Cable Stripping Length | 10 mm |
| Displayed Information | °C cinsinden sıcaklık; Hour |
| Display Type | OLED Ekran |
| Display Resolution | 96x96 piksel |
| Relative Humidity | 0…95 % |
| Standards | EN 60730-2-9 |
| Certifications | SEMKO; VDE |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 51 mm |
| Flush Mounting Depth | 32 mm |
| Product Weight | 0.22 kg |
