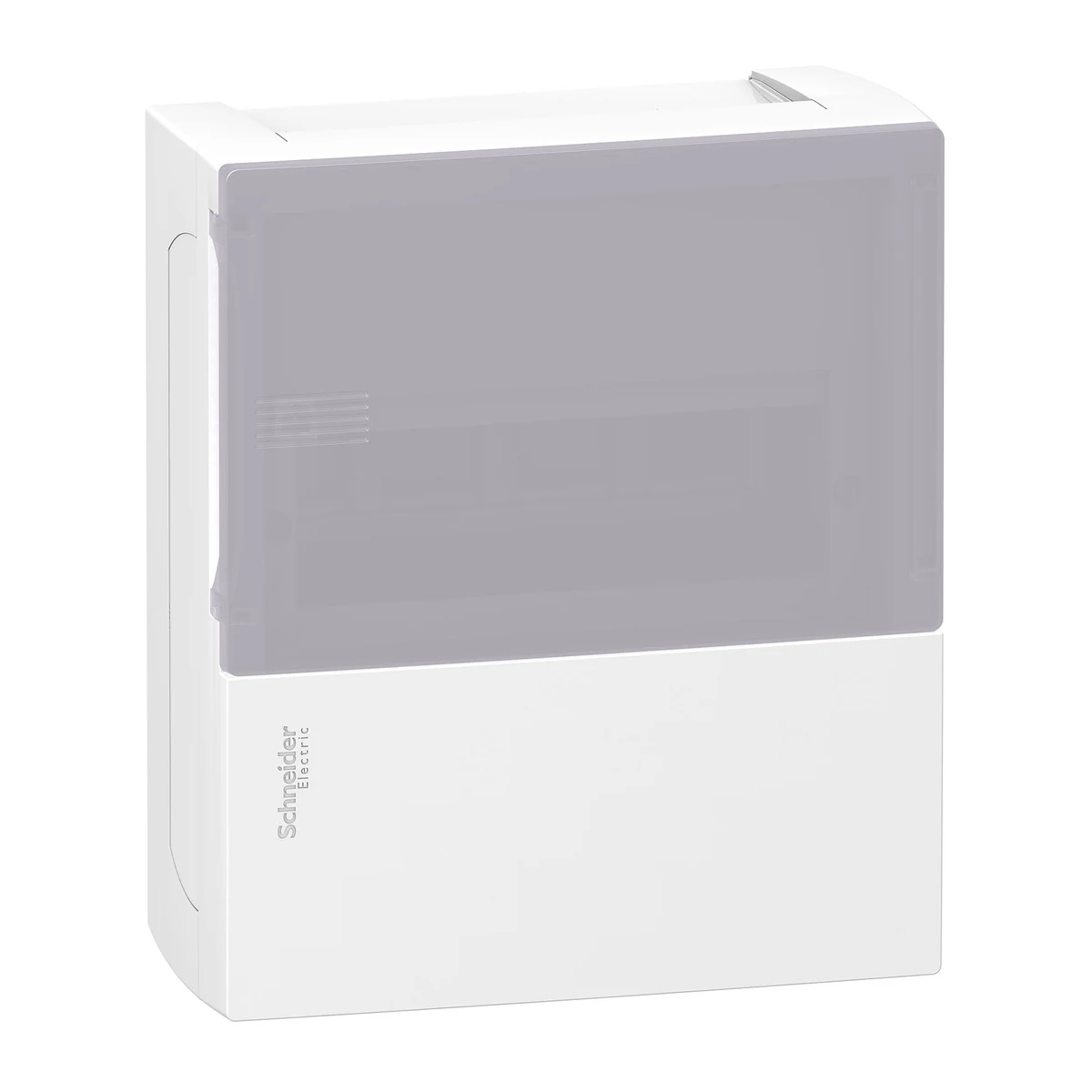

Schneider Electric MIP10108T Mini Pragma 8 module surface-mounted smoked cover
- Brand: Schneider Electric
- SKU: MIP10108T
- MPN: MIP10108T
- Price: 1456.71 TRY + VAT · incl. VAT 1748.05 TRY
- Availability: Made to order
- Transparent Cover MCB Panels
- Selection guide: Transparent Cover MCB Panels Selection Guide: Technical Criteria & Application Standards
- Schneider Electric MIP10108T Teknik Veri Föyü (PDF)
Schneider Electric MIP10108T Mini Pragma 8 module surface-mounted smoked cover. Technical specifications of this model: Series: Mini Pragma
| Series | Mini Pragma |
|---|---|
| Product Type | Muhafaza |
| Enclosure Construction | Modüler muhafaza |
| Number of 18 mm Modules per Row | 8 |
| Number of Horizontal Rows | 1 |
| Door Type | Yarı şeffaf |
| Width | Dış: 196 mm |
| Height | Dış: 198 mm |
| Depth | Dış : 101,5 mm |
| Enclosure Mounting | Yüzey |
| Number of 9 mm Pitches | 16 |
| Total Number of 18 mm Modules | 8 |
| Rated Current (In) | 63 A |
| Rail Type | 35 mm asimetrik ray |
| Mounting plate | Montaj plakası olmadan |
| Cable Entry | 1 çıplak flanş; 1 kanal flanşı |
| Terminal Block Function | None |
| Housing Material | Geri parça: teknoplastik; Kapı: teknoplastik; Ön yüz: teknoplastik |
| Interior Depth | 80 mm |
| Color | Ön yüz: beyaz (RAL 9003); Kapı: yarı şeffaf |
| Standards | IEC 60670-1; IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Kapı: 650 °C; Geri parça: 650 °C; Ön yüz: 650 °C |
| IP Rating | IP40 |
| IK Impact Protection | IK07 |
| Operating Ambient Temperature | -25…60 °C |
