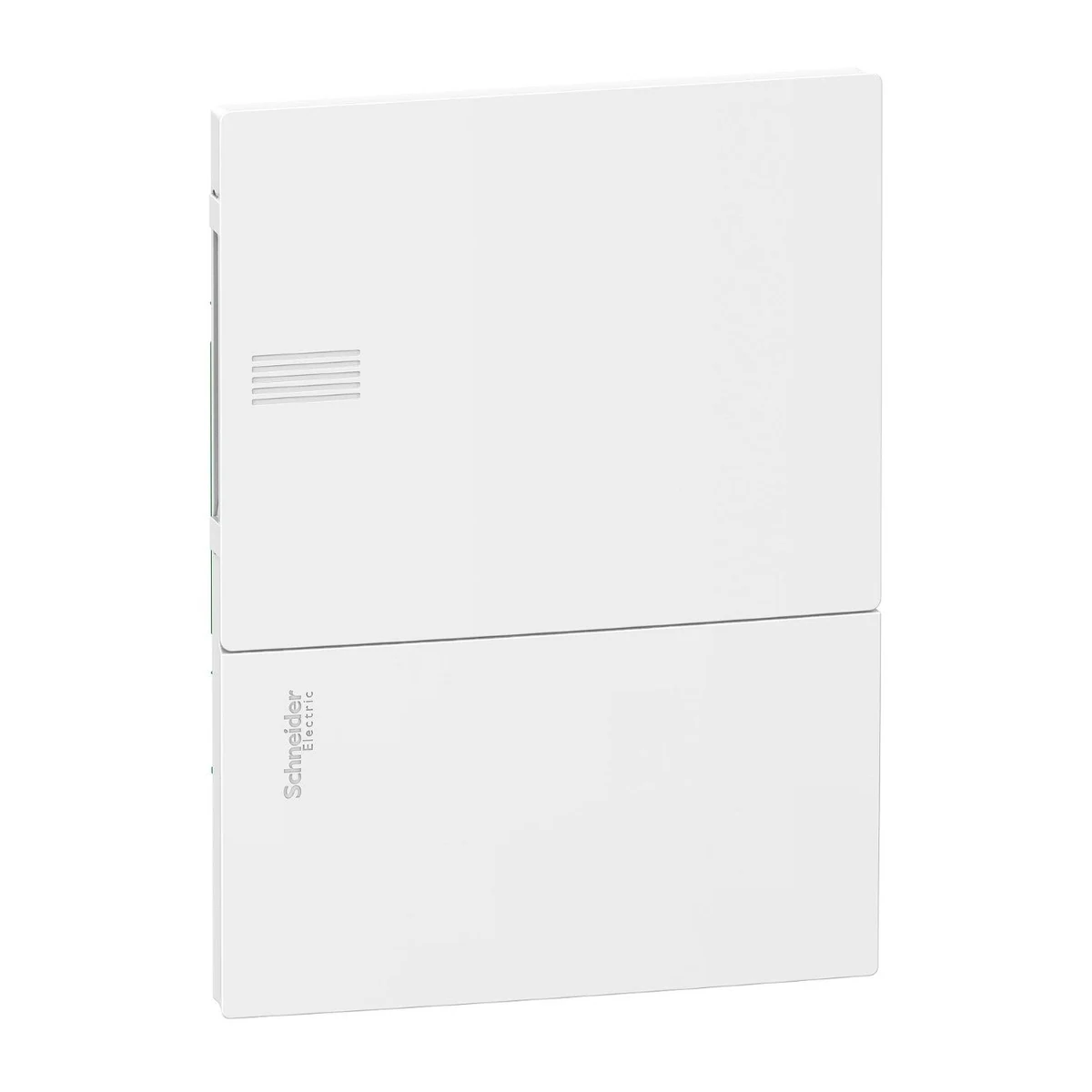

Schneider Electric MIP20106 Resi9 MP flush-mounted enclosure, 1 x 6 modules
- Brand: Schneider Electric
- SKU: MIP20106
- MPN: MIP20106
- Price: 1469.00 TRY + VAT · incl. VAT 1762.80 TRY
- Availability: Made to order
- Opaque Cover MCB Panels
- Schneider Electric Opaque Cover MCB Panels
- Selection guide: Opaque Cover MCB Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric MIP20106 Teknik Veri Föyü (PDF)
Schneider Electric MIP20106 Resi9 MP flush-mounted enclosure, 1 x 6 modules. Technical specifications of this model: Cover Type: Opaque Series: Mini Pragma
| Cover Type | Opak |
|---|---|
| Series | Mini Pragma |
| Product Type | Muhafaza |
| Enclosure Construction | Modüler muhafaza |
| Number of 18 mm Modules per Row | 6 |
| Number of Horizontal Rows | 1 |
| Door Type | Düz |
| Width | Duvar: 162 mm; Dış: 186 mm |
| Height | Duvar: 228 mm; Dış: 252 mm |
| Depth | Dış : 18 mm; Duvar : 80 mm; Toplam : 98 mm |
| Enclosure Mounting | Flush-mounted |
| Number of 9 mm Pitches | 12 |
| Total Number of 18 mm Modules | 6 |
| Rated Current (In) | 63 A |
| Rail Type | 35 mm asimetrik ray |
| Mounting plate | Montaj plakası olmadan |
| Cable Entry | Önceden kesilmiş delikler |
| Terminal Block Function | None |
| Housing Material | Geri parça: teknoplastik; Kapı: teknoplastik; Ön yüz: teknoplastik |
| Interior Depth | 76 mm |
| Color | Kapı: beyaz (RAL 9003); Ön yüz: beyaz (RAL 9003) |
| Standards | IEC 60670-1; IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Kapı: 650 °C; Geri parça: 650 °C; Ön yüz: 650 °C |
| IP Rating | IP40 |
| IK Impact Protection | IK07 |
| Operating Ambient Temperature | -25…60 °C |
