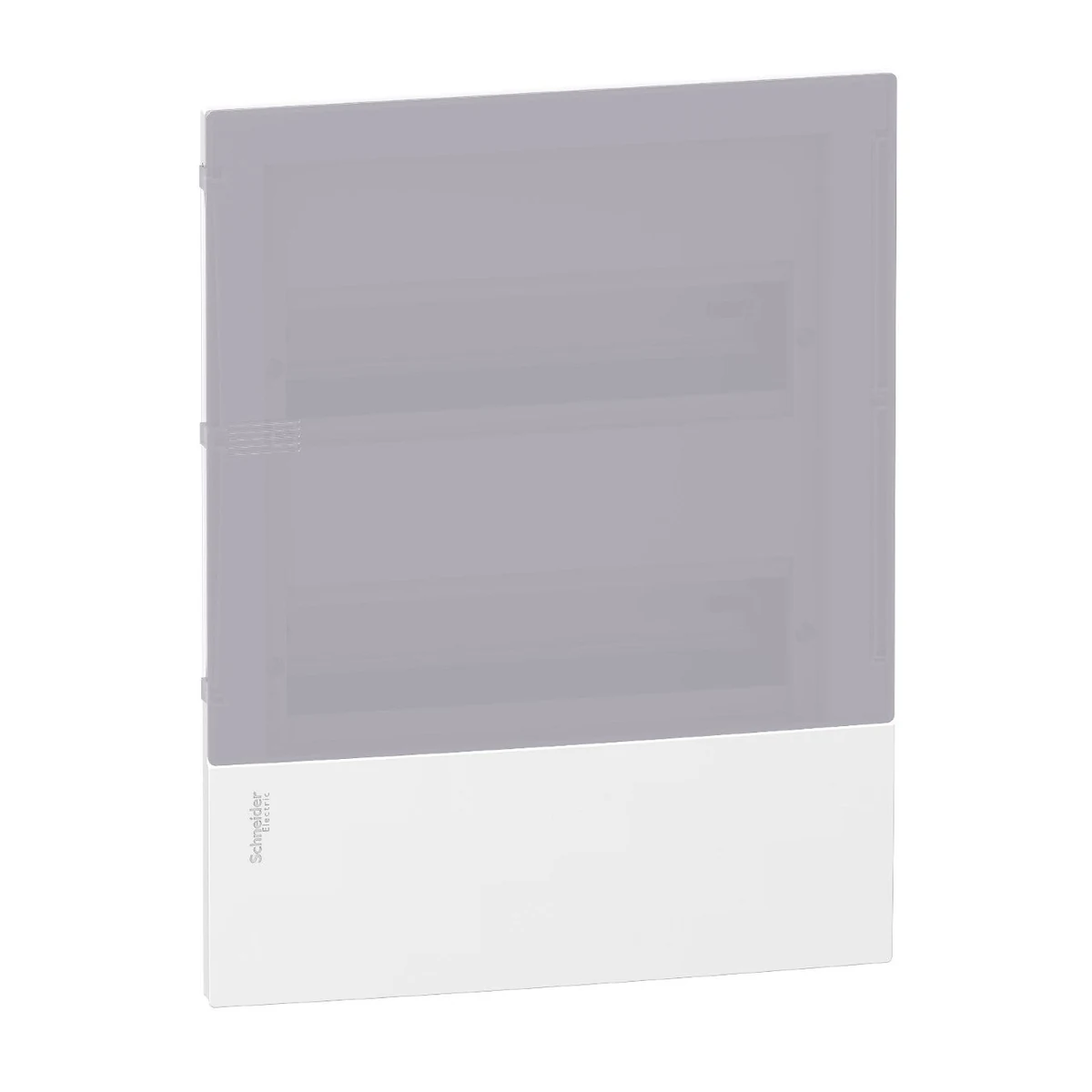

Schneider Electric MIP20212T Resi9 MP flush-mounted enclosure, 2 x 12 modules
- Brand: Schneider Electric
- SKU: MIP20212T
- MPN: MIP20212T
- Price: 3508.34 TRY + VAT · incl. VAT 4210.01 TRY
- Availability: Made to order
- Opaque Cover MCB Panels
- Schneider Electric Opaque Cover MCB Panels
- Selection guide: Opaque Cover MCB Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric MIP20212T Teknik Veri Föyü (PDF)
Schneider Electric MIP20212T Resi9 MP flush-mounted enclosure, 2 x 12 modules. Technical specifications of this model: Series: Mini Pragma
| Series | Mini Pragma |
|---|---|
| Product Type | Muhafaza |
| Enclosure Construction | Modüler muhafaza |
| Number of 18 mm Modules per Row | 12 |
| Number of Horizontal Rows | 2 |
| Door Type | Yarı şeffaf |
| Width | Duvar: 270 mm; Dış: 294 mm |
| Height | Duvar: 353 mm; Dış: 377 mm |
| Depth | Dış : 18 mm; Duvar : 80 mm; Toplam : 98 mm |
| Enclosure Mounting | Flush-mounted |
| Number of 9 mm Pitches | 24 |
| Total Number of 18 mm Modules | 24 |
| Rated Current (In) | 63 A |
| Rail Type | 35 mm asimetrik ray |
| Mounting plate | Montaj plakası olmadan |
| Cable Entry | Önceden kesilmiş delikler |
| Terminal Block Function | None |
| Housing Material | Geri parça: teknoplastik; Kapı: teknoplastik; Ön yüz: teknoplastik |
| Interior Depth | 76 mm |
| Color | Ön yüz: beyaz (RAL 9003); Kapı: yarı şeffaf |
| Standards | IEC 60670-1; IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Kapı: 650 °C; Geri parça: 650 °C; Ön yüz: 650 °C |
| IP Rating | IP40 |
| IK Impact Protection | IK07 |
| Operating Ambient Temperature | -25…60 °C |
