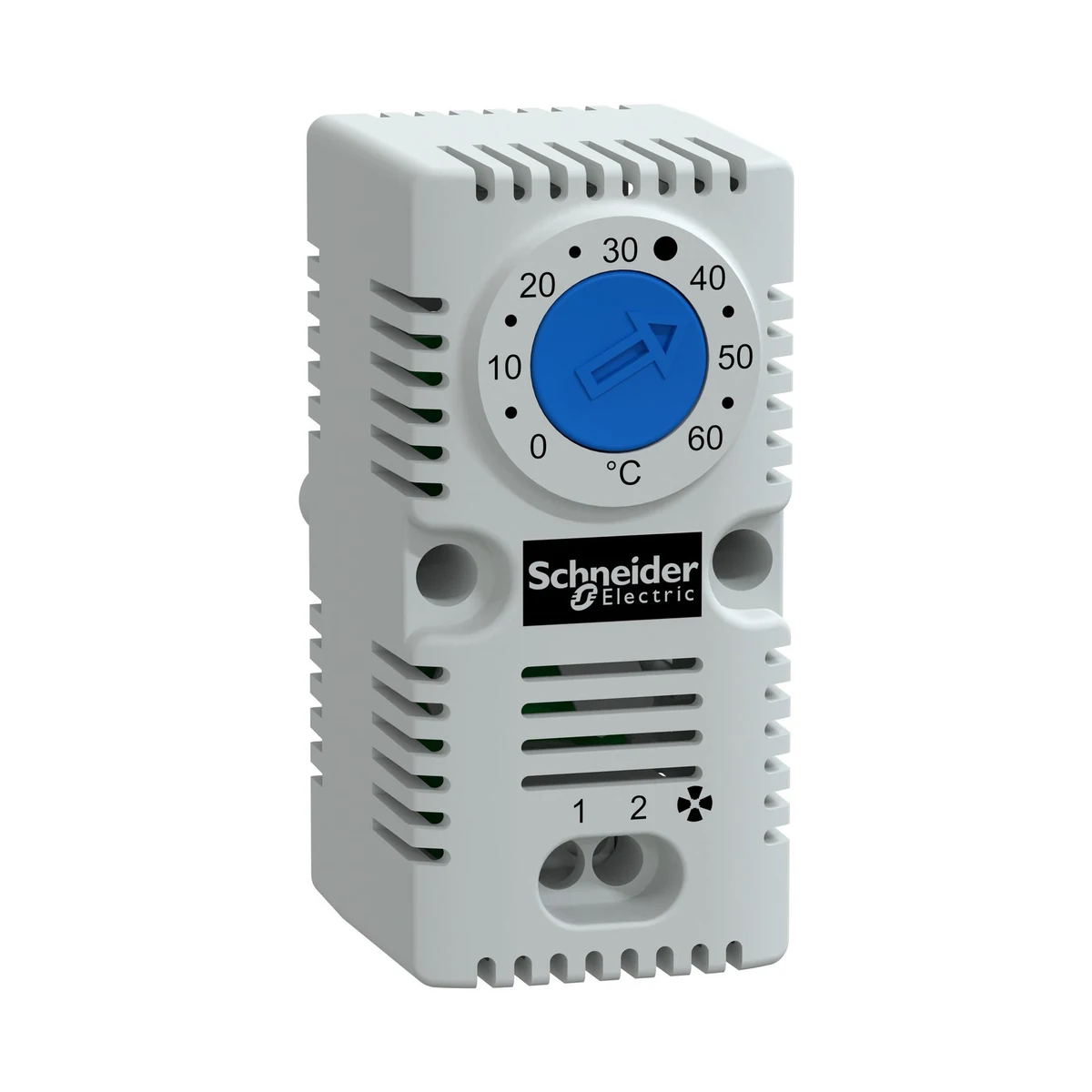

Schneider Electric NSYCCOTHO Basic Thermostat (NO Contact - Fan) Blue (oC)
- Brand: Schneider Electric
- SKU: NSYCCOTHO
- MPN: NSYCCOTHO
- Price: 1178.71 TRY + VAT · incl. VAT 1414.45 TRY
- Availability: Made to order
- Cooling Thermostats
- Selection guide: Panel Thermostats Selection Guide: Technical Criteria and Engineering Practice
Schneider Electric NSYCCOTHO Basic Thermostat (NO Contact - Fan) Blue (oC). Technical specifications of this model: Displayed Information: Temperature in °C Flame Retardancy: SELF-EXTINGUISHING CONFORMING TO UL94 (MATERIAL V0) Input Voltage: 240 V Number of Outputs: 1 VENTILATION FUNCTION Product Weight: 40 g Manufacturer Certificate Declaration: UL Product Family: ClimaSys PVC-Free Declaration: Yes Silicone-Free Declaration: Yes Temperature Setting Range: 0…60 °C Operating Ambient Temperature: -20…80 °C Contact Type and Arrangement: None Toxic Heavy Metal-Free Declaration: ✓ Cycle Life: 100000 CYCLES Width: EXTERNAL: 33 mm Material: PC Mounting Location: 35 mm DIN rail; On mounting plate; Cross rails; Special upright Hysteresis: 7 K +/- 0.4K Color: Light gray Height: EXTERNAL: 68 mm Product Type: SIMPLE THERMOSTAT Electrical Connection: 4 terminals, clamping capacity: 2.5 mm² Mounting Style: CLIPPED IP Rating: IP20 Depth: EXTERNAL : 44 mm Manufacturer Product Name: CLIMASYS CC Sensor Type: BIMETAL
| Displayed Information | Sıcaklık °C cinsinden |
|---|---|
| Flame Retardancy | SELF-EXTINGUISHING CONFORMING TO UL94 (MATERIAL V0) |
| Input Voltage | 240 V |
| Number of Outputs | 1 VENTILATION FUNCTION |
| Product Weight | 40 g |
| Manufacturer Certificate Declaration | UL |
| Product Family | ClimaSys |
| PVC-Free Declaration | Yes |
| Silicone-Free Declaration | Yes |
| Temperature Setting Range | 0…60 °C |
| Operating Ambient Temperature | -20…80 °C |
| Contact Type and Arrangement | None |
| Toxic Heavy Metal-Free Declaration | ✓ |
| Cycle Life | 100000 CYCLES |
| Width | EXTERNAL: 33 mm |
| Material | PC |
| Mounting location | 35 mm DIN ray; Montaj plakası üzerinde; Çapraz raylar; Özel dikme |
| Hysteresis | 7 K +/- 0.4K |
| Color | Açık Grey |
| Height | EXTERNAL: 68 mm |
| Product Type | SIMPLE THERMOSTAT |
| Electrical Connection | 4 terminal, sıkma kapasitesi: 2.5 mm² |
| Mounting Style | CLIPPED |
| IP Rating | IP20 |
| Depth | EXTERNAL : 44 mm |
| Manufacturer Product Name | CLIMASYS CC |
| Sensor Type | BIMETAL |
