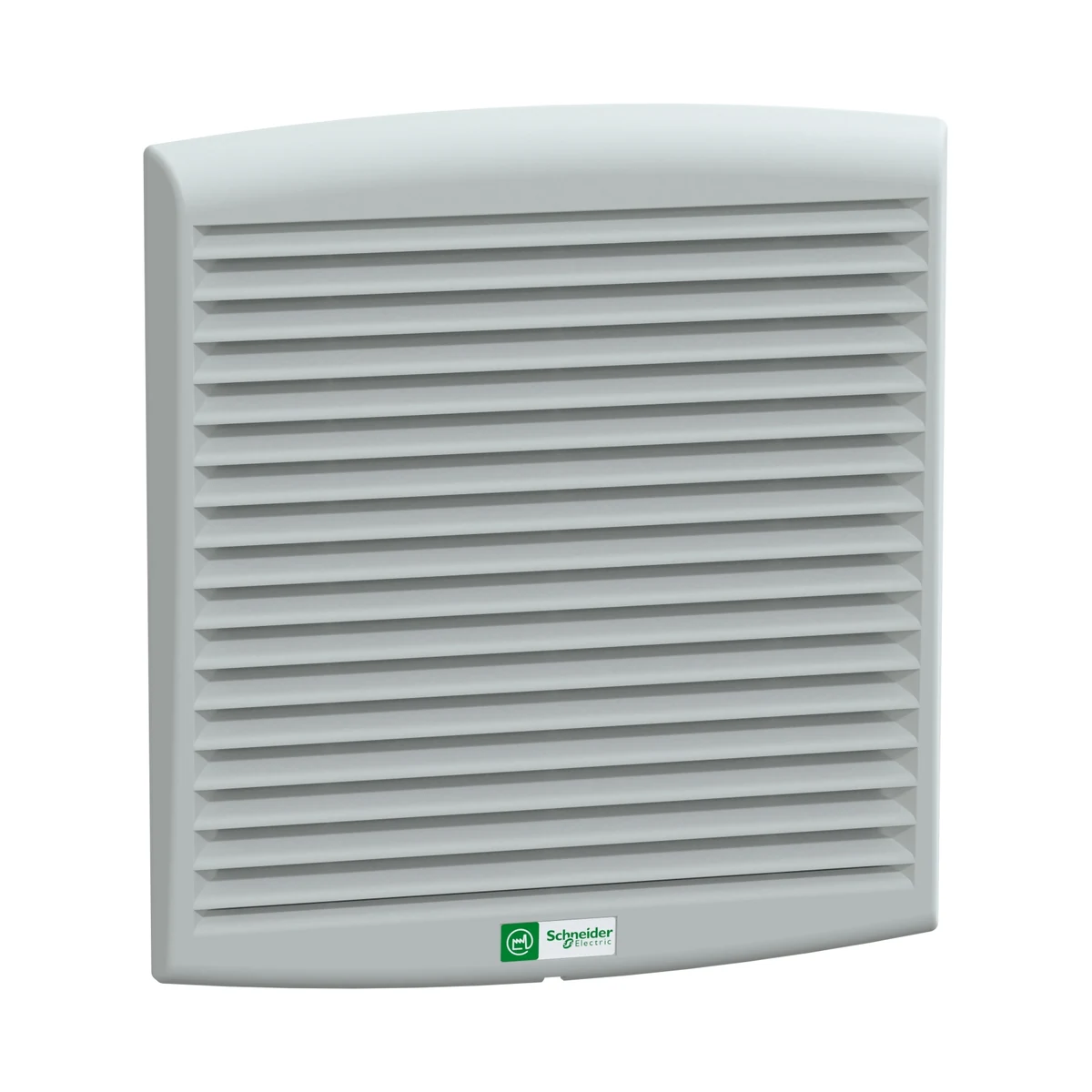

Schneider Electric NSYCVF165M230PF Fan + Filter 165m3/h 230V IP54 223x223
- Brand: Schneider Electric
- SKU: NSYCVF165M230PF
- MPN: NSYCVF165M230PF
- Price: 6616.36 TRY + VAT · incl. VAT 7939.63 TRY
- Availability: Made to order
- Fan Filters
- Schneider Electric Fan Filters
- Selection guide: Fan Filters Selection Guide: Technical Criteria & Application Standards
- Schneider Electric NSYCVF165M230PF Teknik Veri Föyü (PDF)
Schneider Electric NSYCVF165M230PF Fan + Filter 165m3/h 230V IP54 223x223. Technical specifications of this model: IP Rating: IP54
| IP Rating | IP54 |
|---|---|
| Series | ClimaSys |
| Product Type | Fan |
| Rated Control Supply Voltage (Us) | 175–253 V |
| Input Voltage | 230 V 50/60 Hz |
| Rated Current (In) | 0,12 A 50 Hz; 0,94 A 60 Hz |
| Height | Harici: 268 mm |
| Width | Harici: 248 mm |
| Depth | Harici : 104 mm |
| Product Weight | 1.14 kg |
| Material | Çıkış ızgarası: enjeksiyonlu termoplastik (ASA PC) |
| Color | Çıkış ızgarası: gri (RAL 7035) |
| Operating Ambient Temperature | -20…60 °C |
| Storage Temperature | -40…70 °C |
| Connection Terminals | Faston konnektör |
| Device Arrangement | 1 eksenel motor; 2 koruyucu ızgara: ön ve arka yüzeyler üzerinde; 1 filtre: eksenel motorun önü; 1 çıkış ızgarası: ön; 1 kesim şablonu; 1 güç kablosu |
