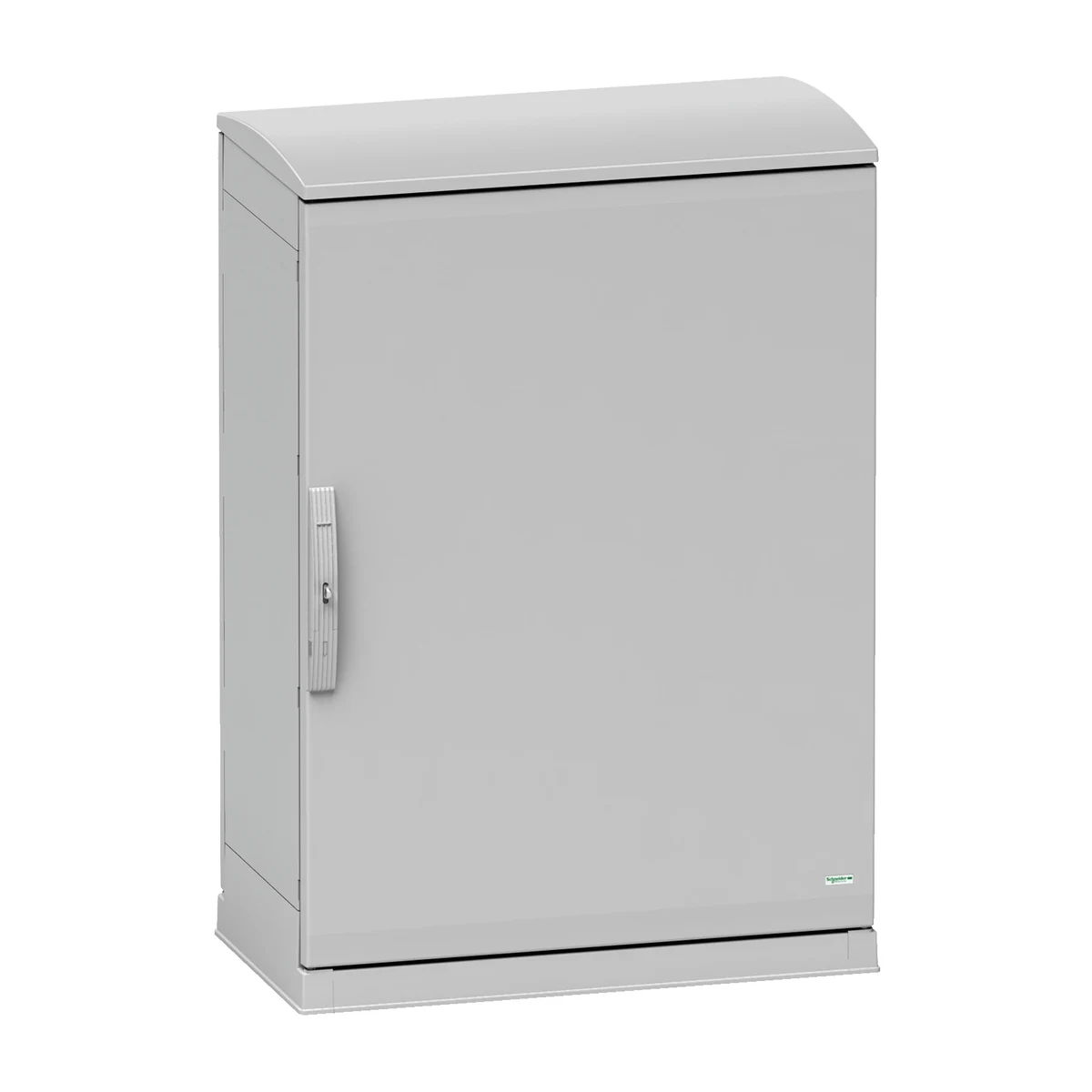

Schneider Electric NSYPHDZT2074P Outdoor HD enclosure 2000x750x420mm polycarbonate
- Brand: Schneider Electric
- SKU: NSYPHDZT2074P
- MPN: NSYPHDZT2074P
- Price: 238355.91 TRY + VAT · incl. VAT 286027.09 TRY
- Availability: Made to order
- Opaque Cover Plastic Panels
- Schneider Electric Opaque Cover Plastic Panels
- Selection guide: Opaque Cover Plastic Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NSYPHDZT2074P Teknik Veri Föyü (PDF)
Schneider Electric NSYPHDZT2074P Outdoor HD enclosure 2000x750x420mm polycarbonate. Technical specifications of this model: Housing Material: Polycarbonate Housing Dimensions: 2000x750x420mm
| Housing Material | Polikarbonat |
|---|---|
| Housing Dimensions | 2000x750x420mm |
| Series | PanelSeT |
| Enclosure Mounting | Zemin |
| Material | Cam elyafla çift takviyeli polyester |
| Color | Grey (RAL 7035) |
| Standards | UL 508 A; IEC 61439-5; IEC 62208; IEC 61969-3 |
| Insulation Class | Sınıf II (IEC 61439-1 2011) |
| IP Rating | IP55 |
| IK Impact Protection | IK10 (IEC 62262 (düz kapı)) |
| Mechanical Endurance | Darbeye karşı dayanıklı (EN/IEC 61439-5 version2010) |
| Fire Resistance | 960 °C (IEC 62208) |
| Operating Ambient Temperature | -45…80 °C (IEC 61969-3 Class 1) |
| Storage Temperature | -25…40 °C |
