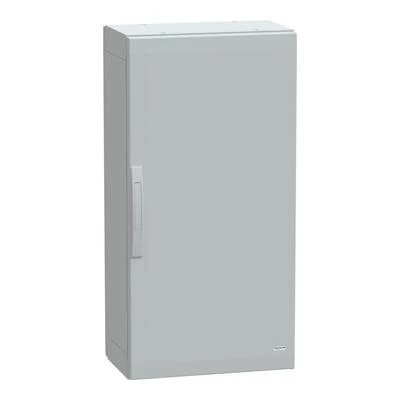

Schneider Electric NSYPLA1053G 7035 FS polyester 1000x500x320
- Brand: Schneider Electric
- SKU: NSYPLA1053G
- MPN: NSYPLA1053G
- Price: 48149.34 TRY + VAT · incl. VAT 57779.21 TRY
- Availability: Made to order
- Opaque Cover Plastic Panels
- Schneider Electric Opaque Cover Plastic Panels
- Selection guide: Opaque Cover Plastic Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NSYPLA1053G Teknik Veri Föyü (PDF)
Schneider Electric NSYPLA1053G 7035 FS polyester 1000x500x320. Technical specifications of this model: Housing Material: Polyester
| Housing Material | Polyester |
|---|---|
| Series | PanelSeT |
| Product Type | Uygun muhafaza |
| Enclosure Mounting | Zemin |
| Device Arrangement | 1 üst parça; 1 alt parça |
| Material | Fiberglas ile sağlamlaştırılmış polyester |
| Color | Grey (RAL 7035) |
| Standards | UL 508 A; IEC 62208 |
| NEMA protection rating | NEMA 13; NEMA 12; NEMA 3S; NEMA 2; NEMA 1; NEMA 5; NEMA 3X; NEMA 3; NEMA 3R |
| Certifications | Veritas; DNV Marine; UL/cUL listelenmiştir |
| Insulation Class | Class II |
| IP Rating | IP65 (IEC 60529 (tamamıyla kapanabilir)) |
| IK Impact Protection | IK10 (IEC 62262 (düz kapı)) |
| Fire Resistance | 960 °C (IEC 62208) |
| Storage Temperature | -35…90 °C |
