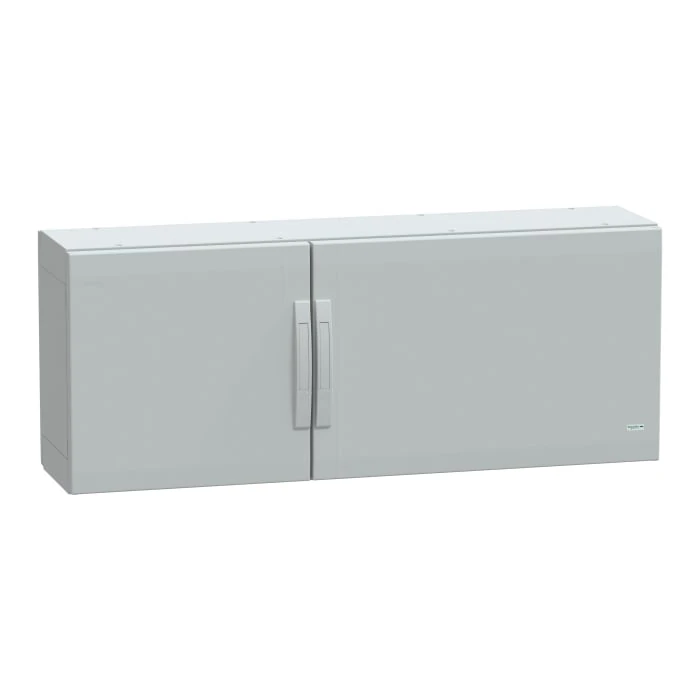

Schneider Electric NSYPLA5123G 7035 FS polyester 500x1250x320
- Brand: Schneider Electric
- SKU: NSYPLA5123G
- MPN: NSYPLA5123G
- Price: 74948.40 TRY + VAT · incl. VAT 89938.08 TRY
- Availability: Made to order
- Opaque Cover Plastic Panels
- Schneider Electric Opaque Cover Plastic Panels
- Selection guide: Opaque Cover Plastic Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NSYPLA5123G Teknik Veri Föyü (PDF)
Schneider Electric NSYPLA5123G 7035 FS polyester 500x1250x320. Technical specifications of this model: Housing Material: Polyester
| Housing Material | Polyester |
|---|---|
| Series | PanelSeT |
| Product Type | Uygun muhafaza |
| Enclosure Mounting | Zemin |
| Device Arrangement | 1 üst parça; 1 alt parça; 2 yan parça; 2 kapı; 2 arka panel |
| Material | Fiberglas ile sağlamlaştırılmış polyester |
| Color | Grey (RAL 7035) |
| Standards | IEC 62208; UL 508 A |
| NEMA protection rating | NEMA 12; NEMA 2; NEMA 13; NEMA 1 |
| Certifications | UL/cUL listelenmiştir; Veritas; DNV Marine |
| Insulation Class | Class II |
| IP Rating | IP65 (IEC 60529 (tamamıyla kapanabilir)) |
| IK Impact Protection | IK10 (IEC 62262 (düz kapı)) |
| Fire Resistance | 960 °C (IEC 62208) |
| Storage Temperature | -35…90 °C |
