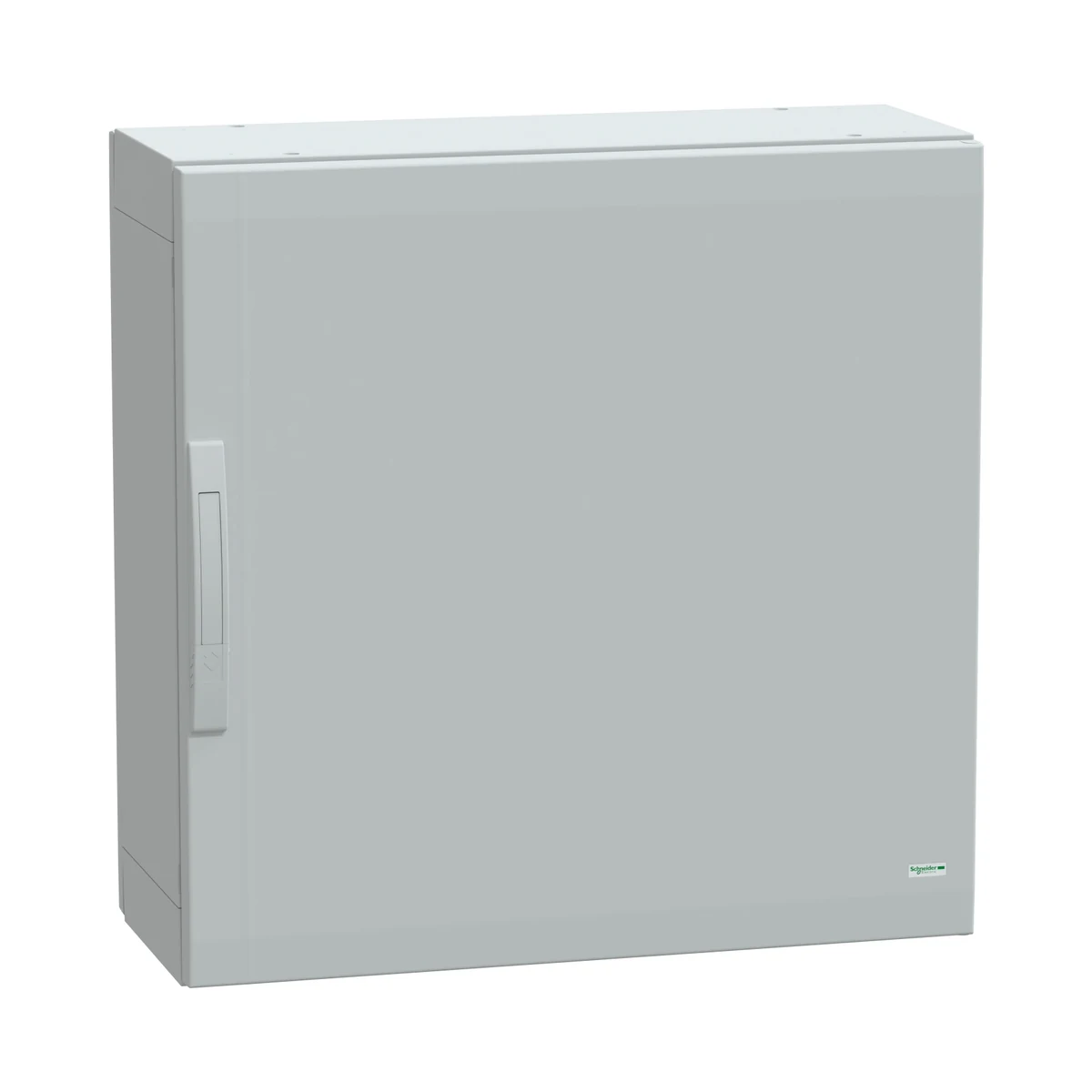

Schneider Electric NSYPLA773G 7035 FS polyester 750x750x320
- Brand: Schneider Electric
- SKU: NSYPLA773G
- MPN: NSYPLA773G
- Price: 47704.54 TRY + VAT · incl. VAT 57245.45 TRY
- Availability: Made to order
- Opaque Cover Plastic Panels
- Schneider Electric Opaque Cover Plastic Panels
- Selection guide: Opaque Cover Plastic Panels Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NSYPLA773G Teknik Veri Föyü (PDF)
Schneider Electric NSYPLA773G 7035 FS polyester 750x750x320. Technical specifications of this model: Housing Material: Polyester
| Housing Material | Polyester |
|---|---|
| Series | PanelSeT |
| Product Type | Uygun muhafaza |
| Enclosure Mounting | Zemin |
| Device Arrangement | 1 üst parça; 1 alt parça; 2 yan parça; 1 arka panel; 1 kapı |
| Material | Fiberglas ile sağlamlaştırılmış polyester |
| Color | Grey (RAL 7035) |
| Standards | UL 508 A; IEC 62208 |
| NEMA protection rating | NEMA 3S; NEMA 1; NEMA 2; NEMA 3; NEMA 12; NEMA 5; NEMA 3X; NEMA 3R; NEMA 13 |
| Certifications | Veritas; UL/cUL listelenmiştir; DNV Marine |
| Insulation Class | Class II |
| IP Rating | IP65 (IEC 60529 (tamamıyla kapanabilir)) |
| IK Impact Protection | IK10 (IEC 62262 (düz kapı)) |
| Fire Resistance | 960 °C (IEC 62208) |
| Storage Temperature | -35…90 °C |
