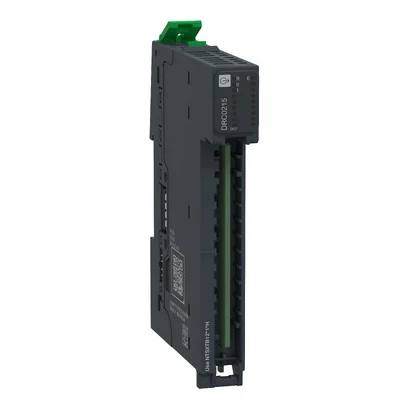

Schneider Electric NTSDRC0215K Edge I/O NTS 2 Digital Output, Isolated, Relay output
- Brand: Schneider Electric
- SKU: NTSDRC0215K
- MPN: NTSDRC0215K
- Price: 11675.94 TRY + VAT · incl. VAT 14011.13 TRY
- Availability: Made to order
- Digital Output Modules
- Schneider Electric Digital Output Modules
- Selection guide: Digital Output Modules Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NTSDRC0215K Teknik Veri Föyü (PDF)
Schneider Electric NTSDRC0215K Edge I/O NTS 2 Digital Output, Isolated, Relay output.
| Series | Modicon Edge I/O NTS |
|---|---|
| Product Type | Dijital çıkış modülü kiti |
| Compatible Products | NTSN..... |
| Compatible Series | Logic/motion controller - Modicon M262; Modicon M580; Third party |
| Device Application | Endüstriyel uygulama |
| Number of Digital Outputs | 2 |
| Operating Mode | Asynchronous |
| Minimum Switching Current | 10 mA 5 V DC |
| Mechanical Endurance | 10000000 cycles |
| Conventional Free Air Thermal Current (Ith) | 2 A per channel |
| Electrical Endurance | 150000 cycles 2 A 250 V AC; 150000 cycles 2 A 30 V DC; 300000 cycles 1 A 250 V AC; 300000 cycles 1 A 30 V DC |
| Power Supply Type | Veri yolu gücü, güç kaynağı veri yolundan (24 Vdc); Saha gücü, güç kaynağı sahasından (5…125 Vdc veya 24…250 Vac) |
| Electrical Connection | Vidalı/yaylı terminal bloğu |
| Power Loss (W) | 1,4 W maximum at 24 V DC |
| Local Signalling | 1 LED (yeşil) for modül çalışıyor (RUN); Kanal başına 1 LED (yeşil) for kanal tanısı; 1 LED (kırmızı) for modül hatası (ERR) |
| Enclosure Colour | Grey |
| Mounting Support | Silindir şapka tipi TH35-7.5 ray (IEC 60715); Silindir şapka tipi TH35-15 ray (IEC 60715) |
| Height | 116.6 mm |
| Width | 15 mm |
| Depth | 81 mm |
| Product Weight | 0.073 kg |
| IP Rating | IP20 |
| Conformity Markings | CE; UKCA; CULus; RCM |
| Certifications | CE; UKCA; CULus; RCM; Merchant Navy - EU RO MR (pending); EAC (beklemede); ATEX Zone 2 (pending); IECEx zone 2 (pending); CCC Ex zone 2 (pending) |
| Operating Ambient Temperature | -20…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 5…95 % yoğuşmasız |
| Operating Altitude | 0…2000 m değer kaybı olmadan; 2000…5000 m değer kaybı ile |
| Pollution Degree | 2 |
| Environmental Conditions | C3 ve G2 gaz dirençli |
| Vibration Resistance | Aksesuarsız 1 g; aksesuarlı 2 g |
