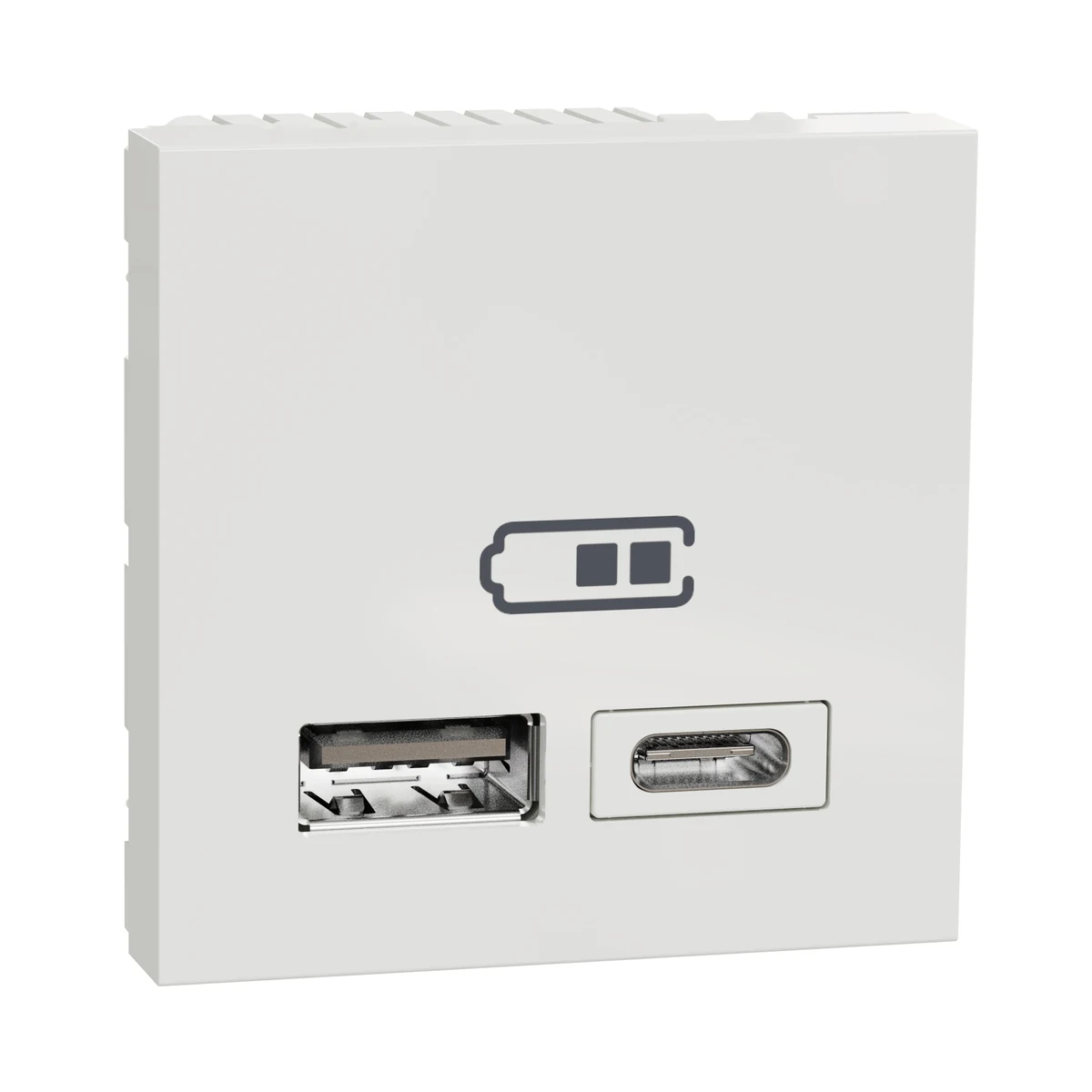

Schneider Electric NU301818 Yeni Unica, 2xUSB Charging Socket 2.4A Type A+C 2m, White
- Brand: Schneider Electric
- SKU: NU301818
- MPN: NU301818
- Price: 4393.00 TRY + VAT · incl. VAT 5271.60 TRY
- Availability: Made to order
- USB Charging Sockets
- Schneider Electric USB Charging Sockets
- Selection guide: USB Charging Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NU301818 Teknik Veri Föyü (PDF)
Schneider Electric NU301818 Yeni Unica, 2xUSB Charging Socket 2.4A Type A+C 2m, White. Technical specifications of this model: Series: Yeni Unica Color: White
| Color | White |
|---|---|
| Series | New Unica |
| Product Type | USB şarj cihazı |
| Device Presentation | Kapak plakalı mekanizma |
| Device Application | Şarj Cihazı |
| Device Mounting | Flush-mounted |
| Number of Modules | 2 modül |
| Color Tone | White (RAL 9003) |
| Rated Operational Voltage (Ue) | 100…240 V AC 50/60 Hz |
| Maximum Power Consumption (W) | 0.075 W |
| Number of sockets | 2 |
| Integrated Connection Type | 1 USB tip A 5 V DC 1A; 1 USB type C 5 V DC 2,4 A |
| Material | ABS (akrilonitril butadiyen stiren): merkezi plaka; PC (polikarbonat) GF10 FR: muhafaza; PC (polikarbonat) GF10 FR: internal cover |
| Protection Type | Kısa devre koruması |
| Cable Stripping Length | 8 mm |
| Compatible Products | EN 62684 standardını karşılayan tüm cihazlar |
| Fixing Method | Pençelerle; Vidalarla |
| Operating Ambient Temperature | 0…40 °C |
| Storage Temperature | -5…50 °C |
| Standards | ETSI EN 301 489-4; TR 60950-1; EN 62684 |
| Height | 45 mm |
| Width | 22.5 mm |
| Depth | 42 mm |
| Flush Mounting Depth | 30.8 mm |
| Insulation Class | Class II |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
