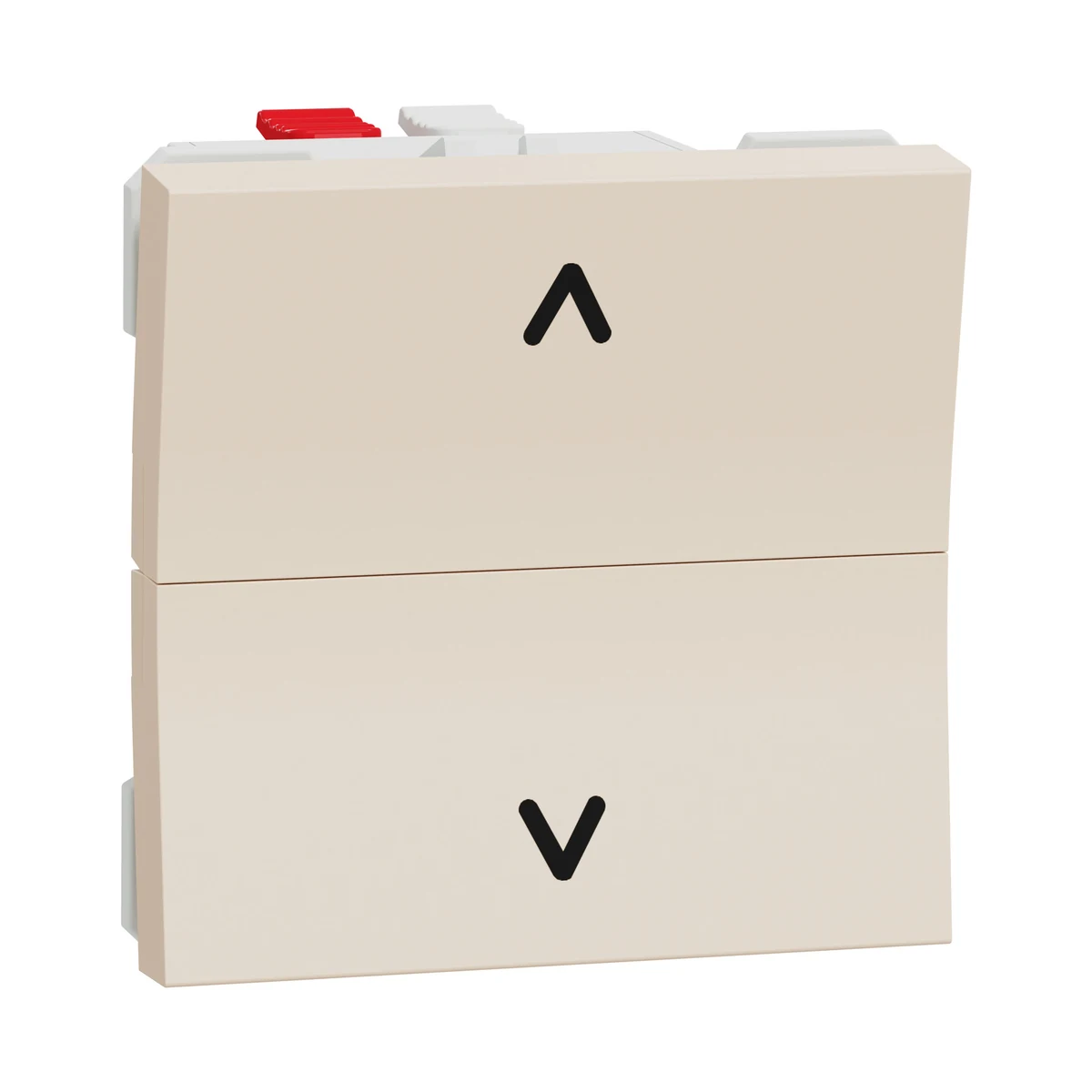

Schneider Electric NU320744 Yeni Unica, Blind Control Push Button 6A 2 module, Cream
- Brand: Schneider Electric
- SKU: NU320744
- MPN: NU320744
- Price: 1091.00 TRY + VAT · incl. VAT 1309.20 TRY
- Availability: Made to order
- Wall Switches
- Schneider Electric Wall Switches
- Selection guide: Wall Switch Selection Guide
- Schneider Electric NU320744 Teknik Veri Föyü (PDF)
Schneider Electric NU320744 Yeni Unica, Blind Control Push Button 6A 2 module, Cream. Technical specifications of this model: Series: Yeni Unica Color: Cream
| Color | Cream |
|---|---|
| Series | New Unica |
| Product Type | Stor basmalı düğmesi |
| Device Presentation | Mekanizma |
| Technology Type | Elektromekanik |
| Switch Function | Stor |
| Device Application | Kontrol |
| Color Tone | Bej (RAL 1013) |
| Rated Current | 0,25 |
| Rated Operational Voltage (Ue) | 250 V |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Electrical Endurance | 20000 cycles, cos phi = 0,6 |
| Insulation Resistance | > 5 MOhm @ 500 V |
| Dielectric Strength | 2000 V |
| Actuator Type | Külbütör |
| Number of Modules | 2 modül |
| Connection Terminals | Vidasız terminaller |
| Cable Cross-Section | 0…2,5 mm² sert kablo; 0…2,5 mm² esnek kablo |
| Material | CuZn15: terminaller; Termoplastik ABS-UV dengelenmiş: mechanism rocker; PC (polikarbonat) GF10 FR: muhafaza; PBT (polibutilen tereftalat) GF30: release button |
| Conformity Markings | Ok |
| Device Mounting | Flush-mounted |
| Fixing Method | Plug-in |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 44.35 mm |
| Flush Mounting Depth | 32.8 mm |
| Product Weight | 0.0331 kg |
| Operating Ambient Temperature | -5…40 °C |
| Storage Temperature | -5…50 °C |
| Standards | TR 60669-1; AG yönergesi; EMC yönergesi |
| Certifications | CE; Aenor; EAC; NF |
| IP Rating | IP4X |
| IK Impact Protection | IK04 |
| Environmental Conditions | Yağ; UV dirençli; Aseton; Sıvı Sabun; Pencere temizleme sıvısı; Petrol; Alkol; Beyazlatma |
