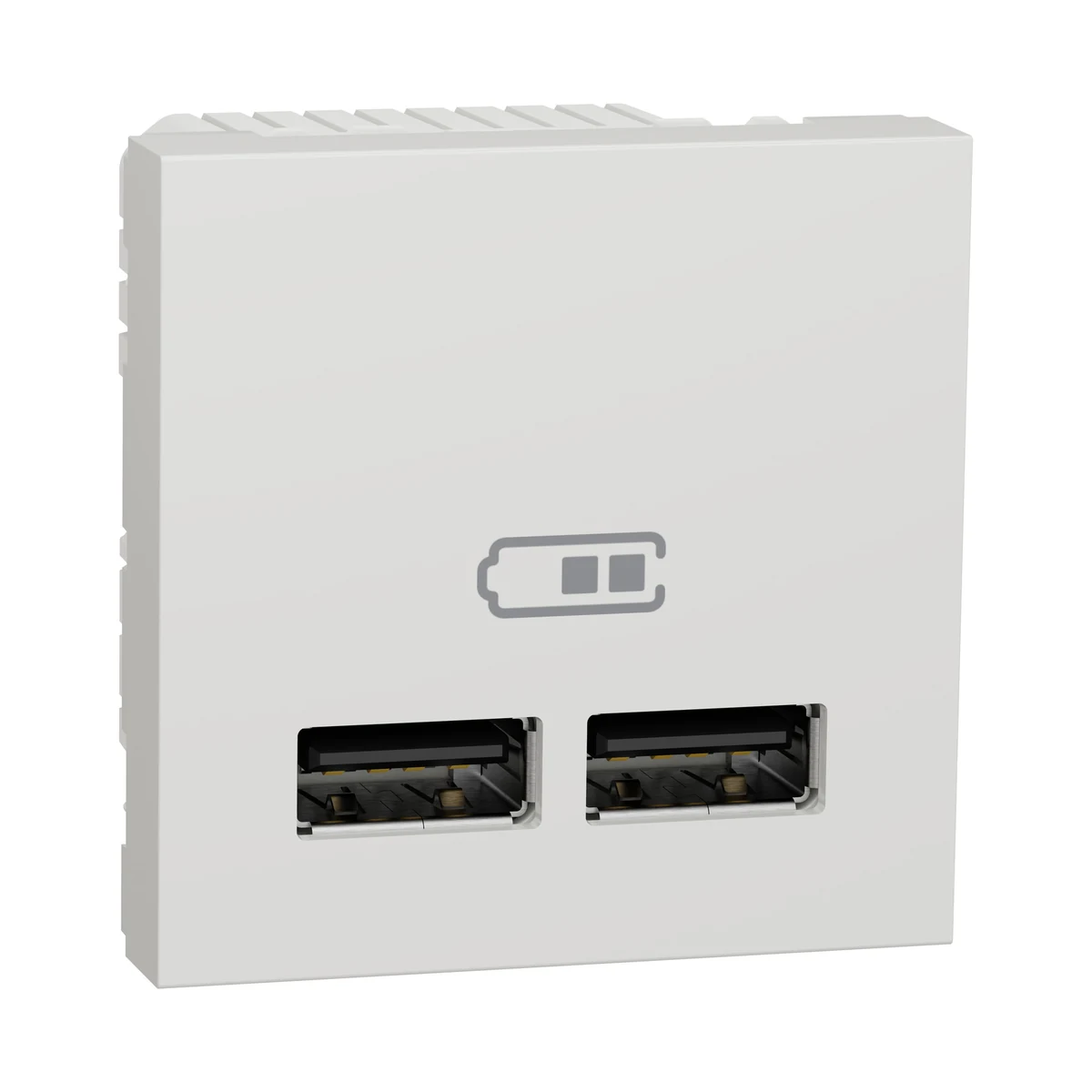

Schneider Electric NU341818 Yeni Unica, 2xUSB Charging Socket 1A Type A 2 module, White
- Brand: Schneider Electric
- SKU: NU341818
- MPN: NU341818
- Price: 3086.00 TRY + VAT · incl. VAT 3703.20 TRY
- Availability: Made to order
- USB Charging Sockets
- Schneider Electric USB Charging Sockets
- Selection guide: USB Charging Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric NU341818 Teknik Veri Föyü (PDF)
Schneider Electric NU341818 Yeni Unica, 2xUSB Charging Socket 1A Type A 2 module, White. Technical specifications of this model: Series: Yeni Unica Color: White
| Color | White |
|---|---|
| Series | New Unica |
| Product Type | USB şarj cihazı |
| Device Presentation | Kapak plakalı mekanizma |
| Device Application | Şarj Cihazı |
| Device Mounting | Flush-mounted |
| Number of Modules | 2 modül |
| Color Tone | White (RAL 9003) |
| Rated Operational Voltage (Ue) | 100…240 V AC 50/60 Hz |
| Number of sockets | 2 |
| Integrated Connection Type | 2 USB tip A 5 V DC 2,1 A |
| Material | PC (polikarbonat) GF10 FR: muhafaza; PC (polikarbonat) GF10 FR: internal cover; Termoplastik ABS-UV dengelenmiş: merkezi plaka |
| Protection Type | Kısa devre koruması |
| Screw Head Shape | Pozidriv No 1 |
| Cable Stripping Length | 8 mm |
| Compatible Products | EN 62684 standardını karşılayan tüm cihazlar |
| Fixing Method | Plug-in |
| Operating Ambient Temperature | 5…45 °C |
| Storage Temperature | -5…50 °C |
| Standards | IEC 62368-1; IEC 62680-3; EN 61000-6-3; EN 61000-6-1 |
| Height | 45 mm |
| Width | 45 mm |
| Depth | 40 mm |
| Flush Mounting Depth | 27 mm |
| Product Weight | 0.082 kg |
| Insulation Class | Class II |
| IK Impact Protection | IK04 |
| IP Rating | IP2xC |
