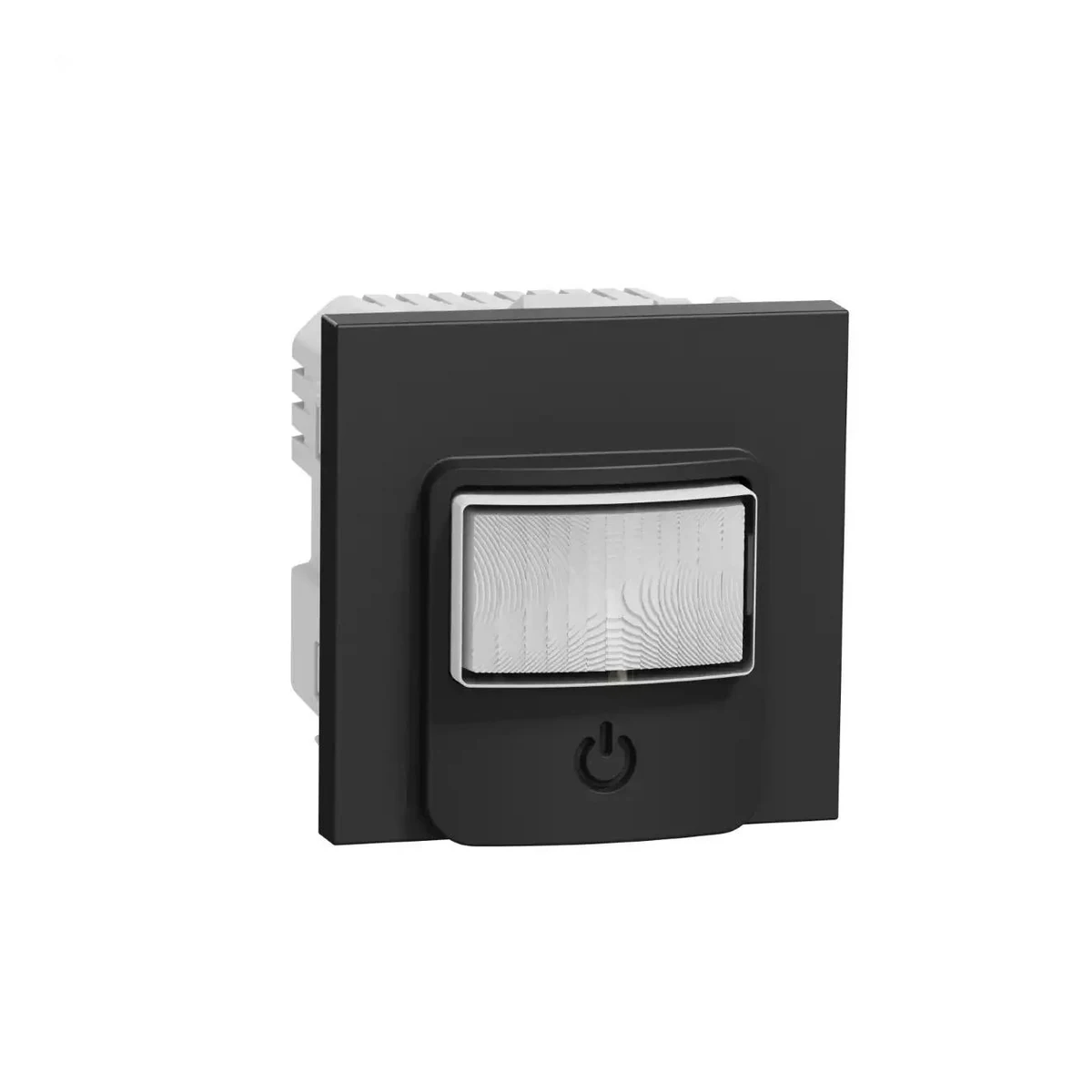

Schneider Electric NU352554 Yeni Unica Motion Sensor Switch Anthracite
- Brand: Schneider Electric
- SKU: NU352554
- MPN: NU352554
- Price: 9664.00 TRY + VAT · incl. VAT 11596.80 TRY
- Availability: Made to order
- Wall Switches
- Schneider Electric Wall Switches
- Selection guide: Wall Switch Selection Guide
- Schneider Electric NU352554 Teknik Veri Föyü (PDF)
Schneider Electric NU352554 Yeni Unica Motion Sensor Switch Anthracite. Technical specifications of this model: Series: Yeni Unica Color: Anthracite
| Color | Anthracite |
|---|---|
| Series | New Unica |
| Product Type | Hareket dedektörü |
| Color Tone | Antrasit (RAL 7021) |
| Device Presentation | Kapak plakalı mekanizma |
| Device Mounting | Flush-mounted |
| Fixing Method | Vidalarla |
| Rated Operational Voltage (Ue) | 230 V AC 50 Hz |
| Rated Current | 0,416666666666667 140 µF; 0,416666666666667 cos phi = 0,6 |
| Associated Fuse Rating | 16 A |
| Number of Modules | 2 modül |
| Local Signalling | Durum: 1 LED (kırmızı) |
| Number of Outputs | 1 |
| Control Type | Manuel kontrol; Yerel kontrol automatic load detection; Remote control by auxiliary push-button |
| Connection Terminals | Vidalı terminal |
| Screw Head Shape | Pozidriv No 1 ve kombi |
| Tightening Torque | 0,5 N.m |
| Material | PC (polikarbonat) GF10 FR: muhafaza; Metal: terminaller; Termoplastik ABS-UV dengelenmiş: merkezi plaka |
| Mounting Support | Duvar |
| Flush Mounting Depth | 29 mm |
| Depth | 44 mm |
| Width | 45 mm |
| Height | 45 mm |
| Product Weight | 0.042 kg |
| Standards | EN 301-489-17; EN 60669-2-1; TR 300-328; EN 60730-2-7 |
| Certifications | CE; SEMKO; NEMKO; FIMKO; VDE; EAC |
| Operating Ambient Temperature | 5…40 °C |
| Storage Temperature | 5…40 °C |
| IK Impact Protection | IK04 |
