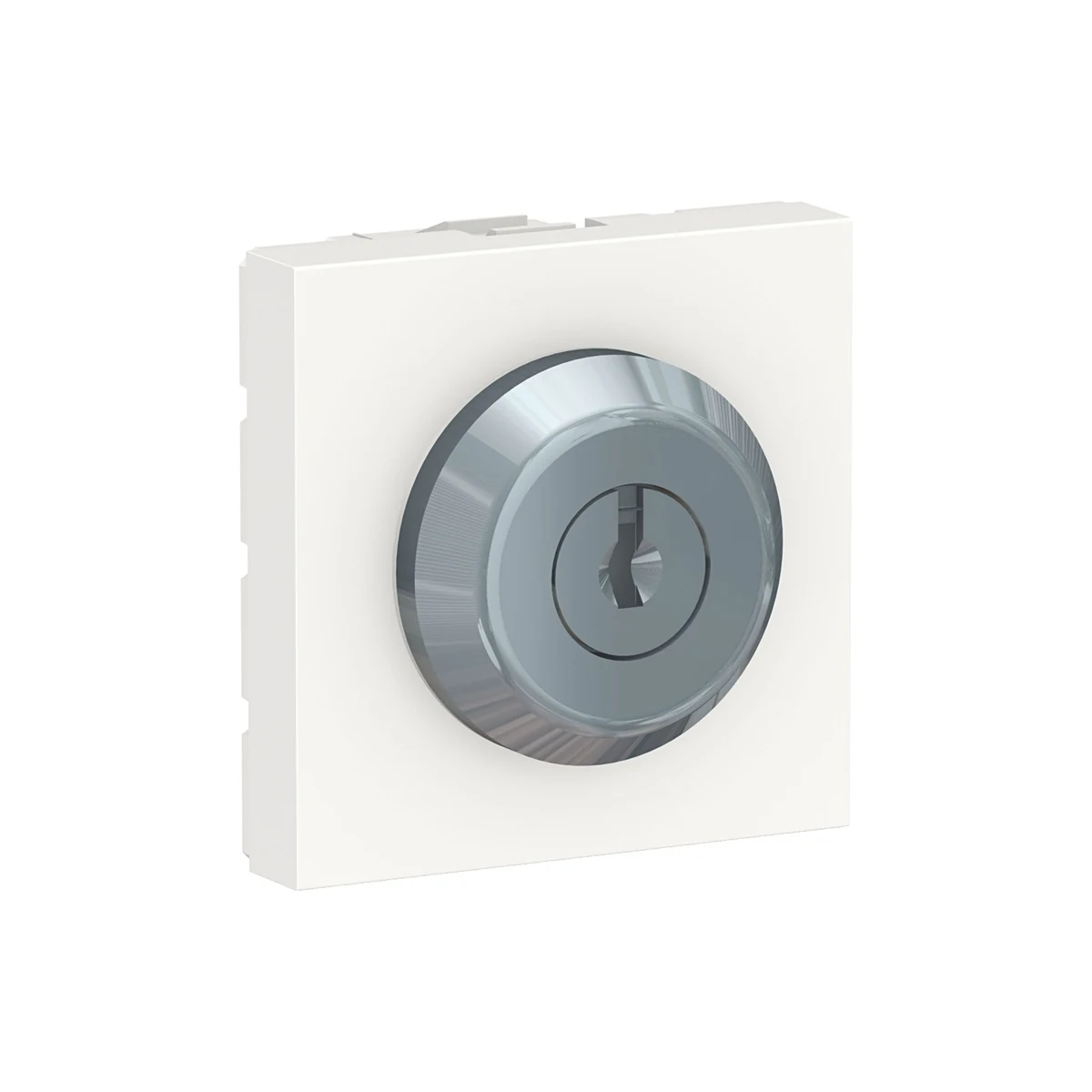

Schneider Electric NU370118 Yeni Unica, Key Switch 3 position 2 module, White
- Brand: Schneider Electric
- SKU: NU370118
- MPN: NU370118
- Price: 12023.00 TRY + VAT · incl. VAT 14427.60 TRY
- Availability: Made to order
- Wall Switches
- Schneider Electric Wall Switches
- Selection guide: Wall Switch Selection Guide
- Schneider Electric NU370118 Teknik Veri Föyü (PDF)
Schneider Electric NU370118 Yeni Unica, Key Switch 3 position 2 module, White. Technical specifications of this model: Series: Yeni Unica Color: White
| Color | White |
|---|---|
| Series | New Unica |
| Product Type | Anahtar düğmesi |
| Device Presentation | Kapak plakalı mekanizma |
| Technology Type | Elektromekanik |
| Switch Function | 3 konum |
| Device Application | Işık kontrolü |
| Color Tone | White (RAL 9003) |
| Rated Current | 16 A |
| Rated Operational Voltage (Ue) | 250 V |
| Current Type | AC |
| Mains Frequency | 50 Hz |
| Electrical Endurance | 20000 cycles, cos phi = 0,6 |
| Insulation Resistance | > 5 MOhm @ 500 V |
| Dielectric Strength | 2000 V |
| Actuator Type | Anahtar |
| Number of Modules | 2 modül |
| Connection Terminals | Screw terminals |
| Cable Cross-Section | 0…2,5 mm² sert kablo; 0…2,5 mm² esnek kablo |
| Material | Termoplastik ABS-UV dengelenmiş: mechanism rocker |
| Conformity Markings | Işaret olmadan |
| Device Mounting | Flush-mounted |
| Fixing Method | Plug-in |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 74 mm |
| Flush Mounting Depth | 31 mm |
| Product Weight | 0.0505 kg |
| Operating Ambient Temperature | -5…40 °C |
| Storage Temperature | -5…50 °C |
| Standards | IEC 60669-1; AG yönergesi |
| Certifications | CE |
| IP Rating | IP4X |
| IK Impact Protection | IK04 |
| Environmental Conditions | Yağ; UV dirençli; Aseton; Sıvı Sabun; Pencere temizleme sıvısı; Petrol; Alkol; Beyazlatma |
