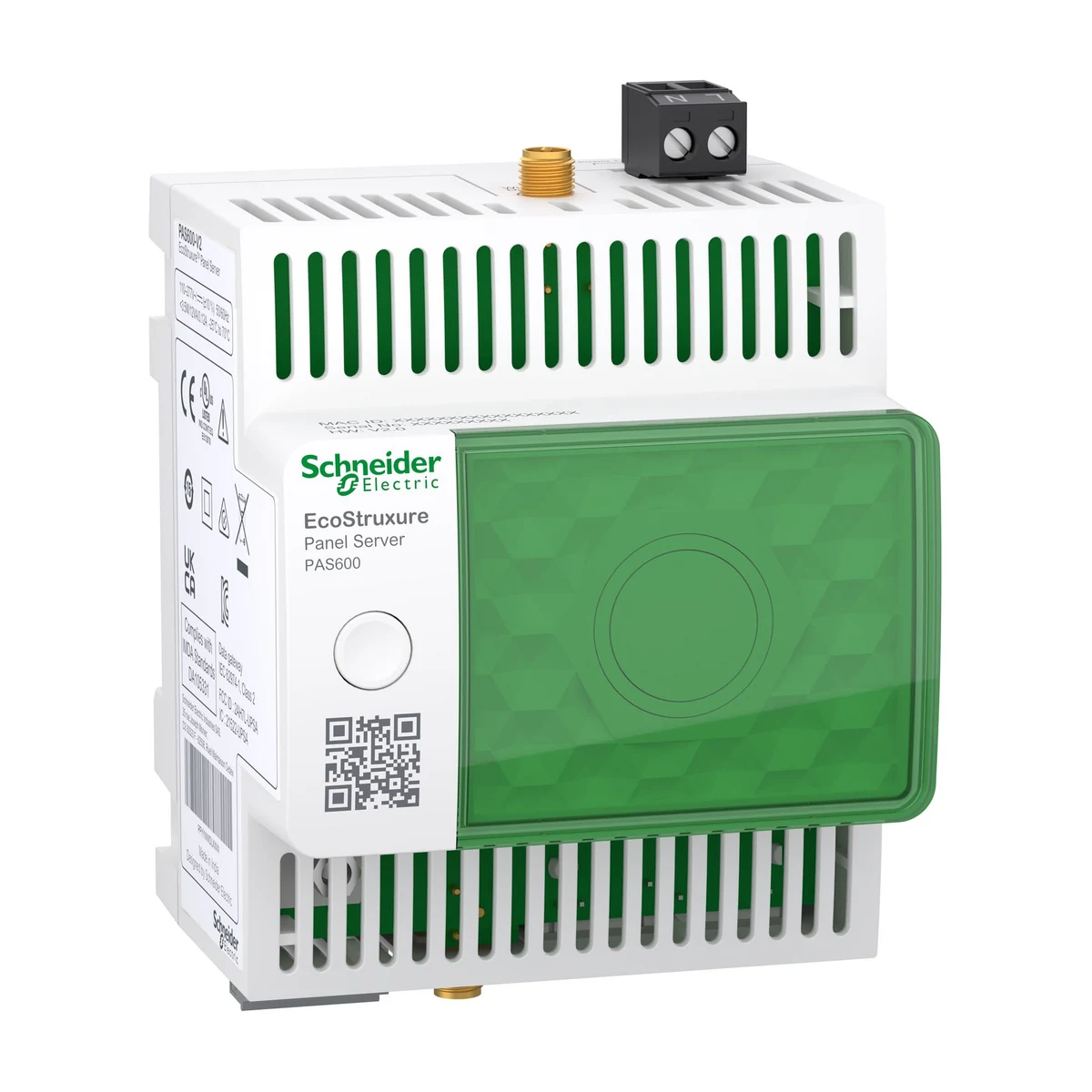

Schneider Electric PAS600L EcoStruxure Panel Server - universal wireless, concentrator Modbus gateway 24 VDC
- Brand: Schneider Electric
- SKU: PAS600L
- MPN: PAS600L
- Price: 36862.60 TRY + VAT · incl. VAT 44235.12 TRY
- Availability: Made to order
- Industrial Gateways
- Selection guide: Industrial Communication Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric PAS600L Teknik Veri Föyü (PDF)
Schneider Electric PAS600L EcoStruxure Panel Server - universal wireless, concentrator Modbus gateway 24 VDC. Technical specifications of this model: Communication Protocol: Modbus
| Communication Protocol | Modbus |
|---|---|
| Series | EcoStruxure |
| Product Type | Ağ geçidi |
| Device Application | Ağ geçidi |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Communication Gateway | Kablosuz cihazlara Ethernet TCP/IP; Ethernet/seri |
| Compatible Products | Kablosuz erişim noktası |
| Communication Port Support | 2 RJ45: Ethernet; Vidalı terminal bloğu: RS485 |
| Memory Capacity | HW V2: 32 GB eMMC; HW V1: 512 MB NAND |
| Number of Inputs | 2 dijital |
| Tightening Torque | Discrete I/O: 0,25 N.m; Güç besleme: 0,6 N.m; Haberleşme: 0,25 N.m |
| Cable Stripping Length | Güç besleme: 7 mm; Haberleşme: 7 mm; Discrete I/O: 7 mm |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Certifications | CE; cULus; CB; RCM; UKCA; FCC; IC; DNV Marine; ANSI RF; IACS E10 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Product Weight | 181 g |
| Data Logging | Real time data monitoring |
| Application | Kablosuz Schneider Electric aygıtları ekosistemi |
| Web Services | HTTPS sunucusu; SFTP publication (CSV / JSON); HTTPS publication (CSV / JSON) |
| Communication Services | Web Hizmetleri için Aygıt Profili (DPWS); Modbus TCP istemcisi; Modbus TCP sunucusu; SNTP istemcisi; DHCP istemcisi; RSTP |
| Time Synchronization Protocol | NTP; SNTP |
| Relative Humidity | 5…95 % |
| IP Rating | IP40 (ön yüz); IP20 (muhafaza) |
| Operating Ambient Temperature | -25…70 °C @ < 2000 m; -25…60 °C @ 2000…4000 m |
| Storage Temperature | -40…85 °C |
| Pollution Degree | 3 |
| Operating Altitude | < 5000 m |
