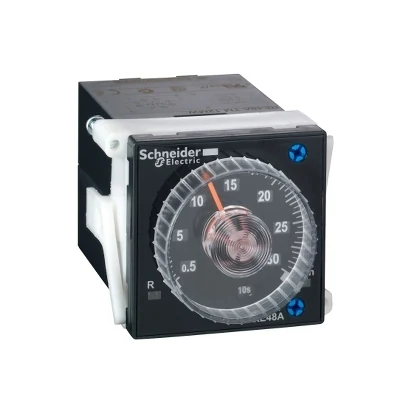

Schneider Electric RE48ATM12MW On-Delay Timer Relay 0.02 s- 300 hours 5A, 2 relay
- Brand: Schneider Electric
- SKU: RE48ATM12MW
- MPN: RE48ATM12MW
- Price: 8478.95 TRY + VAT · incl. VAT 10174.74 TRY
- Availability: Made to order
- Single-Function Timer Relays
- Selection guide: Single-Function Timer Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RE48ATM12MW Teknik Veri Föyü (PDF)
Schneider Electric RE48ATM12MW On-Delay Timer Relay 0.02 s- 300 hours 5A, 2 relay.
| Series | Harmony Zamanlayıcı Röleleri |
|---|---|
| Electrical Connection | Takılabilir alt taban 8 pim(ler) |
| Width | 48 mm |
| Product Type | Panel montajlı/takılabilir zaman rölesi |
| Digital Output Type | Röle |
| Contact Arrangement | 2 K/A zamanlı kontaklar, AgNi (kadmiyumsuz) |
| Time Delay Range | 5…300 h; 2…120 min; 0.5…30 h; 0.2…12 h; 0.2…12 min; 0.2…12 s; 0.5…30 min; 2…120 h; 2…120 s; 0.02…1.2 s; 0.5…30 s; 5…300 s; 0.05…3 s; 5…300 min |
| Rated Control Supply Voltage (Us) | 24…240 V AC/DC 50/60 Hz |
| Rated Current (Ir) | 5 A |
| Control Type | Selektör anahtarı ön panel |
| Housing Material | Polikarbonat |
| Load Factor | 100 % |
| Power Consumption (VA) | 6 VA @ 240 V |
| Power Consumption (W) | 2 W @ 240 V |
| Minimum Switching Current | 100 mA |
| Maximum Switching Current | 5 A |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 30000000 cycles |
| Output Voltage | 240 V @ 5 A AC-12; 30 V @ 2 A DC-13; 240 V @ 1,5 A AC-15 |
| Conformity Markings | CE |
| Surge Immunity | 1 kV diferansiyel mod (IEC 61000-4-5 seviye 3); 2 kV ortak mod (IEC 61000-4-5 seviye 3) |
| Mounting Support | Panel montajlı: sistem ürünle birlikte sağlanır; Tabana monte: soket |
| Product Weight | 0.14 kg |
| Micro-Interruption Immunity | 5 ms |
| Dielectric Strength | 2 kV 1 mA/1 dakika (IEC 61812-1) |
| Standards | 73/23/EEC; 93/68/EEC; EN 50082-1/2; 89/336/EEC; EN 50081-1/2; IEC 61812-1; IEC 60669-2-3 |
| Certifications | UL; cULus; C-Tick; CSA |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -20…50 °C |
| IP Rating | IP40 (IEC 60529 (muhafaza)); IP50 (IEC 60529 (ön yüz)) |
| Vibration Resistance | 0,35 mm (f= 10…55 Hz) (IEC 60068-2-6) |
| Relative Humidity | 93 % yoğuşmasız (IEC 60068-2-3) |
| Electrostatic Discharge Immunity | 6 kV kontakta (IEC 61000-4-2 seviye 3); 8 kV havada (IEC 61000-4-2 seviye 3) |
| Radiated Electromagnetic Field Immunity | 10 V/m 26 MHz - 1 GHz (IEC 61000-4-3 seviye 3) |
| Fast Transient Immunity (EFT) | 2 kV (IEC 61000-4-4 seviye 3 (doğrudan)); 4 kV (IEC 61000-4-4 level 4 (doğrudan)) |
| Conducted Radio-Frequency Immunity | 10 V (0,15…80 MHz) (IEC 61000-4-6 seviye 3) |
