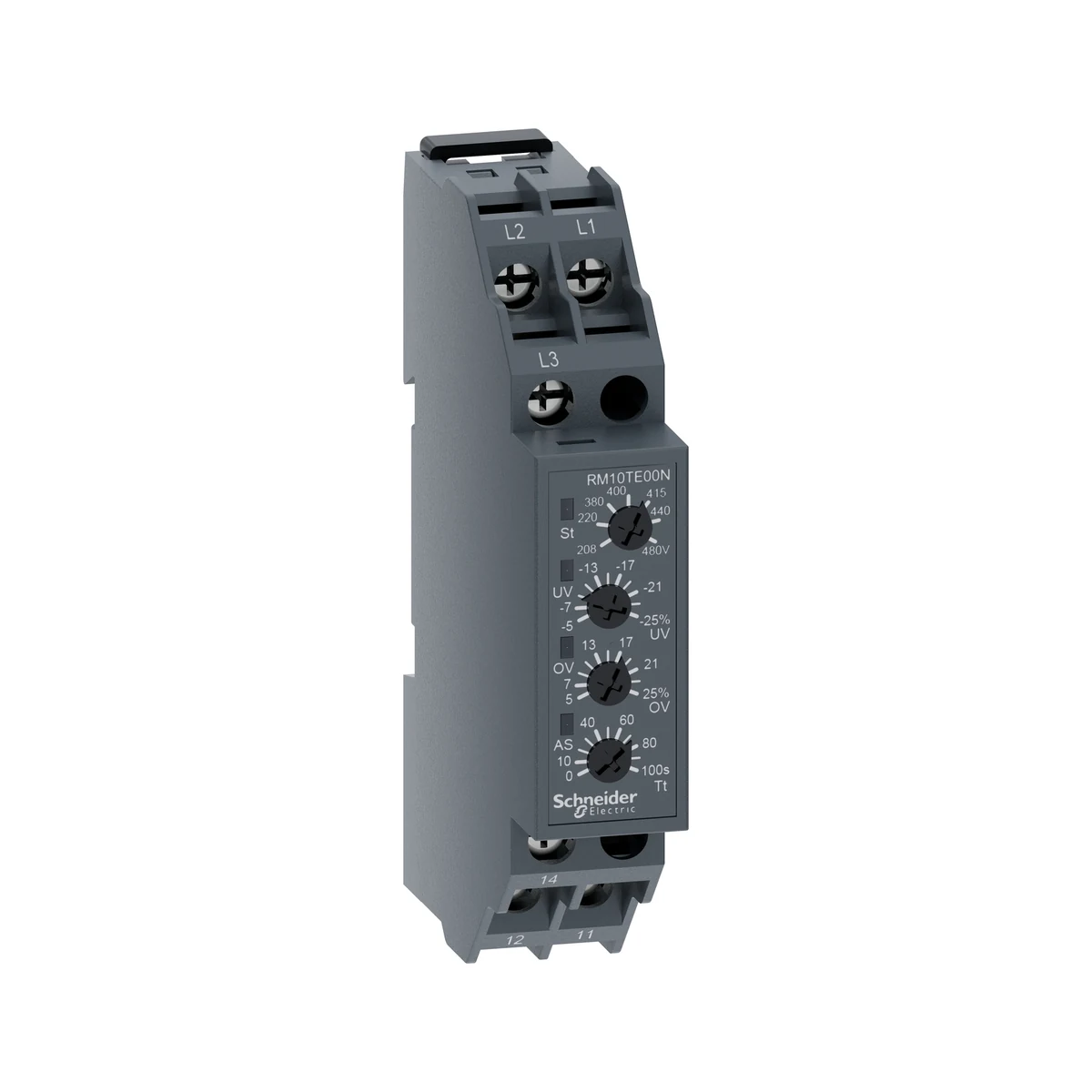

Schneider Electric RM10TE00N Harmony 3 Phase Voltage Control Relay
- Brand: Schneider Electric
- SKU: RM10TE00N
- MPN: RM10TE00N
- Price: 4392.38 TRY + VAT · incl. VAT 5270.86 TRY
- Availability: Made to order
- Phase and Motor Protection Relays
- Schneider Electric Phase and Motor Protection Relays
- Selection guide: Phase and Motor Protection Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RM10TE00N Teknik Veri Föyü (PDF)
Schneider Electric RM10TE00N Harmony 3 Phase Voltage Control Relay. Technical specifications of this model: Series: Harmony
| Series | Harmony |
|---|---|
| Product Type | 3 fazlı kontrol rölesi |
| Application | 3 fazlı besleme için |
| Supply Voltage Limits | 183…528 V AC, 3 faz |
| Mains Frequency | 47–63 Hz |
| Power Consumption (VA) | 0–4.5 VA |
| Response Time | < 550 ms (bir hata durumunda) |
| Rated Output Current | 5 A |
| Electrical Endurance | 100000 cycles |
| Mechanical Endurance | 10000000 cycles |
| Electromagnetic Compatibility | IEC 61000-6-4; IEC 61000-6-3; IEC 61000-6-2 |
| Standards | IEC 60255-1 |
| Certifications | cULus; CE; UKCA; CCC |
| Conformity Markings | CULus; CE; UKCA; CCC |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -15…60 °C |
| Relative Humidity | 10…95 % |
| IP Rating | IP20 (terminaller); IP40 (muhafaza) |
| Pollution Degree | 2 |
| Overvoltage category | II |
| Insulation Resistance | > 100 MOhm @ 500 V DC |
| Rated Insulation Voltage (Ui) | 400 V |
| Connection Terminals | Vidalı terminaller, 2 x 0,5…2 x 1,5 mm² (AWG 20...AWG 16) katı kablo uçlu veya; uçsuz |
| Tightening Torque | 0,5…0,7 N.m |
| Housing Material | Polikarbonat |
| Mounting Support | 35 mm simetrik DIN rayı (IEC 60715) |
| Height | 90 mm; 88,9 mm |
| Width | 17,5 mm; 17,8 mm |
| Depth | 58,5 mm; 58,4 mm |
| Product Weight | 0,075 kg; 0,08 kg |
