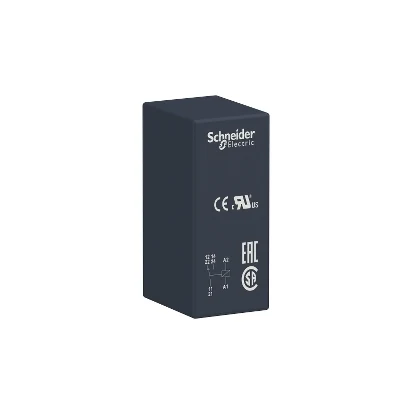

Schneider Electric RSB1A160B7 24 V AC Interface Relays (RSB)
- Brand: Schneider Electric
- SKU: RSB1A160B7
- MPN: RSB1A160B7
- Price: 400.32 TRY + VAT · incl. VAT 480.38 TRY
- Availability: In stock
- General-Purpose Relays
- Schneider Electric General-Purpose Relays
- Selection guide: General-Purpose Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RSB1A160B7 Teknik Veri Föyü (PDF)
Schneider Electric RSB1A160B7 24 V AC Interface Relays (RSB).
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Takılabilir röle |
| Contact Arrangement | 1CO |
| Status LED | None |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50/60 Hz |
| Control Type | Kilitlenebilir test butonu olmadan |
| Conventional Enclosed Thermal Current (Ithe) | 16 A @ -40…40 °C |
| Rated Operational Voltage (Ue) | 19,2…36 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 3,6 kV (IEC 61000-4-5) |
| Rated Operational Current (Ie) | 16 A (AC-1/DC-1) NA (IEC); 8 A (AC-1/DC-1) NK (IEC) |
| Rated Insulation Voltage (Ui) | 400 V (IEC 60947) |
| Minimum Switching Current | 10 mA |
| Operating Time | 20 ms çalışma; 20 ms sıfırlama |
| Mechanical Endurance | 10000000 cycles |
| Electrical Endurance | 100000 cycles, 16 A @ 250 V, AC-1 NA; 100000 cycles, 8 A @ 250 V, AC-1 NK |
| Safety Reliability Data (MTTFd) | B10d = 100000 |
| Operating Position | Herhangi bir konum |
| Device Presentation | Angled |
| Contact Material | Gümüş alaşım (AgNi) |
| Product Weight | 0.014 kg |
| Dielectric Strength | 1000 V AC kontaklar arasında; 2500 V AC kutuplar arasında; 5000 V AC bobin ve kontak arasında |
| Vibration Resistance | +/- 1 mm (f= 10…55 Hz) (IEC 60068-2-6) |
| IP Rating | IP40 |
| Operating Ambient Temperature | -40…70 °C (AC) |
| Standards | UL 508; IEC 61810-1; CSA C22.2 No 14 |
| Certifications | UL; EAC; CSA |
| Conformity Markings | CE |
| Storage Temperature | -40…85 °C |
| Shock Resistance | 10 gn (süre = 11 ms) için çalışmıyor (IEC 60068-2-27); 5 gn (süre = 11 ms) için çalışma sırasında (IEC 60068-2-27) |
