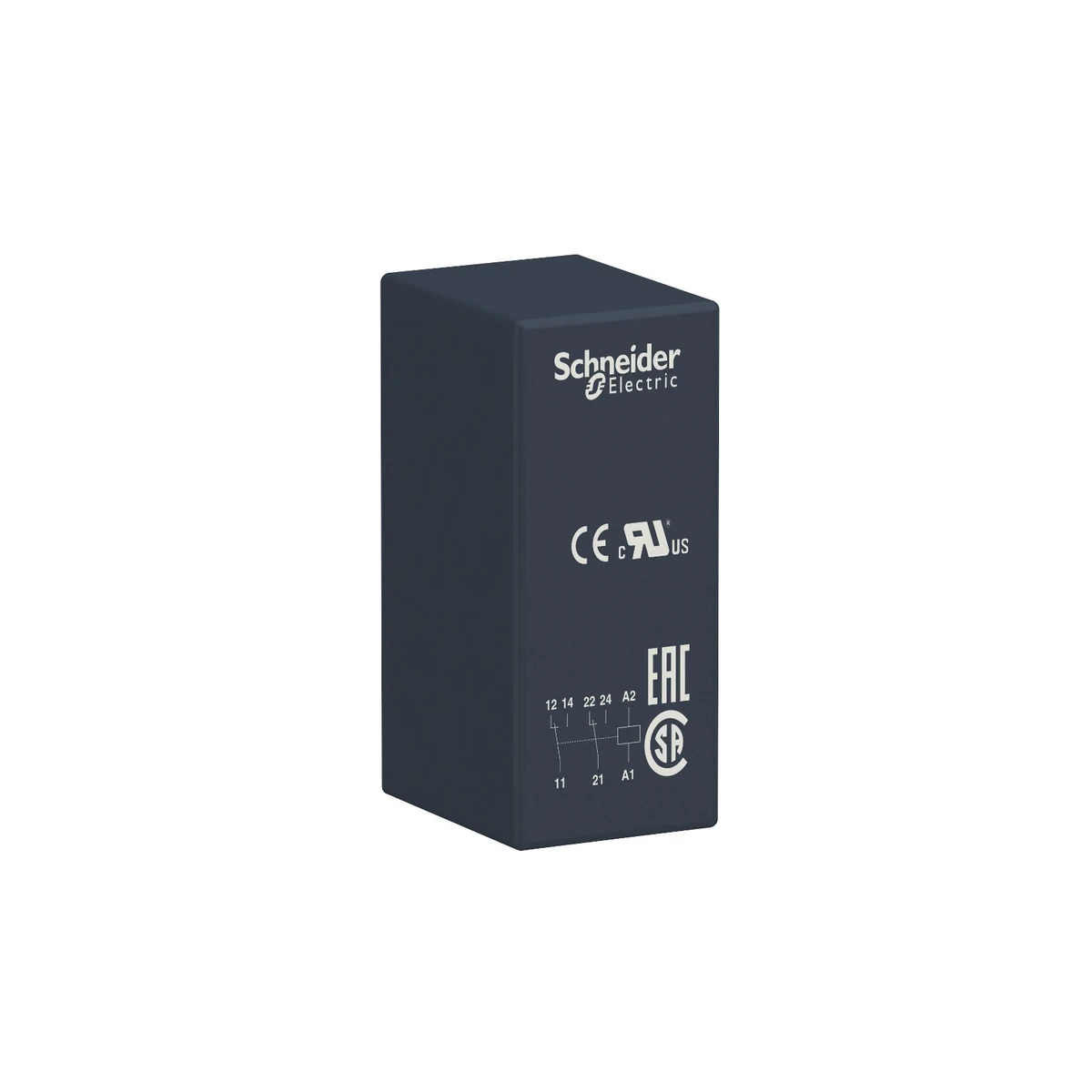

Schneider Electric RSB2A080BD 24 V DC Interface Relays (RSB)

• Brand: Schneider Electric
• SKU: RSB2A080BD
• MPN: RSB2A080BD
• Price: 311.36 TRY + VAT · incl. VAT 373.63 TRY
• Availability: In stock
• General-Purpose Relays
• Schneider Electric General-Purpose Relays
• Selection guide: General-Purpose Relays Selection Guide: Technical Criteria and Engineering Practice

Schneider Electric RSB2A080BD 24 V DC Interface Relays (RSB). Technical specifications of this model: Manufacturer Certificate Declaration: ULCSAEAC Operating Position: ANY POSITION IP Rating: IP40 CONFORMING TO IEC 60529 Storage Temperature: -40…85 °C Average Resistance: 1440 OHM NETWORK: DC AT 20 °C +/- 10 % Compatibility Code: RSB Load Current: 8 A AT 250 V AC8 A AT 28 V DC Maximum Switching Voltage: 300 V DC CONFORMING TO IEC Rated Impulse Withstand Voltage (Uimp): 3.6 KV CONFORMING TO IEC 61000-4-5 Rated Insulation Voltage (Ui): 400 V CONFORMING TO IEC 60947 Electrical Endurance: 100000 CYCLES, 8 A AT 250 V, AC-1 NO100000 CYCLES, 4 A AT 250 V, AC-1 NC Mechanical Endurance: 30000000 CYCLES Pin Shape: FLAT (PCB TYPE) Dielectric Strength: 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact Rated Operational Current (Ie): 4 A (AC-1/DC-1) NC, IEC compliant; 8 A (AC-1/DC-1) NO, IEC compliant Toxic Heavy Metal-Free Declaration: ✓ Status LED: None Contact Material: SILVER ALLOY (AGNI) Control type: Without lockable test button Average Coil Consumption: 0.45 W DC Conventional Enclosed Thermal Current (Ithe): 8 A AT -40…40 °C Minimum switching voltage: 12 V Series: HARMONY ELECTROMECHANICAL RELAYS Rated Operational Voltage: 19.2...26.4 V DC Vibration resistance: +/- 1 mm (F= 10…55 Hz) CONFORMING TO IEC 60068-2-6 Rated Current: 8 A Product Weight: 0.014 kg Manufacturer Test Level Declaration: Level A group mounting Manufacturer Safety Reliability Data: B10D = 100000 Release Voltage Threshold: >= 0.1 UC DC Relay Type: INTERFACE RELAY Product Family: Harmony Marking: CE Protection category: RT I Operating Time: 20 MS OPERATING20 MS RESET Maximum Switching Capacity: 2000 VA/224 W Removable Label: None Operating Ambient Temperature: -40…85 °C (DC) Device Presentation: Complete product Coil Voltage: 24 V - 24 V DC Shock Resistance: 10 Gn (duration = 11 ms) non-operating, per IEC 60068-2-27; 5 Gn (duration = 11 ms) operating, per IEC 60068-2-27 Contact Type and Arrangement: 2 C/O Product Type: plug-in relay Manufacturer Standard Declaration: UL 508; CSA C22.2 No 14; IEC 61810-1
