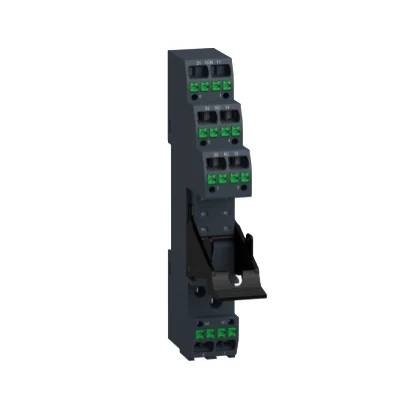

Schneider Electric RSZE08P RSB Relay Socket - Quick Connection - 8-pin
- Brand: Schneider Electric
- SKU: RSZE08P
- MPN: RSZE08P
- Price: 578.24 TRY + VAT · incl. VAT 693.89 TRY
- Availability: Made to order
- Relay Sockets
- Schneider Electric Relay Sockets
- Selection guide: Relay Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RSZE08P Teknik Veri Föyü (PDF)
Schneider Electric RSZE08P RSB Relay Socket - Quick Connection - 8-pin.
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Soket |
| Compatible Products | Takılabilir röle RSB with 1 K/A contact at 16 A; Takılabilir röle RSB with 2 K/A contact at 8 A |
| Contact Arrangement | 2CO |
| Conventional Free Air Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Operational Voltage (Ue) | 250 V (IEC); 300 V (UL) |
| Fixing Method | Takılabilir (35 mm simetrik DIN rayı) |
| Rated Lightning Impulse Withstand Voltage (Up) | 4 kV |
| Overvoltage category | III |
| Pollution Degree | 3 |
| Length | 98 mm |
| Width | 16 mm |
| Height | 60 mm |
| Product Weight | 0.042 kg |
| IP Rating | IP20 |
| Standards | IEC 61984 |
| Certifications | CSA; UL; EAC |
| Conformity Markings | CE |
| Storage Temperature | -40…85 °C |
| Operating Ambient Temperature | -40…85 °C |
