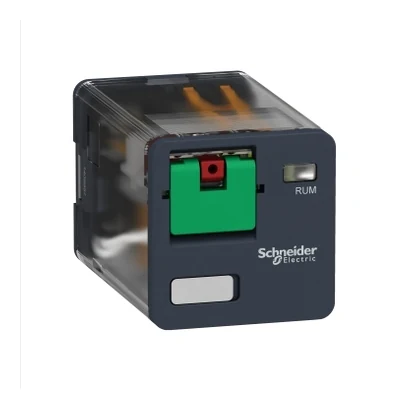

Schneider Electric RUMC31P7 3 pole changeover contact, universal relay, 230VAC
- Brand: Schneider Electric
- SKU: RUMC31P7
- MPN: RUMC31P7
- Price: 1256.55 TRY + VAT · incl. VAT 1507.86 TRY
- Availability: In stock
- Standard Relays
- Schneider Electric Standard Relays
- Selection guide: Standard Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RUMC31P7 Teknik Veri Föyü (PDF)
Schneider Electric RUMC31P7 3 pole changeover contact, universal relay, 230VAC.
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Takılabilir röle |
| Contact Arrangement | 3CO |
| Status LED | None |
| Control Type | Kilitlenebilir test butonu |
| Rated Control Circuit Voltage (Uc) | 230 V AC 50/60 Hz |
| Conventional Enclosed Thermal Current (Ithe) | 10 A @ -40…55 °C |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (1,2/50 µs) |
| Electrical Endurance | 100000 cycles için dirençli load |
| Operating Time | 20 ms nominal gerilimde |
| Rated Insulation Voltage (Ui) | 250 V (IEC); 300 V (CSA); 300 V (UL) |
| Average Resistance | 6800 Ohm @ 20 °C +/- 15 % |
| Mechanical Endurance | 5000000 cycles |
| Safety Reliability Data (MTTFd) | B10d = 100000 |
| Pollution Degree | 2 |
| Operating Position | Herhangi bir konum |
| Device Presentation | Angled |
| Contact Material | AgNi |
| Product Weight | 0.086 kg |
| Operating Ambient Temperature | -40…55 °C |
| IP Rating | IP40 |
| Standards | CSA C22.2 No 14; IEC 61810-1; UL 508 |
| Certifications | EAC; CSA; UL |
| Storage Temperature | -40…85 °C |
| Vibration Resistance | 3 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışan 5 döngü; 4 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışmayan 5 döngü |
| Shock Resistance | 10 gn (süre = 11 ms) için çalışma sırasında (IEC 60068-2-27); 10 gn (süre = 11 ms) için çalışmıyor (IEC 60068-2-27) |
