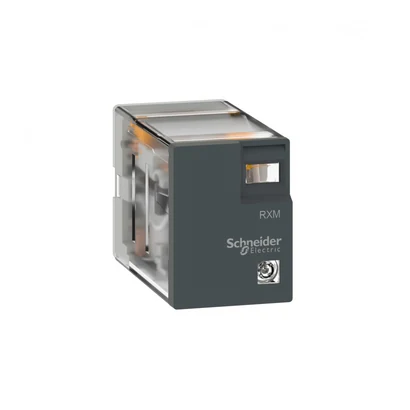

Schneider Electric RXM2LB1B7 24 V AC, Miniature Relays (RXM)
- Brand: Schneider Electric
- SKU: RXM2LB1B7
- MPN: RXM2LB1B7
- Price: 455.92 TRY + VAT · incl. VAT 547.10 TRY
- Availability: Made to order
- General-Purpose Relays
- Schneider Electric General-Purpose Relays
- Selection guide: General-Purpose Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RXM2LB1B7 Teknik Veri Föyü (PDF)
Schneider Electric RXM2LB1B7 24 V AC, Miniature Relays (RXM).
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Takılabilir röle |
| Contact Arrangement | 2CO |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50/60 Hz |
| Conventional Enclosed Thermal Current (Ithe) | 5 A @ -40…55 °C |
| Status LED | None |
| Control Type | Kilitlenebilir test butonu olmadan |
| Rated Insulation Voltage (Ui) | 250 V (IEC) |
| Rated Operational Current (Ie) | 2,5 A @ 28 V DC (NK) (55 °C) (IEC) |
| Minimum Switching Current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| Minimum Switching Voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Average Resistance | 180 Ohm @ 23 °C +/- 10 % |
| Mechanical Endurance | 20000000 cycles |
| Electrical Endurance | 200000 cycles için NA dirençli yük5 A 220 V AC-1 at 23°C; 100000 cycles dirençli load 55 °C'de |
| Safety Reliability Data (MTTFd) | B10d = 100000 |
| Pollution Degree | 3 |
| Operating Position | Herhangi bir konum |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Product Weight | 0.033 kg |
| Standards | CE; IEC 61810-1 (iss. 2); UL 508 |
| Storage Temperature | -40…85 °C |
| Vibration Resistance | 3 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…50 Hz)çalışma (IEC 60068-2-6); 6 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…50 Hz)çalışmıyor (IEC 60068-2-6) |
| Shock Resistance | 30 gn için çalışmıyor (IEC 60068-2-27); 10 gn için çalışma sırasında (IEC 60068-2-27) |
