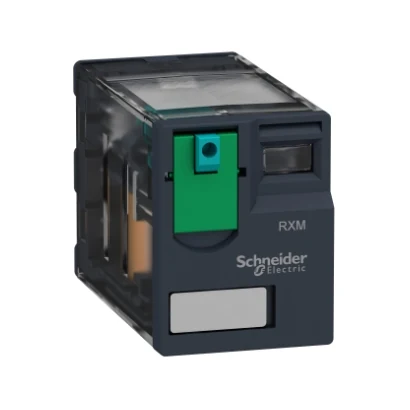

Schneider Electric RXM3AB1FD 110 V DC Miniature Relays (RXM)
- Brand: Schneider Electric
- SKU: RXM3AB1FD
- MPN: RXM3AB1FD
- Price: 922.96 TRY + VAT · incl. VAT 1107.55 TRY
- Availability: Made to order
- General-Purpose Relays
- Schneider Electric General-Purpose Relays
- Selection guide: General-Purpose Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RXM3AB1FD Teknik Veri Föyü (PDF)
Schneider Electric RXM3AB1FD 110 V DC Miniature Relays (RXM).
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Takılabilir röle |
| Contact Arrangement | 3CO |
| Status LED | None |
| Control Type | Kilitlenebilir test butonu |
| Rated Control Circuit Voltage (Uc) | 110 V DC |
| Conventional Enclosed Thermal Current (Ithe) | 10 A |
| Continuous Output Current | 6.7 A |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV süresince 1,2/50 µs |
| Rated Operational Current (Ie) | 10 A @ 28 V (DC) NA (IEC); 10 A @ 250 V (AC) NA (IEC); 5 A @ 28 V (DC) NK (IEC); 5 A @ 250 V (AC) NK (IEC); 10 A @ 30 V (DC) (UL); 10 A @ 277 V (AC) (UL) |
| Electrical Endurance | 100000 cycles için dirençli load |
| Rated Insulation Voltage (Ui) | 250 V (IEC); 300 V (CSA); 300 V (UL) |
| Operating Time | 20 ms |
| Average Resistance | 13440 Ohm @ 20 °C +/- 10 % |
| Mechanical Endurance | 10000000 cycles |
| Safety Reliability Data (MTTFd) | B10d = 100000 |
| Dielectric Strength | 1300 V AC kontaklar arasındaile mikro bağlantı kesme yalıtım; 2000 V AC bobin ve kontak arasında; 2000 V AC kutuplar arasında |
| Pollution Degree | 2 |
| Operating Position | Herhangi bir konum |
| Device Presentation | Angled |
| Contact Material | AgNi |
| Product Weight | 0.037 kg |
| Operating Ambient Temperature | -40…55 °C |
| IP Rating | IP40 |
| Standards | UL 508; IEC 61810-1; CSA C22.2 No 14 |
| Certifications | UL; Lloyd's; CE; CSA; GOST; IECEE CB Şeması |
| Storage Temperature | -40…85 °C |
| Vibration Resistance | 3 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışan 5 döngü; 5 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışmayan 5 döngü |
| Shock Resistance | 10 gn için çalışma sırasında; 30 gn için çalışmıyor |
