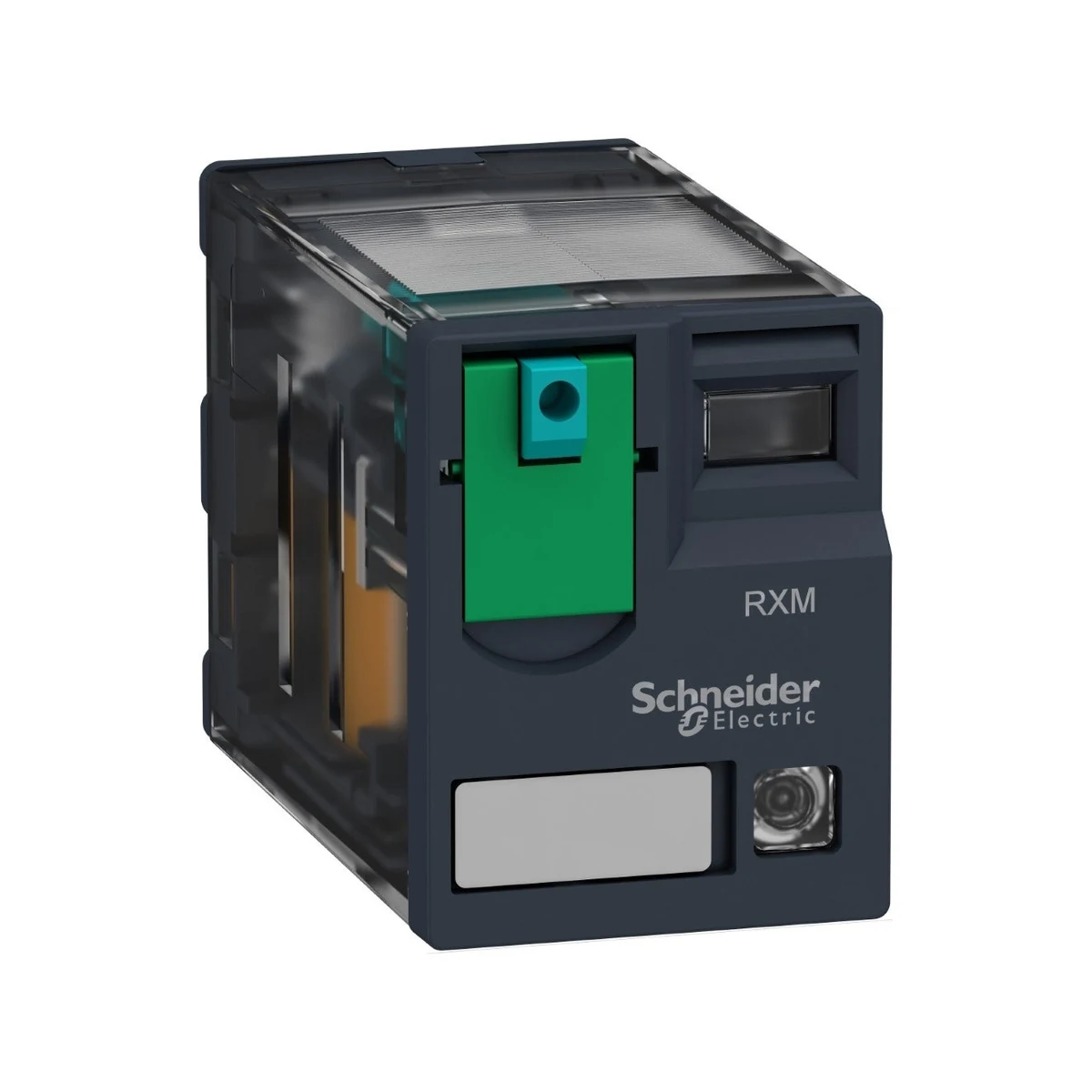

Schneider Electric RXM4AB2BD 6A, 4 POLE 24VDC with LED
- Brand: Schneider Electric
- SKU: RXM4AB2BD
- MPN: RXM4AB2BD
- Price: 872.92 TRY + VAT · incl. VAT 1047.50 TRY
- Availability: In stock
- Standard Relays
- Schneider Electric Standard Relays
- Selection guide: Standard Relays Selection Guide: Technical Criteria and Engineering Practice
Schneider Electric RXM4AB2BD 6A, 4 POLE 24VDC with LED. Technical specifications of this model: Voltage Drop Threshold: >= 0.1 Uc Product Type: Harmony Electromechanical Relays Pollution degree: 2 Operating Position: any position Minimum Switching Capacity: 10 mA, 17 V at 170 mW Average Consumption in W: 0.9 W Contact Material: AgNi Nominal Operating Voltage Limits: 19.2...26.4 V DC Operating speed: <= 1200 cycles/hour at low load & <= 18000 cycles/hour at no load Maximum Switching Capacity: 1500 VA/168 W Product Weight: 0.037 kg Utilization factor: 20% CAD Overall Depth: 80.35 mm Pin Form: flat Control type: lockable test button Contact Type and Arrangement: 4 NC/NO CAD Overall Height: 82.8 mm Series: Harmony Electromechanical Relays Average Resistance: 650 Ohm at 20 °C +/- 10 % Product certificates: CE, CSA, GOST, IECEE CB Scheme, Lloyd's, UL Reset Time: 20 ms Mechanical Endurance: 10000000 cycles [Uimp] Rated Impulse Withstand Voltage: 2.5 kV for 1.2/50 µs Maximum Switching Voltage: 250 V, conforming to IEC Ambient Air Temperature for Operation: -40-55 °C Safety Reliability Data: B10d = 100000 Load Current: 6 A at 250 V AC & 6 A at 28 V DC Protection category: RT I Storage Environmental Conditions: -40-85 °C
| Voltage Drop Threshold | >= 0,1 Uc |
|---|---|
| Product Type | Harmony Elektromekanik Röleler |
| Pollution Degree | 2 |
| Operating Position | Herhangi bir konum |
| Minimum Switching Capacity | 170 mW -de 10 mA, 17 V |
| Average Consumption in W | 0.9 W |
| Contact Material | AgNi |
| Nominal Operating Voltage Limits | 19.2...26.4 V DC |
| Operating Speed | <= 1200 döngü/saat düşük load & <= 18000 döngü/saat yüksüz |
| Maximum Switching Capacity | 1500 VA/168 W |
| Product Weight | 0.037 kg |
| Utilization Factor | 20% |
| CAD Overall Depth | 80.35 mm |
| Pin Form | düz |
| Control Type | Kilitlenebilir test butonu |
| Contact Type and Arrangement | 4 K/A |
| CAD Overall Height | 82.8 mm |
| Series | Harmony Elektromekanik Röleler |
| Average Resistance | 650 Ohm -de 20 °C +/- 10 % |
| Product Certificates | CE, CSA, GOST, IECEE CB Şeması, Lloyd's, UL |
| Reset Time | 20 ms |
| Mechanical Endurance | 10000000 devir |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV süresince 1,2/50 µs |
| Maximum Switching Voltage | 250 V 'e uygunIEC |
| Ambient Air Temperature for Operation | -40-55 °C |
| Safety Reliability Data | B10d = 100000 |
| Load Current | 6 A -de 250 V AC & 6 A -de 28 V DC |
| Protection Category | RT I |
| Storage Environmental Conditions | -40-85 °C |
