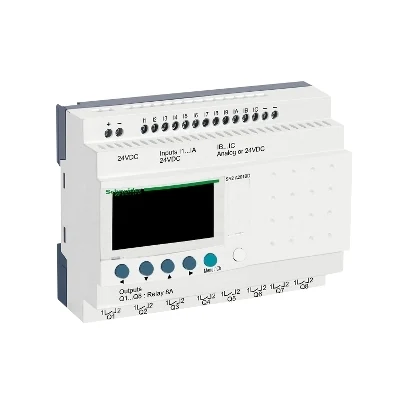

Schneider Electric SR2A201BD Zelio Smart Relay, 20 I/O 24 V DC, Without Clock
- Brand: Schneider Electric
- SKU: SR2A201BD
- MPN: SR2A201BD
- Price: 23574.27 TRY + VAT · incl. VAT 28289.12 TRY
- Availability: Made to order
- Mini PLCs with Display
- Schneider Electric Mini PLCs with Display
- Selection guide: Mini PLCs with Display Selection Guide: Technical Criteria & Application Standards
- Schneider Electric SR2A201BD Teknik Veri Föyü (PDF)
Schneider Electric SR2A201BD Zelio Smart Relay, 20 I/O 24 V DC, Without Clock. Technical specifications of this model: Series: ZELIO
| Series | ZELIO |
|---|---|
| Product Type | Kompakt akıllı röle |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Supply Voltage Limits | 19.2–30 V |
| Maximum Supply Current | 100 mA (uzatma olmadan) |
| Power Loss (W) | 6 W uzatma olmadan |
| Number of Digital Inputs | 12 (IEC 61131-2 Tip 1) |
| Digital Input Type | Dirençli |
| Digital Input Voltage | 24 V DC |
| Input Compatibility | 3 telli yakınlık sensörleri PNP için Dijital giriş |
| Number of Analog Inputs | 2 |
| Analog Input Type | Ortak mod |
| Number of Outputs | 8 röle |
| Contact Arrangement | NA için röle çıkışı |
| Mechanical Endurance | 10000000 cycles için röle çıkışı |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (EN/IEC 60947-1 ve EN/IEC 60664-1) |
| Response Time | 10 ms (durum 0'dan durum 1'e) için röle çıkışı; 5 ms (durum 1'den durum 0'a) için röle çıkışı |
| Tightening Torque | 0,5 N.m |
| Overvoltage category | III (IEC 60664-1) |
| Product Weight | 0.38 kg |
| Micro-Interruption Immunity | 1 ms |
| Certifications | GOST; CSA; GL; UL; C-Tick |
| IP Rating | IP20 (IEC 60529 (terminal bloğu)); IP40 (IEC 60529 (ön panel)) |
| Pollution Degree | 2 (IEC 61131-2) |
| Operating Ambient Temperature | -20…40 °C havalandırılmamış muhafazada (IEC 60068-2-1 ve IEC); 60068-2-2; -20…55 °C (IEC 60068-2-1 ve IEC 60068-2-2) |
| Storage Temperature | -40…70 °C |
| Operating Altitude | 2000 m |
| Relative Humidity | 95 % yoğuşma veya damlayan su olmadan |
