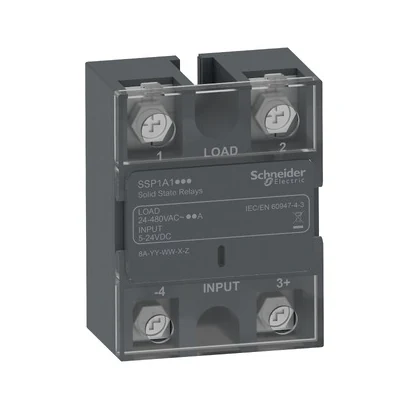

Schneider Electric SSP1A175BDE 1P SSR 75A 24-480VAC Zero,5-24VDC
- Brand: Schneider Electric
- SKU: SSP1A175BDE
- MPN: SSP1A175BDE
- Price: 3085.78 TRY + VAT · incl. VAT 3702.94 TRY
- Availability: Made to order
- Solid State Relays (SSR)
- Schneider Electric Solid State Relays (SSR)
- Selection guide: Solid State Relays (SSR) Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric SSP1A175BDE Teknik Veri Föyü (PDF)
Schneider Electric SSP1A175BDE 1P SSR 75A 24-480VAC Zero,5-24VDC.
| Series | Harmony Katı Hal Röleleri |
|---|---|
| Product Type | 75 A'e kadar katı hal rölesi |
| Mounting Support | Panel |
| Rated Current (Ir) | 75 A |
| Rated Control Circuit Voltage (Uc) | 4…32 V DC |
| Minimum Switching Voltage | 4 V DC açma |
| Response Time | 0,5 döngü (açma) |
| Maximum Leakage Current | 1 mA devre dışı |
| Insulation Resistance | 500 MOhm @ 500 V DC |
| Dielectric Strength | 3,8 kV AC için giriş/çıkış; 2 kV AC için çıkış bağlantısı |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV çıkıştan gövdeye; 6 kV girişten çıkışa |
| Tightening Torque | 1,5…1,7 N.m için giriş; 2…2.4 N.m için çıkış |
| IP Rating | IP10 |
| Product Weight | 115 g |
| Width | 59 mm |
| Height | 45 mm |
| Depth | 29 mm |
| Device Presentation | Angled |
| Operating Ambient Temperature | -30…80 °C |
| Storage Temperature | -30…100 °C |
| Pollution Degree | 2 |
| Overvoltage category | III |
| Certifications | UL; CE; UKCA; TÜV; RoHS; REACH |
| Conformity Markings | UL; CE; UKCA; TÜV |
| Standards | UL 508; EN/IEC 60947-4-3; EN/IEC 62314; CSA C22.2 No 14 |
