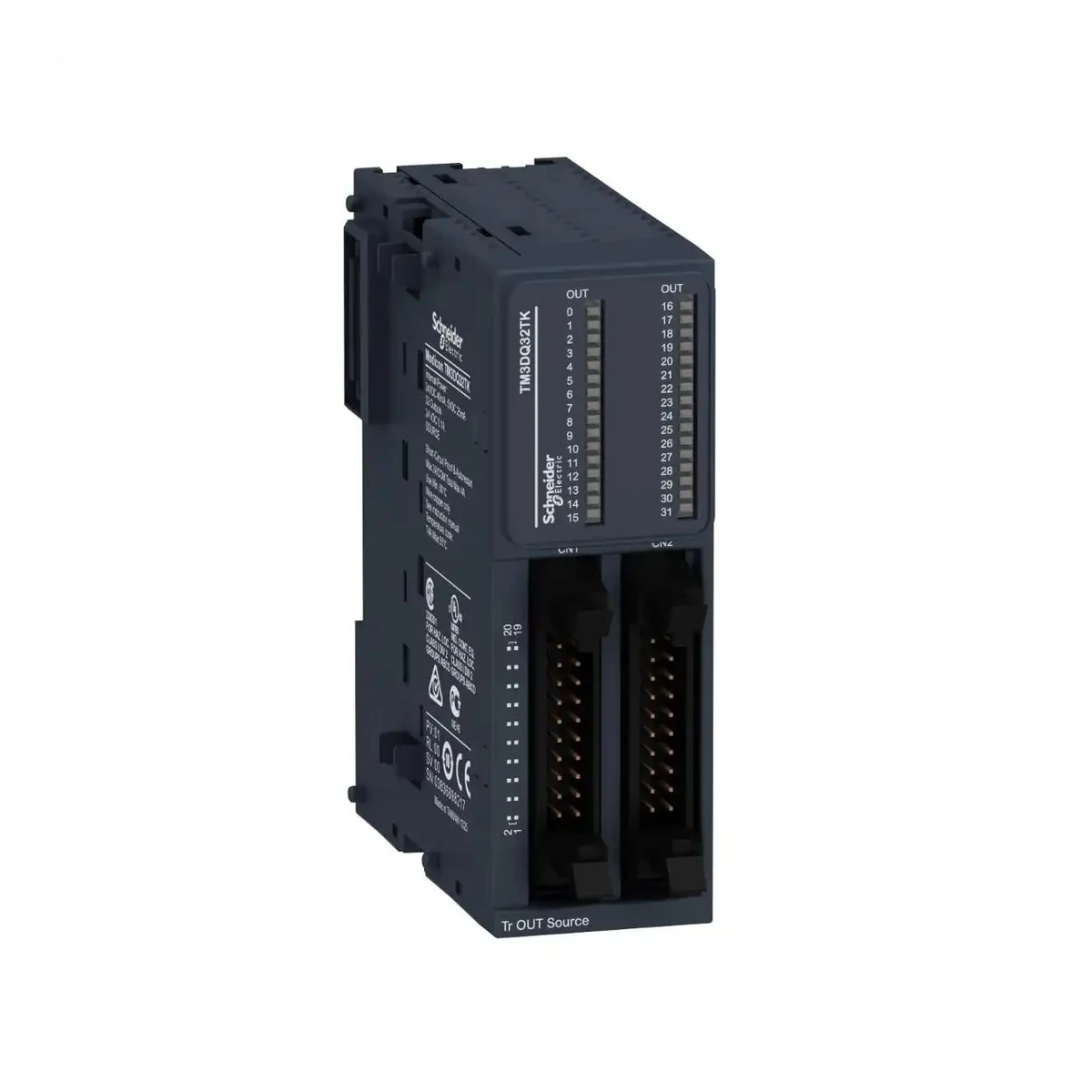

Schneider Electric TM3DQ32TK TM3 I/O Module, 32DO, Transistor, Source, HE10 connector
- Brand: Schneider Electric
- SKU: TM3DQ32TK
- MPN: TM3DQ32TK
- Price: 35361.41 TRY + VAT · incl. VAT 42433.69 TRY
- Availability: In stock
- Digital Output Modules
- Schneider Electric Digital Output Modules
- Selection guide: Digital Output Modules Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric TM3DQ32TK Teknik Veri Föyü (PDF)
Schneider Electric TM3DQ32TK TM3 I/O Module, 32DO, Transistor, Source, HE10 connector. Technical specifications of this model: Number of Digital Outputs: 32
| Number of Digital Outputs | 32 |
|---|---|
| Series | Modicon TM3 |
| Product Type | Dijital Çıkış Modülü |
| Compatible Series | Modicon M241; Modicon M251; Modicon M221; Modicon M262 |
| Device Application | Endüstriyel uygulama |
| Power Supply Type | Electronic powered by internal bus |
| Typical Current Consumption | 5 mA @ 5 V DC; 0 mA @ 24 V DC; 20 mA @ 5 V DC; 10 mA @ 24 V DC |
| Electrical Connection | HE-10 konnektör çıkışlar için |
| Maximum Cable Distance Between Devices | Ekransız kablo: <5 m için transistör çıkışı |
| Local Signalling | Kanal başına 1 LED (yeşil) for çıkış durumu |
| Enclosure Colour | Grey |
| Mounting Support | Silindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); sabitleme kitli plaka veya panel |
| Height | 90 mm |
| Width | 33.5 mm |
| Depth | 81.3 mm |
| Product Weight | 0.112 kg |
| IP Rating | IP20 |
| Conformity Markings | CE |
| Certifications | CE; CULus; UKCA; RCM; EAC; CULus HazLoc |
| Standards | IEC 61131-2 |
| Operating Ambient Temperature | -10…35 °C (dikey kurulum); -10…55 °C (yatay kurulum) |
| Storage Temperature | -25…70 °C |
| Relative Humidity | 10…95 % çalışma için yoğuşmasız; 10…95 % Storage için yoğuşmasız |
| Operating Altitude | 0–2000 m |
| Pollution Degree | 2 |
| Shock Resistance | 15 gn için 11 ms |
