Schneider Electric TMSES4 Ethernet Smart Communication Module
- Brand: Schneider Electric
- SKU: TMSES4
- MPN: TMSES4
- Price: 55822.10 TRY + VAT · incl. VAT 66986.52 TRY
- Availability: Made to order
- Communication Modules
- Schneider Electric Communication Modules
- Selection guide: Communication Modules Selection Guide: Technical Criteria & Application Standards
- Schneider Electric TMSES4 Teknik Veri Föyü (PDF)

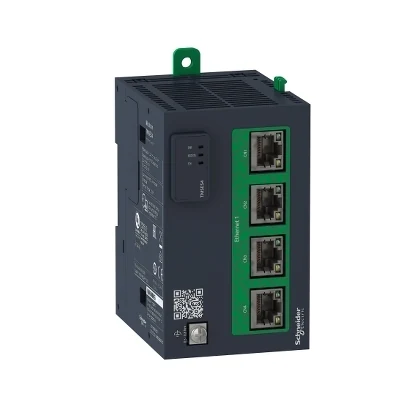

Schneider Electric TMSES4 Ethernet Smart Communication Module.
| Series | Modicon M262 |
|---|---|
| Product Type | Akıllı haberleşme modülü |
| Compatible Series | Modicon M262 |
| Current Consumption | 200 mA @ 24 V |
| Ethernet Port | 10/100/1000 BASE-TX - 4 port(lar) RJ45 |
| Web Services | Web sunucusu |
| Communication Protocol | Ethernet |
| Local Signalling | 1 LED (yeşil) for PWR; 1 LED for MOD STS; 1 LED for ETH |
| Mounting Support | Silindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); sabitleme kitli plaka veya panel |
| Width | 60 mm |
| Height | 100 mm |
| Depth | 88.3 mm |
| Standards | UL 61010-1; UL 61010-2-201; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201; CSA C22.2 No 213; ANSI/ISA 12-12-01; IEC 61131-2; - |
| Certifications | CE; cULus; RCM; EAC (beklemede) |
| Electrostatic Discharge Immunity | 4 kV kontakta (IEC 61000-4-2); 8 kV havada (IEC 61000-4-2) |
| Radiated Electromagnetic Field Immunity | 10 V/m 80 MHz...1 GHz (IEC 61000-4-3); 3 V/m 1,4 GHz...2 GHz (IEC 61000-4-3); 1 V/m 2 GHz...3 GHz (IEC 61000-4-3) |
| Operating Ambient Temperature | -20…60 °C yatay kurulum; -20…50 °C dikey kurulum |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 10…95 %, yoğuşmasız (çalışma sırasında); 10…95 %, yoğuşmasız (Storage sırasında) |
| IP Rating | IP20 |
| Pollution Degree | 2 |
| Operating Altitude | 0–2000 m |
| Shock Resistance | 15 gn için 11 ms |
