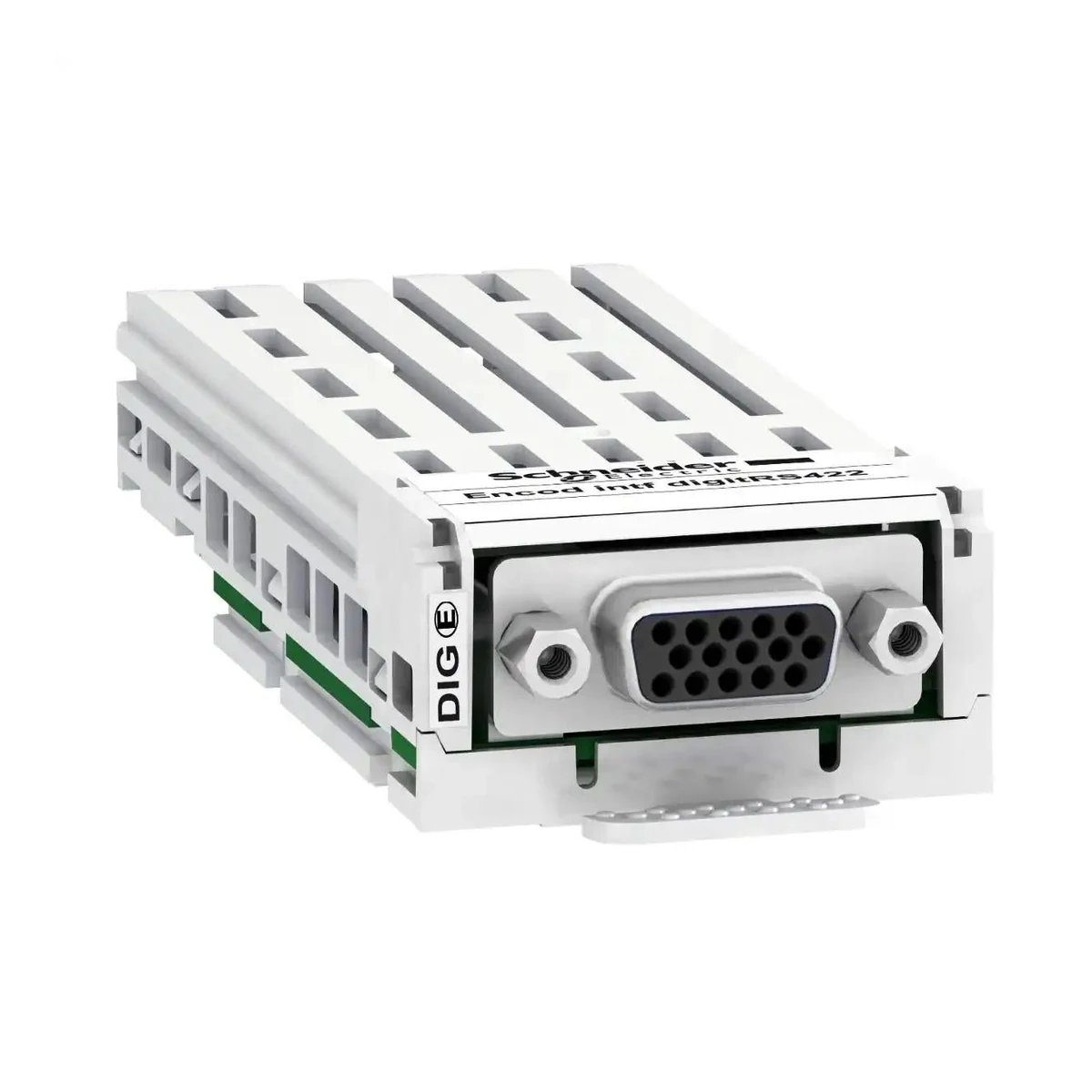

Schneider Electric VW3A3420 RS422 Digital Encoder interface
- Brand: Schneider Electric
- SKU: VW3A3420
- MPN: VW3A3420
- Price: 14733.92 TRY + VAT · incl. VAT 17680.70 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric VW3A3420 Teknik Veri Föyü (PDF)
Schneider Electric VW3A3420 RS422 Digital Encoder interface.
| Series | Altivar |
|---|---|
| Product Type | Dijital enkoder arayüz modülü |
| Compatible Series | Altivar Process ATV900; Altivar Process Modular; Altivar Machine ATV340 |
| Communication Protocol | RS422 |
| Encoder Type | EnDat 2.2; A/B/I artımlı XCC1 tip R; A/B/I artımlı XCC1 tip X; SSI mutlak enkoder XCC2 tip SG; SSI mutlak enkoder XCC3 tip SB |
| Rated Control Supply Voltage (Us) | 5 V DC (gerilim limitleri: 4,75…5,25 V); 12 V DC (gerilim limitleri: 11,4…12,6 V); 24 V DC (gerilim limitleri: 22,8…25,2 V) |
| Maximum Supply Current | 0,25 A @ 5 V DC; 0,1 A @ 12 V DC; 0,1 A @ 24 V DC |
| Protection Type | Kısa devre koruması; Aşırı load koruması |
| Maximum Cable Distance Between Devices | 100 m (A/B/I); 50 m (SSI); 100 m (SSI)300 kHz'de; 50 m (EnDat 2.2); 100 m (EnDat 2.2)yayılma geciktirme telafili |
| Maximum Operating Frequency | 1000 kHz |
| Connector Type | 1 dişi yüksek yoğunluk SUB-D 15 |
| Product Weight | 0.15 kg |
