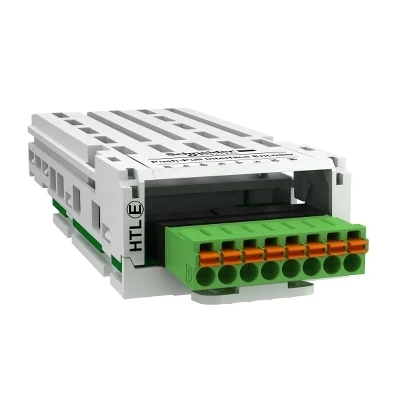

Schneider Electric VW3A3424 RS-422 output incremental type 24 V encoder interface Module
- Brand: Schneider Electric
- SKU: VW3A3424
- MPN: VW3A3424
- Price: 16568.71 TRY + VAT · incl. VAT 19882.45 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric VW3A3424 Teknik Veri Föyü (PDF)
Schneider Electric VW3A3424 RS-422 output incremental type 24 V encoder interface Module. Technical specifications of this model: Specified Operating Voltage: 24 V
| Specified Operating Voltage | 24 V |
|---|---|
| Series | Altivar |
| Product Type | Enkoder arayüz modülü |
| Compatible Series | Altivar Process ATV900; Altivar Process Modular; Altivar Machine ATV340 |
| Encoder Type | High threshold logic (HTL) |
| Rated Control Supply Voltage (Us) | 12 V DC; 15 V DC; 24 V DC |
| Maximum Supply Current | 0,2 A @ 12 V DC; 0,175 A @ 15 V DC; 0,1 A @ 24 V DC |
| Protection Type | Kısa devre koruması; Aşırı load koruması |
| Maximum Cable Distance Between Devices | 500 m |
| Maximum Operating Frequency | 300 kHz |
| Connector Type | 1 removable spring connector |
| Product Weight | 0.15 kg |
