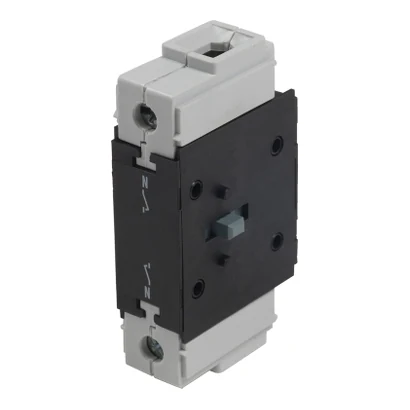

Schneider Electric VZ12 TeSys VARIO Additional Neutral Block 80A
- Brand: Schneider Electric
- SKU: VZ12
- MPN: VZ12
- Price: 1579.03 TRY + VAT · incl. VAT 1894.84 TRY
- Availability: In stock
- Contactor Accessories
- Schneider Electric Contactor Accessories
- Selection guide: Contactor Accessories Selection Guide
- Schneider Electric VZ12 Teknik Veri Föyü (PDF)
Schneider Electric VZ12 TeSys VARIO Additional Neutral Block 80A. Technical specifications of this model: Series: TeSys VARIO
| Series | TeSys VARIO |
|---|---|
| Product Type | Ek nötr blok |
| Performance Level | Yüksek performans |
| Pole Arrangement | 1P+N |
| Contact Arrangement | 1NO |
| Contact Operation Type | Erken kapama, geç kesme |
| Compatible Products | V3; V4 |
| Compatible Series | TeSys TeSys VARIO bağlantı kesici |
| Current Type | AC; DC |
| Mains Frequency | 50/60 Hz |
| Mounting Position | Sol; Sağ |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Free Air Thermal Current (Ith) | 80 A |
| Mechanical Endurance | 30000 cycles |
| Electrical Endurance | 30000 cycles DC-1…5; 30000 cycles AC-21 |
| Connection Terminals | Vida kelepçesi terminalleri kablo 16 mm² - kablo sertligi: esnek - Kablo uçlu; Vida kelepçesi terminalleri kablo 25 mm² - kablo sertligi: katı |
| Tightening Torque | 4 N.m - üzerinde vida kelepçesi terminalleri |
| Height | 83 mm |
| Width | 20 mm |
| Depth | 46 mm |
| Product Weight | 0.1 kg |
| Standards | IEC 60947-3 |
| Certifications | GL; UL; CSA; UKCA |
| IP Rating | IP20 |
| Mechanical Durability | Titreşimler 10…150 Hz (1 gn) (IEC 60068-2-6); Şoklar 11 ms (15 gn) (IEC 60068-2-27) |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
