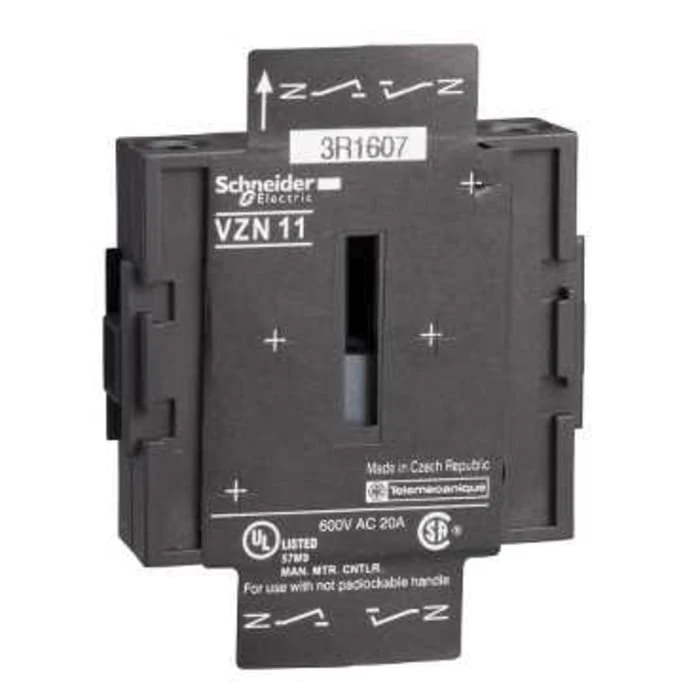

Schneider Electric VZN11 TeSys MiniVARIO Additional Neutral Block 20A
- Brand: Schneider Electric
- SKU: VZN11
- MPN: VZN11
- Price: 1011.92 TRY + VAT · incl. VAT 1214.30 TRY
- Availability: Made to order
- Contactor Accessories
- Schneider Electric Contactor Accessories
- Selection guide: Contactor Accessories Selection Guide
- Schneider Electric VZN11 Teknik Veri Föyü (PDF)
Schneider Electric VZN11 TeSys MiniVARIO Additional Neutral Block 20A.
| Series | TeSys |
|---|---|
| Product Type | Ek nötr blok |
| Performance Level | Standard |
| Pole Arrangement | 1P+N |
| Contact Arrangement | 1NO |
| Contact Operation Type | Erken kapama, geç kesme |
| Compatible Products | VN12; VN20 |
| Current Type | AC; DC |
| Mains Frequency | 50/60 Hz |
| Mounting Position | sağ |
| Compatible Series | TeSys TeSys VARIO VCFN bağlantı kesici |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Free Air Thermal Current (Ith) | 20 A |
| Conventional Enclosed Thermal Current (Ithe) | 16 A |
| Mechanical Endurance | 50000 cycles |
| Electrical Endurance | 30000 cycles DC-1…5; 50000 cycles AC-21 |
| Connection Terminals | Vida kelepçesi terminalleri kablo 4 mm² - kablo sertligi: esnek - Kablo uçlu; Vida kelepçesi terminalleri kablo 4 mm² - kablo sertligi: katı |
| Tightening Torque | 0,7 N.m - üzerinde vida kelepçesi terminalleri |
| Height | 45.5 mm |
| Width | 12 mm |
| Depth | 39 mm |
| Product Weight | 0.02 kg |
| Standards | IEC 60947-3 |
| Certifications | CSA; GL; UL |
| IP Rating | IP20 |
| Mechanical Durability | Titreşimler 10…150 Hz (1 gn) (IEC 60068-2-6); Şoklar 11 ms (15 gn) (IEC 60068-2-27) |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
