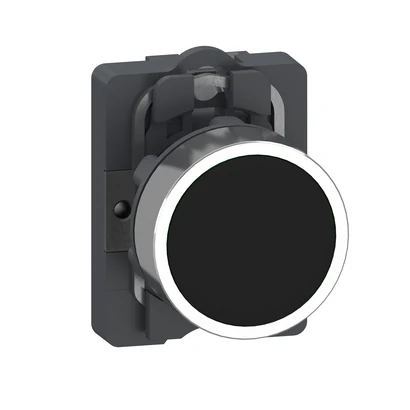

Schneider Electric XA2AH021 Push Button, Push-Push, Flush-Mounted, Black, 1NO
- Brand: Schneider Electric
- SKU: XA2AH021
- MPN: XA2AH021
- Price: 405.88 TRY + VAT · incl. VAT 487.06 TRY
- Availability: In stock
- Maintained Push Buttons
- Selection guide: Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XA2AH021 Teknik Veri Föyü (PDF)
Schneider Electric XA2AH021 Push Button, Push-Push, Flush-Mounted, Black, 1NO. Technical specifications of this model: Series: XA2-Easy Contact Arrangement: 1NO
| Contact Arrangement | 1NO |
|---|---|
| Series | XA2-Easy |
| Product Type | Eksiksiz basmalı düğme |
| Device Presentation | Angled |
| Bezel Material | Plastic |
| Fixing Ring Material | Plastic |
| Mounting Diameter | 22.5 mm |
| Operating Position | Herhangi bir konum |
| Fixing Centres | >= 30 x 40 mm (panel) 1…5 mm |
| Fixing Method | Sabitleme somunu: 2…2,4 N.m |
| Signalling Head Shape | Round |
| Operator Profile | Black sıva altı, işaretsiz |
| Contact Operation Type | Yavaş kesen |
| Mechanical Endurance | 500000 cycles |
| Connection Terminals | Vida kelepçesi terminali, <= 2 x 1,5 mm²; Vida kelepçesi terminali, <= 1 x 2,5 mm²; Vida kelepçesi terminali, >= 1 x 0,5 mm²; Faston terminaller 6,3 mm |
| Tightening Torque | 0,8…1,2 N.m |
| Short-Circuit Protection | 10 A gL sigorta (IEC 60269-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Rated Operational Current (Ie) | 3 A @ 240 V, AC-15, A600; 0,27 A @ 250 V, DC-13, Q600 |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-8) @ 24 V ve 5 mA (IEC 60947-5-4) |
| Width | 30 mm |
| Height | 43 mm |
| Depth | 55 mm |
| Product Weight | 0.035 kg |
| Head / Lens Colour | Black |
| Operating Mechanism Type | çekme-çekme |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…55 °C |
| IP Rating | IP65 |
| IK Impact Protection | IK03 (IEC 60529) |
| Standards | GB 14048.1; IEC 60947-1; GB 14048.5; IEC 60947-5-1 |
| Certifications | CCC; CE; UKCA |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
