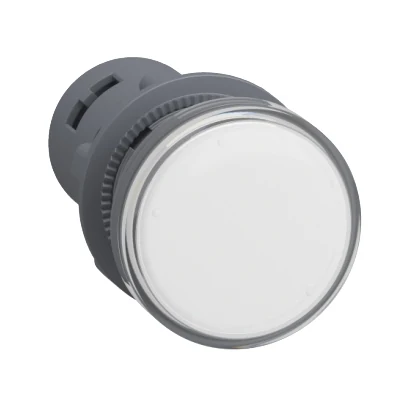

Schneider Electric XA2EVB1LC White Pilot Light 24V AC/ DC
- Brand: Schneider Electric
- SKU: XA2EVB1LC
- MPN: XA2EVB1LC
- Price: 216.84 TRY + VAT · incl. VAT 260.21 TRY
- Availability: In stock
- Pilot Lights
- Schneider Electric Pilot Lights
- Selection guide: Pilot Light Selection Guide
- Schneider Electric XA2EVB1LC Teknik Veri Föyü (PDF)
Schneider Electric XA2EVB1LC White Pilot Light 24V AC/ DC. Technical specifications of this model: Series: XA2-Easy Color: White
| Color | White |
|---|---|
| Series | XA2-Easy |
| Product Type | Monolit pilot ışığı |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Round |
| Head / Lens Colour | White |
| Light Source | COB clustered LED |
| Lamp Holder Type | Ampulsüz |
| Rated Control Supply Voltage (Us) | 24 V AC/DC 50/60 Hz |
| Terminal Designation (ISO) | (X1-X2)PL |
| Device Mounting | Sabitleme deliği - çap: 22,5 mm +/- 0.2 (IEC 60947-5-1) |
| Fixing Centres | >= 30 x 40 mm (destek paneli) metal 1…6 mm; >= 30 x 40 mm (destek paneli) plastik 2…6 mm |
| Fixing Method | Sabitleme somunu baş altı tavsiye edilen tork: 2,2 N.m (+/- 0.2 N.m) |
| Conformity Markings | CE; CCC |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,5…1 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Tightening Torque | 0,8…1 N.m (IEC 60947-1) |
| Screw Head Shape | Çapraz ile uyumludur Philips No 2 tornavida; Slotlu ile uyumludur düz Ø 4 mm tornavida; Slotlu ile uyumludur düz Ø 5,5 mm tornavida |
| Rated Insulation Voltage (Ui) | 400 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Signalling Type | Fixed |
| Supply Voltage Limits | 0,8…1,2 V AC/DC |
| Current Consumption | <= 20 mA |
| Service Life | 40000 h nominal gerilimde ve 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Product Weight | 0.02 kg |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| IP Rating | IP65 |
| IK Impact Protection | IK05 |
| Standards | IEC 60947-5-1; GB 14048.1; IEC 60947-1; GB 14048.5; IEC 60529; IEC 50102 |
| Certifications | CCC; CE |
| Vibration Resistance | 5 gn (f= 12…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
