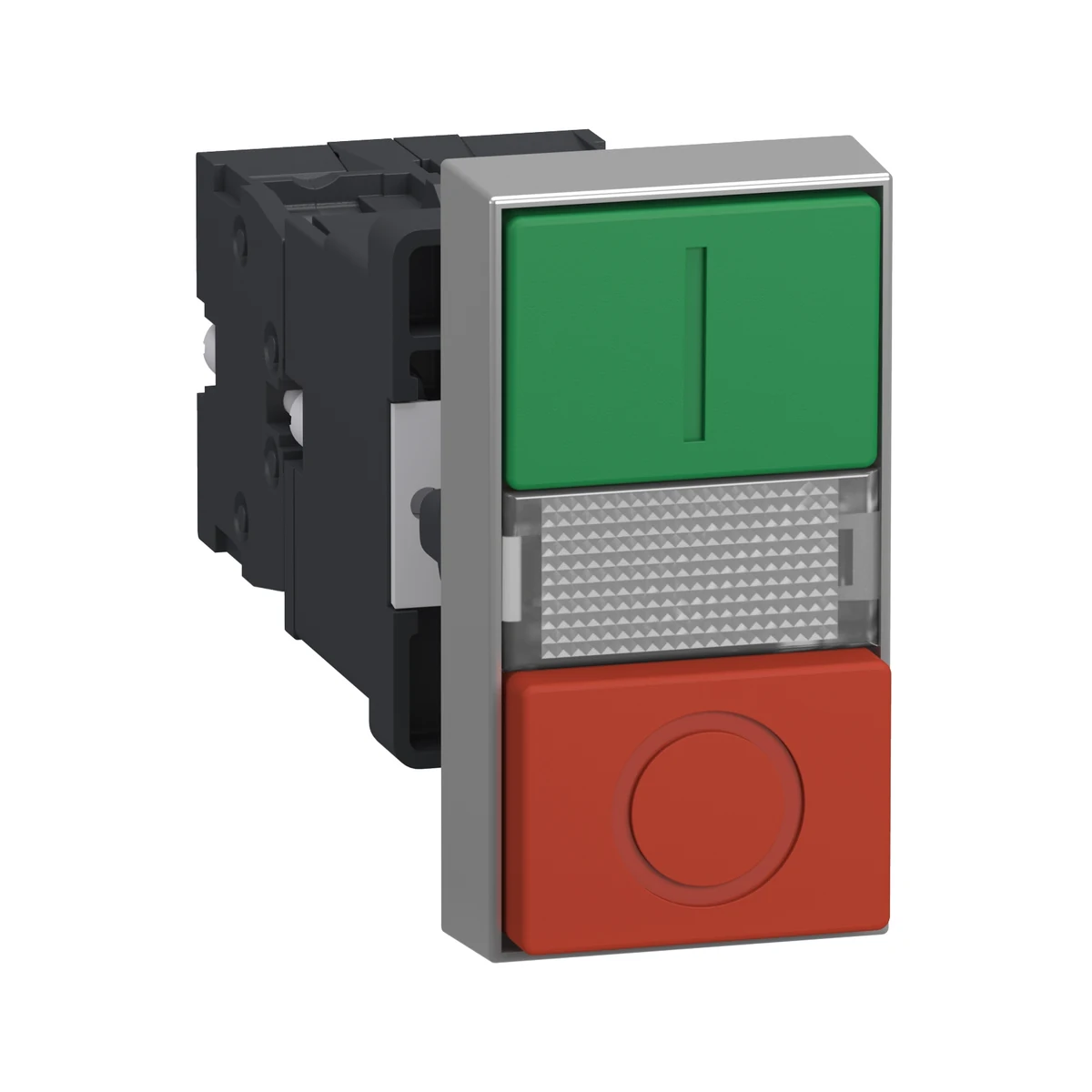

Schneider Electric XA2EW7L3741B5 Double, Spring-Return, Built-in "Protected LED" 24V AC/DC Supply
- Brand: Schneider Electric
- SKU: XA2EW7L3741B5
- MPN: XA2EW7L3741B5
- Price: 939.64 TRY + VAT · incl. VAT 1127.57 TRY
- Availability: In stock
- Double and Triple Push Buttons
- Schneider Electric Double and Triple Push Buttons
- Selection guide: Double and Triple Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XA2EW7L3741B5 Teknik Veri Föyü (PDF)
Schneider Electric XA2EW7L3741B5 Double, Spring-Return, Built-in "Protected LED" 24V AC/DC Supply. Technical specifications of this model: Series: XA2-Easy
| Series | XA2-Easy |
|---|---|
| Product Type | Eksiksiz ışıklı çift başlıklı basmalı düğme |
| Bezel Material | Plastic |
| Fixing Ring Material | Plastic |
| Light Source Color | White |
| Device Presentation | Angled |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Dikdörtgen |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Yeşil sıva altı, I (green); Kırmızı sıva altı, O (red) |
| Contact Arrangement | 1NO+1NC |
| Contact Operation Type | Yavaş kesen |
| Contact Usage | Standart kontaklar |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 1,75 mm (NK değişimi elektrik durumu); 2,65 mm (Elektrik durumu değişimi YOK) |
| Mechanical Endurance | 500000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Screw Head Shape | Çapraz |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A gL sigorta (IEC 60269-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Rated Operational Current (Ie) | 3 A @ 240 V, AC-15, A600 (IEC 60947-5-1); 0,27 A @ 250 V, DC-13, Q600 (IEC 60947-5-1) |
| Electrical Endurance | 500000 cycles, AC-15, 3 A @ 240 V, çalisma hizi <3600 cyc/h, load faktörü: 0,5 'e; uygunIEC 60947-5-1 ek C |
| Signalling Type | Fixed |
| Light Source | Korumalı LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 24 V AC/DC @ 50/60 Hz |
| Supply Voltage Limits | 0,8…1,2 V AC/DC |
| Current Consumption | 20 mA |
| Service Life | 10000 h |
| Surge Immunity | 1 kV (IEC 61000-4-5) |
| Terminal Designation (ISO) | (13-14)NO; (11-12)NC |
| Width | 29.8 mm |
| Height | 81.3 mm |
| Depth | 55.4 mm |
| Product Weight | 0.072 kg |
| Head / Lens Colour | Yeşil + kırmızı |
| Storage Temperature | -40…85 °C |
