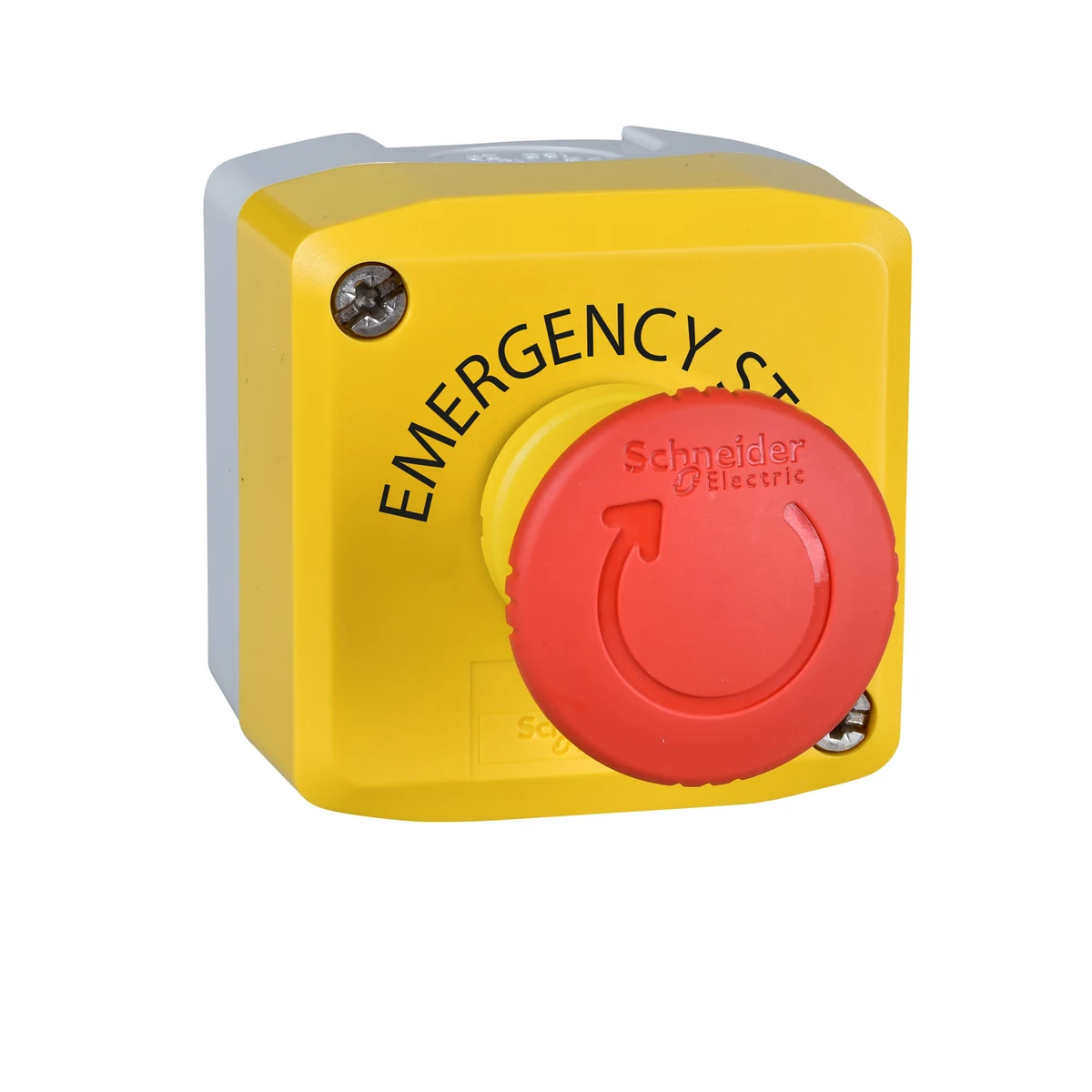

Schneider Electric XALK1781H29 EMERGENCY STOP CONT. BOX
- Brand: Schneider Electric
- SKU: XALK1781H29
- MPN: XALK1781H29
- Price: 3113.58 TRY + VAT · incl. VAT 3736.30 TRY
- Availability: In stock
- Emergency Stop Buttons
- Schneider Electric Emergency Stop Buttons
- Selection guide: Emergency Stop Buttons Selection Guide
- Schneider Electric XALK1781H29 Teknik Veri Föyü (PDF)
Schneider Electric XALK1781H29 EMERGENCY STOP CONT. BOX.
| Series | Harmony XALK |
|---|---|
| Product Type | Eksiksiz kontrol istasyonu |
| Intended Field of Application | XB5 Ø 22 mm kontrol ve sinyalleme birimleri için |
| Control Station Application | Acil durdurma fonkisyonu |
| Enclosure Base Colour | Açık gri (RAL 7035) |
| Cover Color | Sarı (RAL 1021) |
| Material | Polikarbonat |
| Operator Profile | 1 mantar başlık basmalı düğmesi |
| Operator Description | Kırmızı 'ACİL DURDURMA' 1 NK |
| Reset Type | Döndürülerek serbest bırakılan |
| Control Station Arrangement | 1 mantar başlık Ø 40 mm basmalı düğmesi, kırmızı 1 NK ACİL DURDURMA isaret |
| Contact Operation Type | Yavaş kesen |
| Cable Entry | Kablo girişi için 1 knock-out 0…14 mm; Pg 13 kablo rakoru ve ISO M20 için 2 knock-out 0…12 mm |
| Product Weight | 0.194 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Number of Command Positions | 1 |
| Number of Indicator Lights | 0 |
| Number of Buttons | 0 |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 1,5 mm (NK değişimi elektrik durumu); 4,3 mm (toplam hareket) |
| Operating Force | 44 N |
| Number of Selector Switches | 0 |
| Mechanical Endurance | 300000 cycles |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Number of Key Switches | 0 |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Number of Mushroom Push-buttons | 1 |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Emergency Power Off (EPO) | No |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V, 1 mA (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V, 5 mA (IEC 60947-5-4) |
| Number of NC Contacts | 1 |
| Number of NO Contacts | 0 |
| Number of Changeover Contacts | 0 |
| Housing Material | Plastic |
| Enclosure Colour | Yellow |
| Storage Temperature | -40…70 °C |
