Schneider Electric XB4BK135M5 Illuminated Selector Switch 3-Position Maintained
- Brand: Schneider Electric
- SKU: XB4BK135M5
- MPN: XB4BK135M5
- Price: 3141.38 TRY + VAT · incl. VAT 3769.66 TRY
- Availability: In stock
- Selector Push Buttons
- Schneider Electric Selector Push Buttons
- Selection guide: Selector Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XB4BK135M5 Teknik Veri Föyü (PDF)

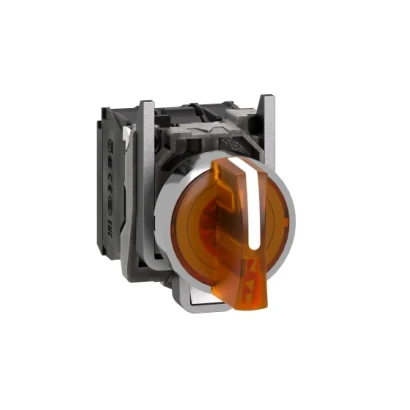

Schneider Electric XB4BK135M5 Illuminated Selector Switch 3-Position Maintained.
| Series | Harmony XB4 |
|---|---|
| Product Type | Işıklı seçici anahtar |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Round |
| Operating Mechanism Type | Fixed |
| Operator Profile | Turuncu standart kol |
| Operator Position Information | 3 konum +/- 45° |
| Contact Arrangement | 1NO+1NC |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Light Source | Evrensel LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 230…240 V AC @ 50/60 Hz |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Contact Usage | Standart kontaklar |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Torque | 0,14 N.m Elektrik durumu değişimi YOK |
| Mechanical Endurance | 500000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V ve 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V ve 5 mA temiz ortamda (IEC 60947-5-4) |
| Signalling Type | Fixed |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service Life | 100000 h nominal gerilimde ve 25 °C |
| Surge Immunity | 1 kV (IEC 61000-4-5) |
| Device Presentation | Angled |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| Electric Shock Protection Class | Sınıf I (IEC 60536) |
| IP Rating | IP66 (IEC 60529); IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Impact Protection | IK04 (IEC 50102) |
