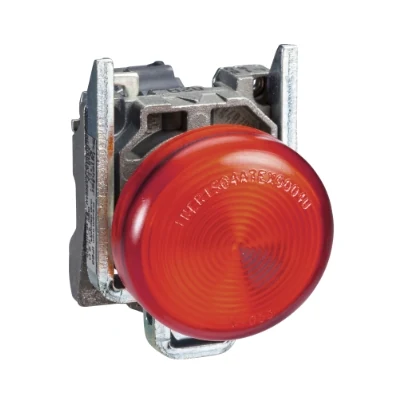

Schneider Electric XB4BV64 Direct Supply Pilot Light
- Brand: Schneider Electric
- SKU: XB4BV64
- MPN: XB4BV64
- Price: 733.92 TRY + VAT · incl. VAT 880.70 TRY
- Availability: In stock
- Pilot Lights
- Schneider Electric Pilot Lights
- Selection guide: Pilot Light Selection Guide
- Schneider Electric XB4BV64 Teknik Veri Föyü (PDF)
Schneider Electric XB4BV64 Direct Supply Pilot Light.
| Series | Harmony XB4 |
|---|---|
| Product Type | Pilot ışığı |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Round |
| Head / Lens Colour | Red |
| Operator Additional Information | Daz lens ile |
| Light Source | Ampul dahil değil |
| Lamp Holder Type | BA 9 s |
| Light Block Supply Type | Doğrudan <2,4 W |
| Rated Control Supply Voltage (Us) | <= 250 V |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 55 mm |
| Terminal Designation (ISO) | (X1-X2)PL |
| Product Weight | 0.075 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,22…2 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Signalling Type | Fixed |
| Device Presentation | Angled |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…55 °C |
| Electric Shock Protection Class | Sınıf I (IEC 60536) |
| IP Rating | IP66 (IEC 60529); IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Impact Protection | IK06 (IEC 50102) |
| Standards | UL 508; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-5; JIS C8201-1 |
| Certifications | UL listeli; CSA |
| Vibration Resistance | 5 gn (f= 12…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
