Schneider Electric XB4BW73731M5 ILLUMINATED PUSHBUTTON
- Brand: Schneider Electric
- SKU: XB4BW73731M5
- MPN: XB4BW73731M5
- Price: 3057.98 TRY + VAT · incl. VAT 3669.58 TRY
- Availability: In stock
- Selector Push Buttons
- Schneider Electric Selector Push Buttons
- Selection guide: Selector Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XB4BW73731M5 Teknik Veri Föyü (PDF)

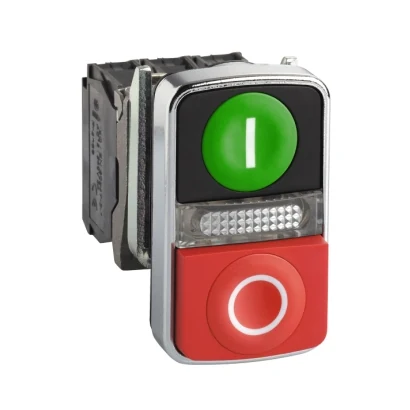

Schneider Electric XB4BW73731M5 ILLUMINATED PUSHBUTTON.
| Series | Harmony XB4 |
|---|---|
| Product Type | Işııklı çift başlı yaylı buton |
| Bezel Material | Krom kaplı metal |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Marking Colour | White başlıklarda siyah işaret; Yeşil, kırmızı veya siyah başlıklarda beyaz işaret |
| Light Source | Korumalı LED |
| Light Source Color | White |
| Device Presentation | Angled |
| Fixing Ring Material | Zamak |
| Height | 50 mm |
| Width | 30 mm |
| Depth | 59 mm |
| Product Weight | 0.13 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Signalling Head Shape | Dikdörtgen |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | 1 sıva altı - 1 çıkık Buton - 1 merkezi pilot ışığı |
| Operator Description | Yeşil ''G'' - kırmızı ''Ç'' |
| Contact Arrangement | 1NO+1NC |
| Contact Operation Type | Yavaş kesen |
| Contact Usage | Standart kontaklar |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 1,5 mm (NK değişimi elektrik durumu); 2,6 mm (Elektrik durumu değişimi YOK); 4,3 mm (toplam hareket) |
| Operating Force | 3,5 N NK değişimi elektrik durumu; 3,8 N Elektrik durumu değişimi YOK |
| Mechanical Endurance | 1000000 cycles |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V ve 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V ve 5 mA temiz ortamda (IEC 60947-5-4) |
| Signalling Type | Fixed |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 230…240 V AC @ 50/60 Hz |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service Life | 100000 h nominal gerilimde ve 25 °C |
