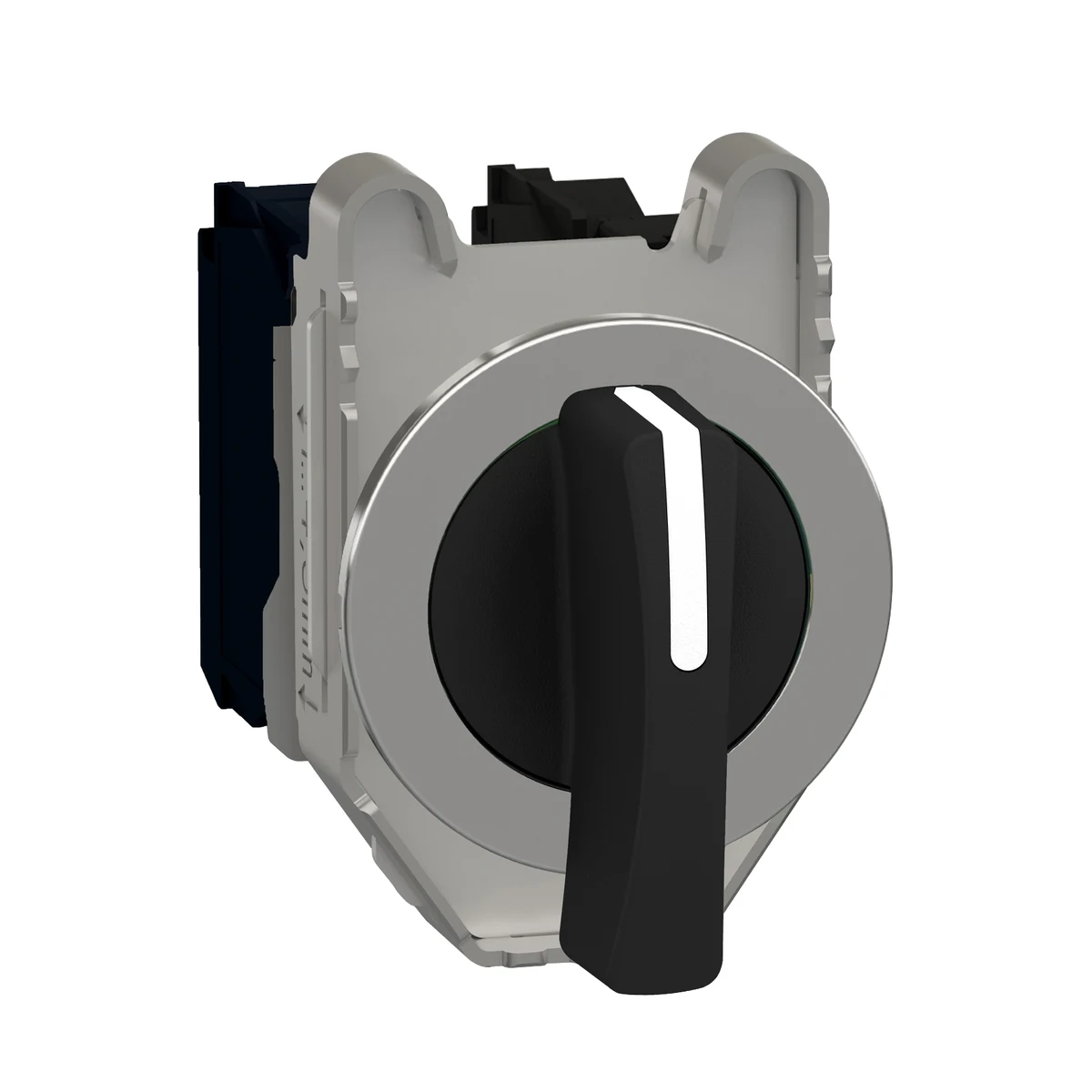

Schneider Electric XB4FJ33 Black, Long Latching Push Button 1 NA+1 NO
- Brand: Schneider Electric
- SKU: XB4FJ33
- MPN: XB4FJ33
- Price: 2307.39 TRY + VAT · incl. VAT 2768.87 TRY
- Availability: Made to order
- Selector Push Buttons
- Schneider Electric Selector Push Buttons
- Selection guide: Selector Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XB4FJ33 Teknik Veri Föyü (PDF)
Schneider Electric XB4FJ33 Black, long latching push button 1 NA+1 NO. Technical specifications of this model: Color: Black Contact Arrangement: 1 NA+1 NO
| Contact Arrangement | 2NO |
|---|---|
| Color | Black |
| Series | Harmony XB4 |
| Product Type | Selektör anahtarı |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Mounting Diameter | 30.5 mm |
| Head Type | Ankastre |
| Signalling Head Shape | Round |
| Operating Mechanism Type | Fixed |
| Operator Profile | Black uzun kol |
| Operator Position Information | 3 konum +/- 45° |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Height | 50 mm |
| Width | 36.6 mm |
| Depth | 70 mm |
| Terminal Designation (ISO) | (13-14)NO; (23-24)NO |
| Product Weight | 0.105 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Device Mounting | Yerleşik |
| Fixing Centres | 40 x 50 mm (1…6 mm ince panel) |
| Fixing Method | Vidalarla |
| Contact Usage | Standart kontaklar |
| Positive Opening | None |
| Operating Torque | 0,14 N.m Elektrik durumu değişimi YOK |
| Mechanical Endurance | 1000000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V ve 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V ve 5 mA temiz ortamda (IEC 60947-5-4) |
| Device Presentation | Angled |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP66 (IEC 60529); IP67 (IEC 60529); IP69 (IEC 60529); IP69K (ISO 20653); Type 13 (UL 50 E); Type 12 (UL 50 E); Type 4 (UL 50 E); Type 4X (UL 50 E) |
| IK Impact Protection | IK04 (IEC 50102) |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1 |
