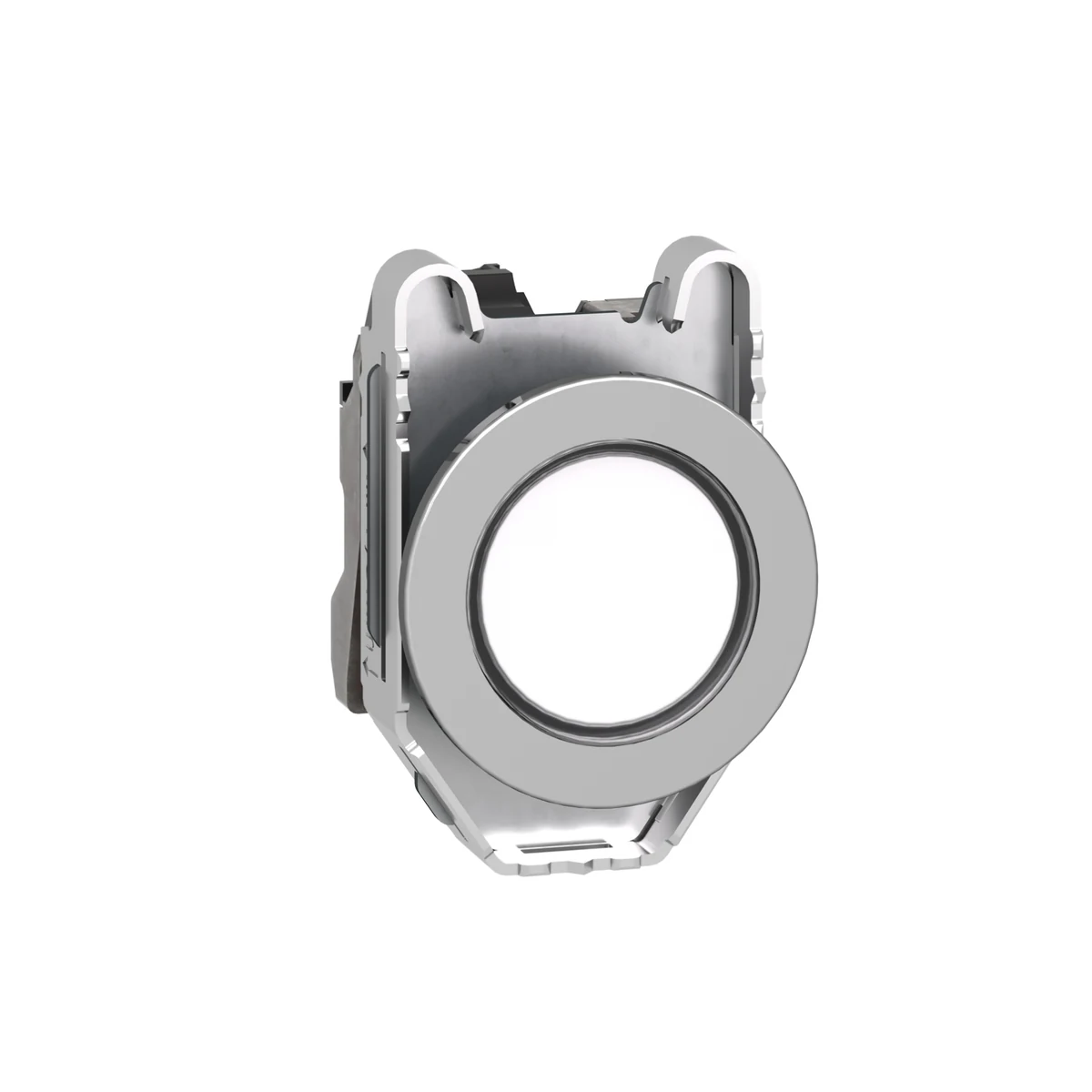

Schneider Electric XB4FVB1 LED Pilot Lights 24 V AC/DC White
- Brand: Schneider Electric
- SKU: XB4FVB1
- MPN: XB4FVB1
- Price: 1706.91 TRY + VAT · incl. VAT 2048.29 TRY
- Availability: Made to order
- Pilot Lights
- Schneider Electric Pilot Lights
- Selection guide: Pilot Light Selection Guide
- Schneider Electric XB4FVB1 Teknik Veri Föyü (PDF)
Schneider Electric XB4FVB1 LED Pilot Lights 24 V AC/DC White. Technical specifications of this model: Color: White
| Color | White |
|---|---|
| Series | Harmony XB4 |
| Product Type | Pilot ışığı |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Head Type | Ankastre |
| Mounting Diameter | 30.5 mm |
| Signalling Head Shape | Round |
| Head / Lens Colour | White |
| Operator Additional Information | Daz lens ile |
| Light Source | Evrensel LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 24 V AC/DC @ 50/60 Hz |
| Product Weight | 0.112 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Device Mounting | Sabitleme deliği - çap: 30,75 mm +/- 0.25 mm |
| Fixing Method | Vidayla |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,22…2 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Signalling Type | Fixed |
| Current Consumption | 18 mA |
| Service Life | 100000 h nominal gerilimde ve 25 °C |
| Surge Immunity | 1 kV (IEC 61000-4-5) |
| Device Presentation | Angled |
| Supply Voltage Limits | 19,2…30 V DC; 21,6…26,4 V AC |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…55 °C |
| Electric Shock Protection Class | Sınıf I (IEC 60536) |
| IP Rating | IP66 (IEC 60529); IP67 (IEC 60529); IP69 (IEC 60529); IP69K (ISO 20653); Type 13 (UL 50 E); Type 12 (UL 50 E); Type 4 (UL 50 E); Type 4X (UL 50 E) |
| IK Impact Protection | IK06 (IEC 50102) |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1 |
| Certifications | UL listeli; CSA; CCC; EAC |
| Vibration Resistance | 5 gn (f= 10…500 Hz) (IEC 60068-2-6); 2 mm, tepeden tepeye (f= 2…10 Hz) (IEC 60068-2-6) |
| Fast Transient Immunity (EFT) | 2 kV (IEC 61000-4-4) |
| Radiated Electromagnetic Field Immunity | 10 V/m (IEC 61000-4-3) |
| Electrostatic Discharge Immunity | 6 kV kontakta (metal parçalarda) (IEC 61000-4-2); 8 kV serbest havada (yalıtım parçalarında) (IEC 61000-4-2) |
| Electromagnetic Emission | Sınıf B (IEC 55011) |
