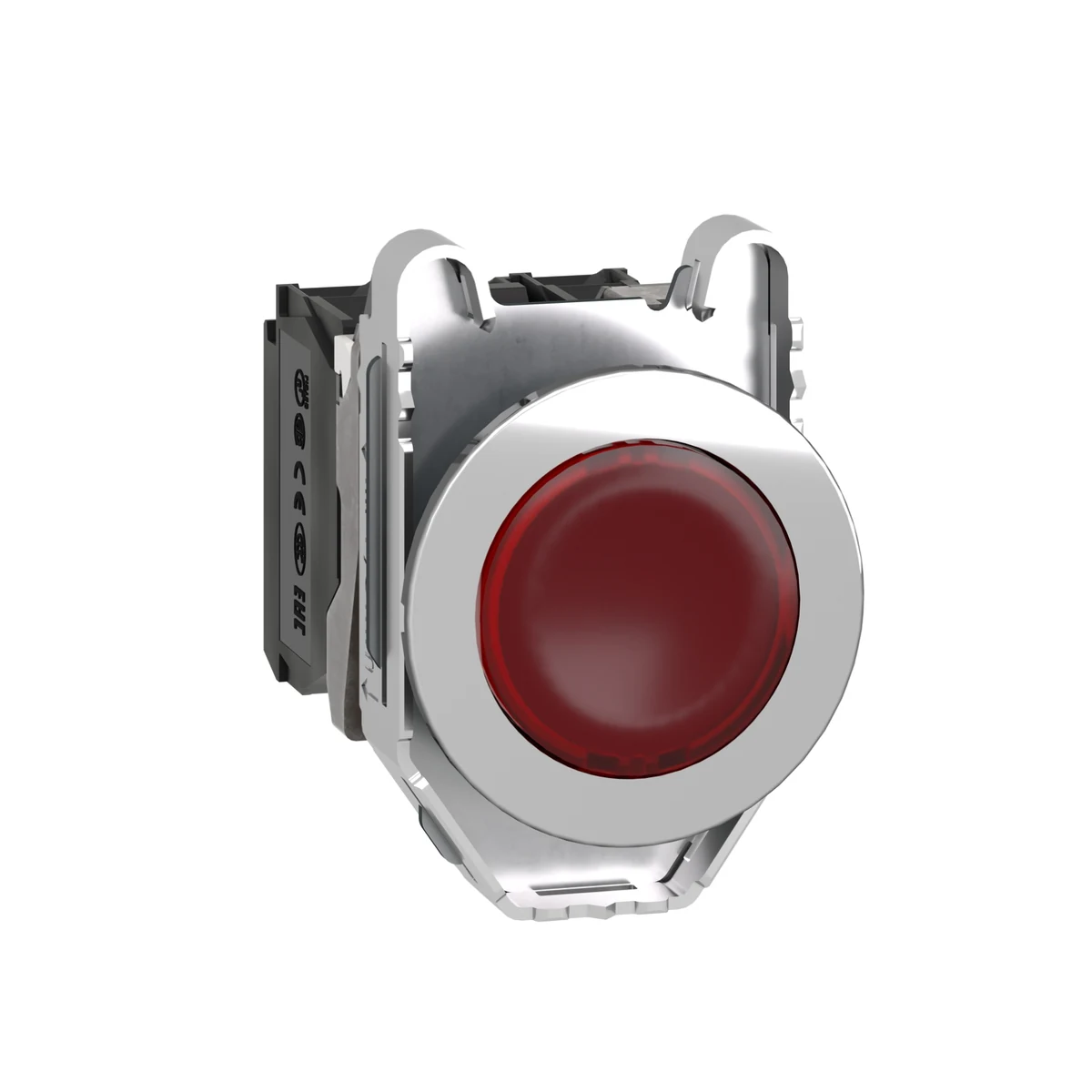

Schneider Electric XB4FW34M5 Illuminated, Momentary push button LED 230 VAC Red 1 NA+1 NC
- Brand: Schneider Electric
- SKU: XB4FW34M5
- MPN: XB4FW34M5
- Price: 2935.66 TRY + VAT · incl. VAT 3522.79 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric XB4FW34M5 Teknik Veri Föyü (PDF)
Schneider Electric XB4FW34M5 Illuminated, Momentary push button LED 230 VAC Red 1 NA+1 NC. Technical specifications of this model: Color: Red Contact Arrangement: 1 NA+1 NC
| Contact Arrangement | 1NO+1NC |
|---|---|
| Color | Red |
| Series | Harmony XB4 |
| Product Type | Işıklı buton |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Mounting Diameter | 30.5 mm |
| Head Type | Ankastre |
| Signalling Head Shape | Round |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Kırmızı sıva altı |
| Operator Additional Information | Daz lens ile |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,22…2 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Light Source | Evrensel LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 230…240 V AC @ 50/60 Hz |
| Height | 47 mm |
| Width | 36.6 mm |
| Depth | 55 mm |
| Terminal Designation (ISO) | (13-14)NO; (21-22)NC |
| Product Weight | 0.132 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Device Mounting | Yerleşik |
| Fixing Method | Vidalarla tavsiye edilen tork: 0,8 N.m |
| Contact Usage | Standart kontaklar |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 1,5 mm (NK değişimi elektrik durumu); 2,6 mm (Elektrik durumu değişimi YOK); 4,3 mm (toplam hareket) |
| Operating Force | 3,5 N NK değişimi elektrik durumu; 3,8 N |
| Mechanical Endurance | 10000000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V ve 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V ve 5 mA temiz ortamda (IEC 60947-5-4) |
| Signalling Type | Fixed |
| Current Consumption | 14 mA |
| Service Life | 100000 h nominal gerilimde ve 25 °C |
