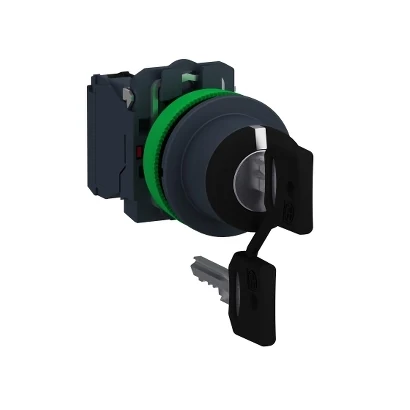

Schneider Electric XB5FG33 Key-operated button White 1 NA+1 NO
- Brand: Schneider Electric
- SKU: XB5FG33
- MPN: XB5FG33
- Price: 3113.58 TRY + VAT · incl. VAT 3736.30 TRY
- Availability: Made to order
- Key-Operated Push Buttons
- Schneider Electric Key-Operated Push Buttons
- Selection guide: Key-Operated Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XB5FG33 Teknik Veri Föyü (PDF)
Schneider Electric XB5FG33 Key-operated button White 1 NA+1 NO. Technical specifications of this model: Color: White Contact Arrangement: 1 NA+1 NO
| Contact Arrangement | 2NO |
|---|---|
| Color | White |
| Series | Harmony XB5 |
| Product Type | Selektör anahtarı |
| Bezel Material | Koyu gri plastik |
| Head Type | Ankastre |
| Mounting Diameter | 30.5 mm |
| Signalling Head Shape | Round |
| Operating Mechanism Type | Fixed |
| Operator Profile | Black anahtar düğmesi, işaretsiz |
| Operator Position Information | 3 konum +/- 45° |
| Key Lock Type | Key 455 |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Height | 42 mm |
| Width | 36.6 mm |
| Depth | 98.5 mm |
| Terminal Designation (ISO) | (13-14)NO; (23-24)NO |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Key Withdrawal Position | Merkez |
| Contact Usage | Standart kontaklar |
| Positive Opening | None |
| Mechanical Endurance | 1000000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V, 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V, 5 mA temiz ortamda (IEC 60947-5-4) |
| Device Presentation | Angled |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| Electric Shock Protection Class | Sınıf II (IEC 60536) |
| IP Rating | IP66 (IEC 60529); IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Impact Protection | IK03 (IEC 50102) |
| Standards | IEC 60947-1; UL 508; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1 |
| Certifications | UL listeli; CSA |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
