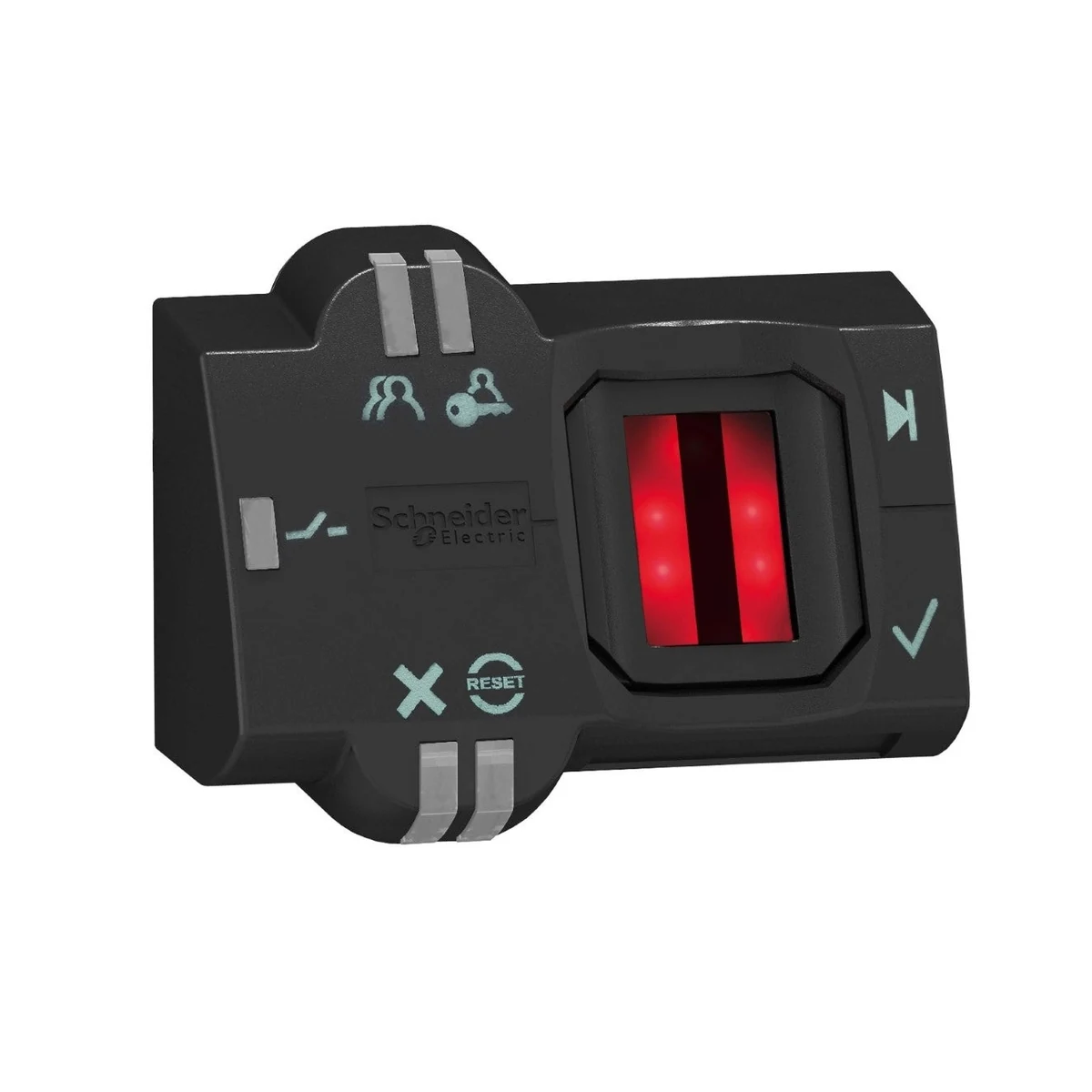

Schneider Electric XB5S1B2L2 Biometric Switch, 2 Maintained
- Brand: Schneider Electric
- SKU: XB5S1B2L2
- MPN: XB5S1B2L2
- Price: 43478.97 TRY + VAT · incl. VAT 52174.76 TRY
- Availability: Made to order
- Push Buttons
- Schneider Electric Push Buttons
- Selection guide: Push Buttons Selection Guide: Technical Criteria and Engineering Practice
Schneider Electric XB5S1B2L2 Biometric Switch, 2 Maintained. Technical specifications of this model: Nominal Operating Ambient Temperature: -5-50 °C Protection type: overload protection, short circuit, reverse polarity Output Type: PNP Product-Specific Application: industrial machines, packaging of materials Short-Circuit Protection: 250 mA external fuse type gG Supply Voltage Limits: 20-30 V DC Operator Position Information: 2 positions Enclosure Material: polyamide PA66 NEMA Protection Rating: NEMA 12 Series: Harmony XB5S Operator Profile: fingerprint reader Memory Usage: 200 users with up to 2 fingerprints per user Maximum Delay Recovery: 1.5 s & 3 s + 0.5 ms per user registered Product Weight: 0.17 kg Storage Environmental Conditions: -25-70 °C Product Type: Harmony XB5S Duty type: fixed Operating Position: horizontal position|flat surface installation|vertical surface installation Product certificates: CSA, UL Mounting Diameter: 22 mm Current Consumption: <= 70 mA no load Marking: CE Rated Supply Voltage: 24 V DC Short Device Name: XB5S Storage Temperature: -25…70 °C Operating Ambient Temperature: -5…50 °C
| Nominal Operating Ambient Temperature | -5-50 °C |
|---|---|
| Protection Type | aşırı load koruması, kısa devre, ters polarite |
| Output Type | PNP |
| Product-Specific Application | endastriyel makineler,malzemelerin ambalajlanması |
| Short-Circuit Protection | 250 mA harici sigorta tip gG |
| Supply Voltage Limits | 20-30 V DC |
| Operator Position Information | 2 konum |
| Enclosure Material | polyamid PA66 |
| NEMA Protection Rating | NEMA 12 |
| Series | HARMONY XB5S |
| Operator Profile | parmak izi okuyucu |
| Memory Usage | kullanıcı başına en fazla 2 parmak izi ile 200 kullanıcı |
| Maximum Delay Recovery | 1.5 s & 3 s + 0.5 ms per user registered |
| Product Weight | 0.17 kg |
| Storage Environmental Conditions | -25-70 °C |
| Product Type | Harmony XB5S |
| Duty Type | Fixed |
| Operating Position | yatay pozisyon|düz yüzey kurulumu|dikey yüzey kurulumu |
| Product Certificates | CSA, UL |
| Mounting Diameter | 22 mm |
| Current Consumption | <= 70 mA yüksüz |
| Marking | CE |
| Rated Supply Voltage | 24 V DC |
| Short Device Name | XB5S |
| Storage Temperature | -25…70 °C |
| Operating Ambient Temperature | -5…50 °C |
