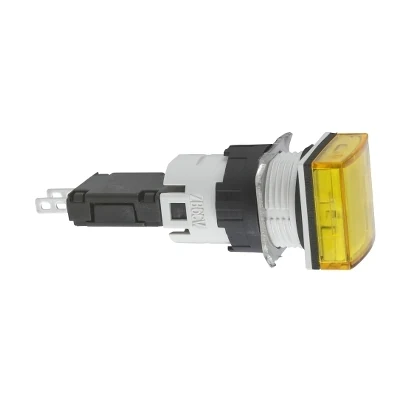

Schneider Electric XB6CV5BB Square Pilot Light Yellow
- Brand: Schneider Electric
- SKU: XB6CV5BB
- MPN: XB6CV5BB
- Price: 1656.87 TRY + VAT · incl. VAT 1988.24 TRY
- Availability: In stock
- Pilot Lights
- Schneider Electric Pilot Lights
- Selection guide: Pilot Light Selection Guide
- Schneider Electric XB6CV5BB Teknik Veri Föyü (PDF)
Schneider Electric XB6CV5BB Square Pilot Light Yellow.
| Series | Harmony XB6 |
|---|---|
| Product Type | Eksiksiz pilot ışığı |
| Bezel Material | Plastic |
| Mounting Diameter | 16 mm |
| Signalling Head Shape | Kare |
| Head / Lens Colour | Yellow |
| Light Source | LED |
| Lamp Holder Type | Entegre LED |
| Light Block Supply Type | Doğrudan |
| Rated Control Supply Voltage (Us) | 12…24 V AC/DC |
| Height | 18 mm |
| Width | 18 mm |
| Depth | 57 mm |
| Terminal Designation (ISO) | (+ -)PL |
| Product Weight | 0.015 kg |
| Operating Position | Herhangi bir konum |
| Connection Terminals | Faston konnektörler 2,8 x 0,5 mm |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 2) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Signalling Type | Fixed |
| Supply Voltage Limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge Immunity | 1 kV doğrudan kontak (IEC 61000-4-5); 2 kV serbest havada (IEC 61000-4-5) |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Electric Shock Protection Class | Sınıf II (IEC 61140) |
| IP Rating | IP65 |
| NEMA protection rating | NEMA 13 (UL 50); NEMA 4 (UL 50); NEMA 4X (UL 50); NEMA 13 (CSA C22.2 No 94); NEMA 4 (CSA C22.2 No 94); NEMA 4X (CSA C22.2 No 94) |
| Standards | JIS C8201-5-1; IEC 60947-5-5; IEC 60947-1; UL 508; JIS C 852; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1 |
| Certifications | CSA; UL; GOST; CCC |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
| Fast Transient Immunity (EFT) | 2 kV (IEC 61000-4-4) |
| Radiated Electromagnetic Field Immunity | 10 V/m (IEC 61000-4-3) |
| Electrostatic Discharge Immunity | 6 kV kontakta (metal parçalarda) (IEC 61000-4-2); 8 kV serbest havada (yalıtım parçalarında) (IEC 61000-4-2) |
| Electromagnetic Emission | Sınıf B (IEC 55011) |
