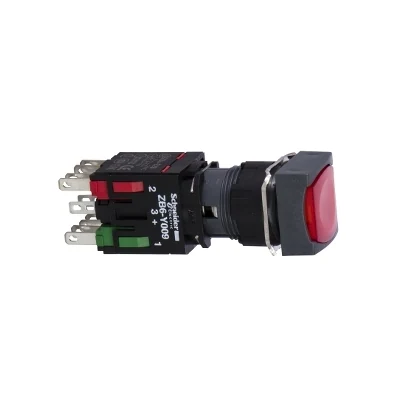

Schneider Electric XB6CW4B2B Square Illuminated Push Button Red NC
- Brand: Schneider Electric
- SKU: XB6CW4B2B
- MPN: XB6CW4B2B
- Price: 2279.59 TRY + VAT · incl. VAT 2735.51 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric XB6CW4B2B Teknik Veri Föyü (PDF)
Schneider Electric XB6CW4B2B Square Illuminated Push Button Red NC.
| Series | Harmony XB6 |
|---|---|
| Product Type | Eksiksiz ışıklı basmalı düğme |
| Bezel Material | Plastic |
| Mounting Diameter | 16 mm |
| Signalling Head Shape | Kare |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Kırmızı sıva altı, işaretsiz |
| Contact Arrangement | 1NC |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Faston konnektörler 2,8 x 0,5 mm |
| Light Source | LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 12…24 V AC/DC |
| Terminal Designation (ISO) | (21-22)NC |
| Product Weight | 0.022 kg |
| Operating Position | Herhangi bir konum |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 2 mm (NK değişimi elektrik durumu); 3,5 mm (toplam hareket) |
| Operating Force | 4,5 N NK değişimi elektrik durumu |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 6 A kartuş sigortası tip gG |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ = 10exp(-8) @ 5 V ve 1 mA %90 güven düzeyiyle (IEC 60947-5-4) |
| Signalling Type | Fixed |
| Supply Voltage Limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge Immunity | 1 kV doğrudan kontak (IEC 61000-4-5); 2 kV serbest havada (IEC 61000-4-5) |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Electric Shock Protection Class | Sınıf II (IEC 61140) |
| IP Rating | IP65 |
| NEMA protection rating | NEMA 13 (UL 50); NEMA 4 (UL 50); NEMA 4X (UL 50); NEMA 13 (CSA C22.2 No 94); NEMA 4 (CSA C22.2 No 94); NEMA 4X (CSA C22.2 No 94) |
| Standards | IEC 60947-5-1; JIS C 4520; CSA C22.2 No 14; IEC 60947-5-5; JIS C 852; IEC 60947-1 |
| Certifications | CSA; GOST; UL; CCC |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
| Fast Transient Immunity (EFT) | 2 kV (IEC 61000-4-4) |
| Radiated Electromagnetic Field Immunity | 10 V/m (IEC 61000-4-3) |
| Electrostatic Discharge Immunity | 6 kV kontakta (metal parçalarda) (IEC 61000-4-2); 8 kV serbest havada (yalıtım parçalarında) (IEC 61000-4-2) |
| Electromagnetic Emission | Sınıf B (IEC 55011) |
